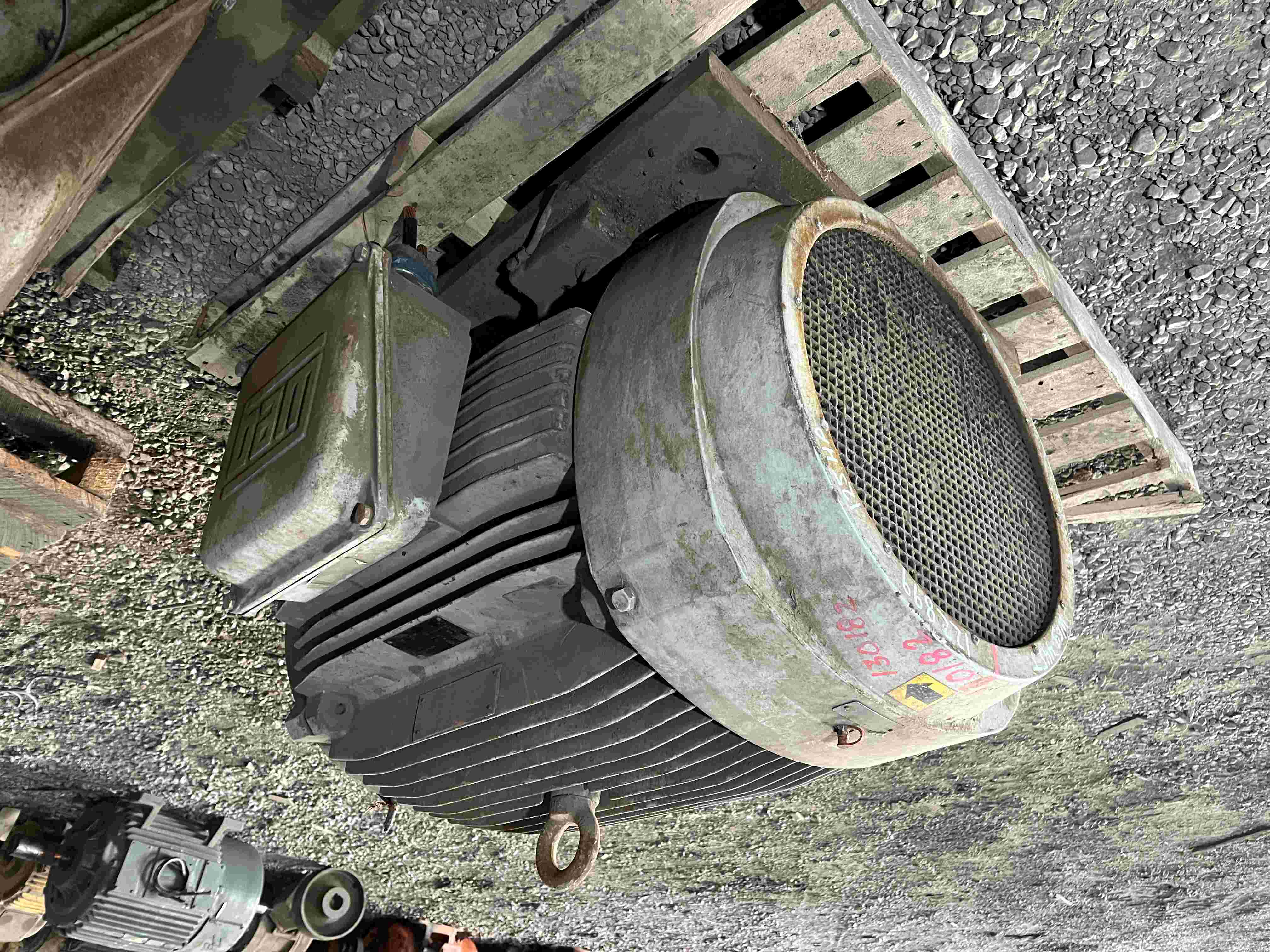

125 HP, 1185 RPM, 460V, WEG ELECTRIC, 445T, INDUCTION AC MOTOR

INVENTORY ID	12290700000
TITLE	125 HP, 1185 RPM, 460V, WEG ELECTRIC, 445T, INDUCTION AC MOTOR
HORSEPOWER	125
SPEED NAMEPLATE	1185
VOLTAGE	460
VOLTAGE 2	208/230
MANUFACTURER	WEG ELECTRIC
FRAME	445T
ENCLOSURE	TEFC
SHAFT	SESS
DESIGN	N/A
CODE	J
TYPE	ET
INSULATION CLASS	F
BEARINGS	A/F
SERVICE FACTOR	1.15
PHASE	3
FREQUENCY	60
AMPERAGE	269 AMPS @ 208-230V / 148 AMPS @ 460V
SERIAL NUMBER OR ID NUMBER	N/A
MODEL NUMBER OR STYLE NUMBER	BLN-125-12-445T
WEIGHT	1600
DUTY	CONT
TEMPERATURE RISE	90
CAST IRON FRAME	YES
CAST ALUM FRAME	NO
LEADS FACING DRIVE END	LEFT
SHAFT HEIGHT	11"
DRIVE SHAFT DIAMETER	3 3/8"
DRIVE SHAFT LENGTH	8 1/4"
BRAKE SHAFT DIAMETER	N/A
BRAKE SHAFT LENGTH	N/A
