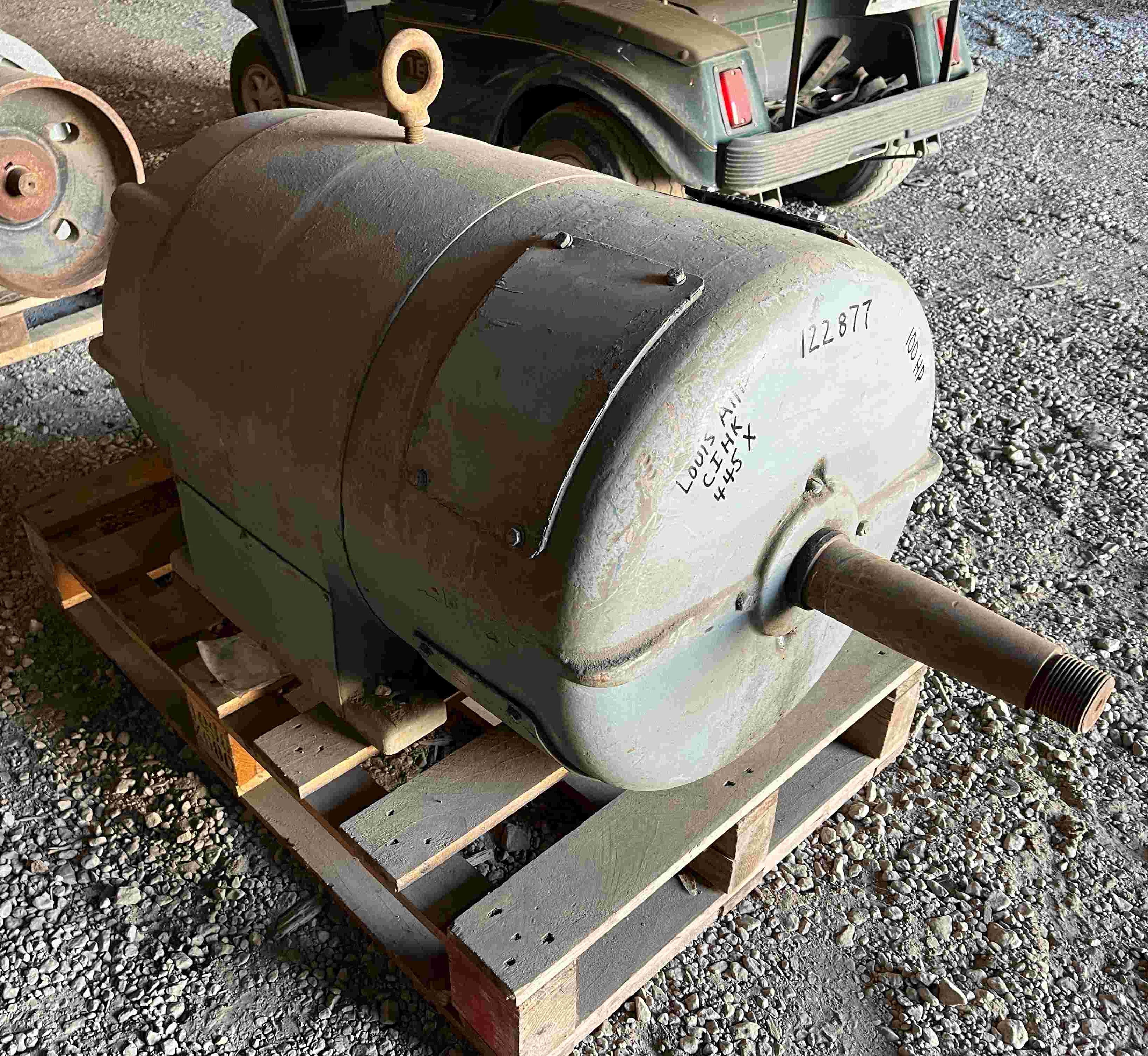

100 HP, 1160 RPM, 440V, LOUIS ALLIS, 445X, AC SLIP RING CRANE MOTOR
 "12287700000 100 HP, 1160 RPM, 440V, LOUIS ALLIS, 445X, AC SLIP RING CRANE MOTOR")
 "12287700000 100 HP, 1160 RPM, 440V, LOUIS ALLIS, 445X, AC SLIP RING CRANE MOTOR")
| INVENTORY ID | 12287700000 |
| TITLE | 100 HP, 1160 RPM, 440V, LOUIS ALLIS, 445X, AC SLIP RING CRANE MOTOR |
| HORSEPOWER | 100 |
| SPEED | 1160 |
| STATOR VOLTAGE 1 | 220 |
| STATOR VOLTAGE 2 | 440 |
| MANUFACTURER | LOUIS ALLIS |
| TYPE | CIHK |
| FRAME | 445X |
| SHAFT HEIGHT | 10" |
| ROTOR AMPS | 170 |
| ROTOR VOLTS | 275 |
| SHAFT EXTENSION | ITIS |
| ENCLOSURE | TENV |
| STATOR AMPS | 254 / 127 |
| BEARINGS | A/F |
| MODEL NUMBER OR STYLE NUMBER | N/A |
| SERIAL NUMBER OR ID NUMBER | 6263422001 |
| PHASE | 3 |
| DUTY (MINUTES) | 60 |
| DEGREE OF TEMPERATURE RISE | 75 |
| WEIGHT | 1,250 |
| YEAR OF MANUFACTURE | N/A |
| DRIVE SHAFT DIAMETER | 3 3/8" |
| DRIVE SHAFT LENGTH | 5 1/4" |
| BRAKE SHAFT DIAMETER | 2 5/8" |
| BRAKE SHAFT LENGTH | 4 1/8" |
| OVERALL LENGTH | 49 1/4" |
| FRONT BOLT HOLE TO SHAFT | 7 1/2" |
| WIDTH BETWEEN FEET | 18" |
| LENGTH BETWEEN FEET | 12 1/5" |
