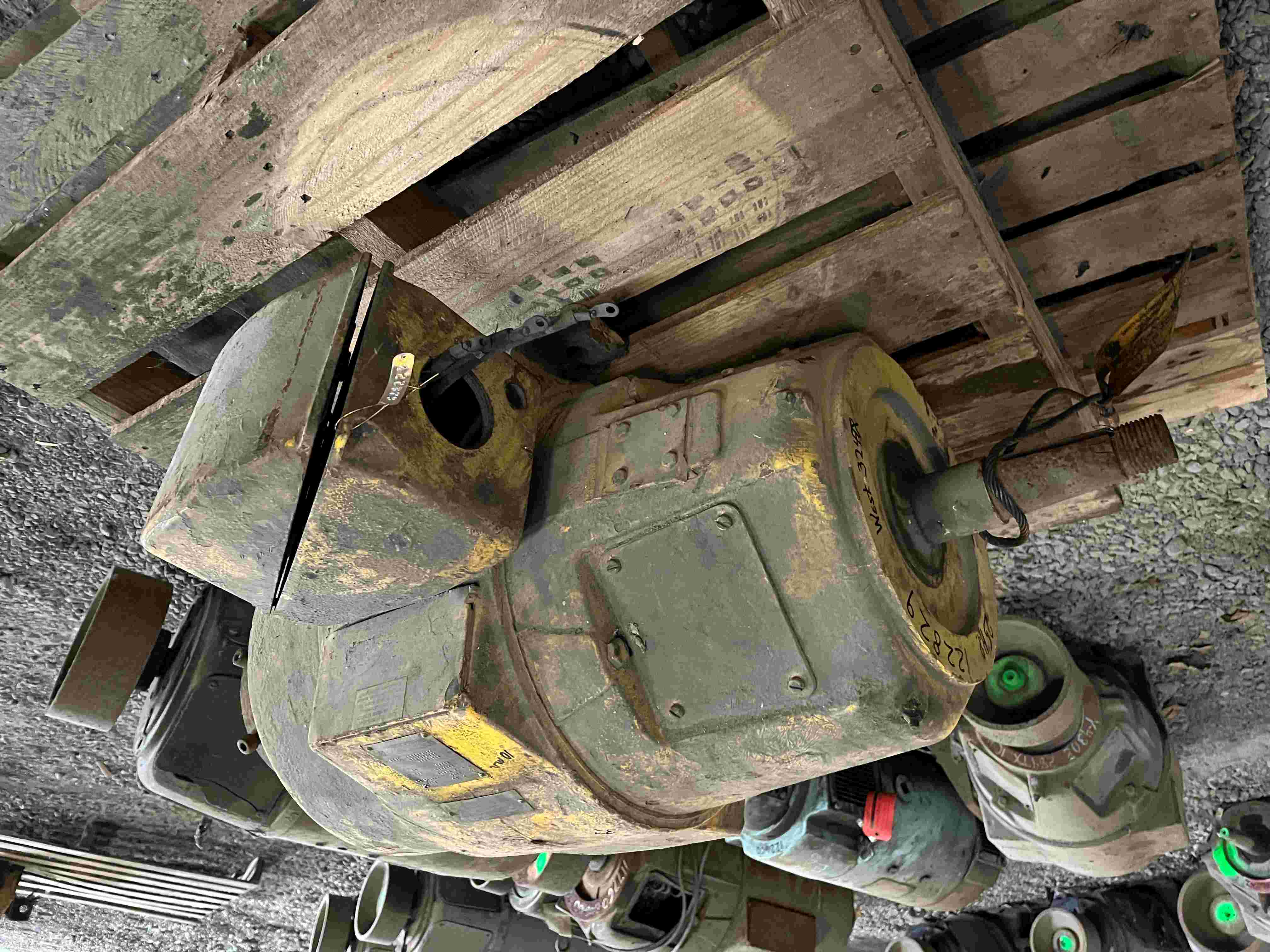

25 HP, 1155 RPM, 230 VOLT, WESTINGHOUSE, 324, AC SLIP RING MOTOR
 "12282900000 25 HP, 1155 RPM, 230 VOLT, WESTINGHOUSE, 324, AC SLIP RING MOTOR")
 "12282900000 25 HP, 1155 RPM, 230 VOLT, WESTINGHOUSE, 324, AC SLIP RING MOTOR")
 "12282900000 25 HP, 1155 RPM, 230 VOLT, WESTINGHOUSE, 324, AC SLIP RING MOTOR")
| INVENTORY ID | 12282900000 |
| TITLE | 25 HP, 1155 RPM, 230 VOLT, WESTINGHOUSE, 324, AC SLIP RING MOTOR |
| HORSEPOWER | 25 |
| SPEED | 1135 RPM |
| STATOR VOLTAGE 1 | 230 |
| STATOR VOLTAGE 2 | 460 |
| MANUFACTURER | WESTINGHOUSE |
| FRAME | 324TX |
| ROTOR AMPS | 66/33 |
| ROTOR VOLTS | 220 |
| SHAFT EXTENSION | 1T1S |
| ENCLOSURE | TENV |
| STATOR AMPS | 60 |
| BEARINGS | A/F |
| MODEL NUMBER OR STYLE NUMBER | THNV |
| SERIAL NUMBER OR ID NUMBER | 8006 |
| PHASE | 3 |
| DUTY (MINUTES) | 30 |
| DEGREE OF TEMPERATURE RISE | 40 |
| WEIGHT | 495 |
| DRIVE SHAFT DIAMETER | 2 1/8" |
| DRIVE SHAFT LENGTH | 4 1/4" |
| BRAKE SHAFT DIAMETER | 1 7/8" |
| BRAKE SHAFT LENGTH | 6 1/2" |
| OVERALL LENGTH | 37 1/2" |
| FRONT BOLT HOLE TO SHAFT | 7" |
| WIDTH BETWEEN FEET | 12 1/2" |
| LENGTH BETWEEN FEET | 10 1/2" |
