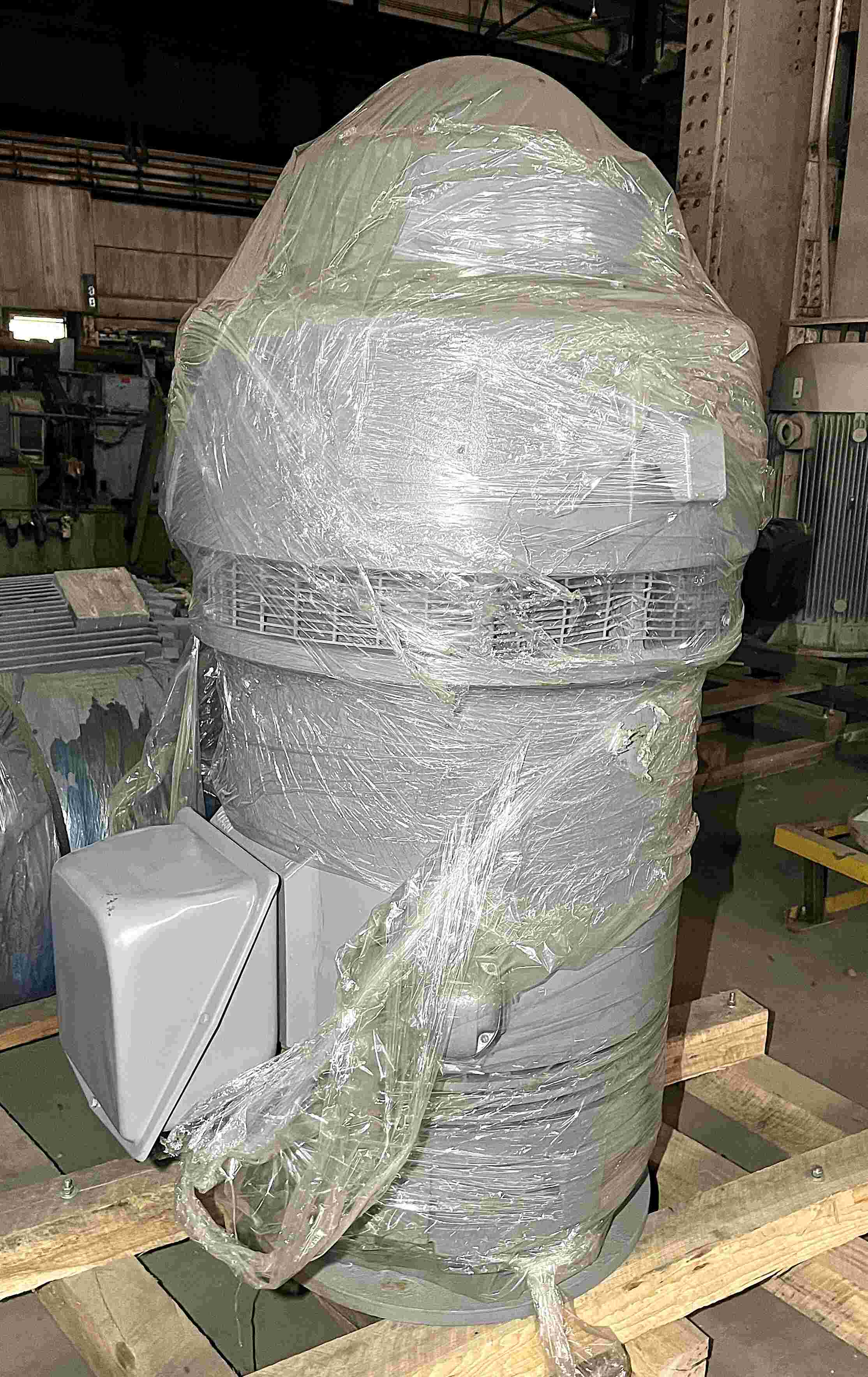

350 HP, 1780 RPM, 2300 VOLT, US MOTORS, 5008P, AC VERTICAL PUMP MOTOR WITH HOLLOW SHAFT WITH RATCHET (R)
 "12266500000 350 HP, 1780 RPM, 2300 VOLT, US MOTORS, 5008P, AC VERTICAL PUMP MOTOR WITH HOLLOW SHAFT WITH RATCHET (R)")
 "12266500000 350 HP, 1780 RPM, 2300 VOLT, US MOTORS, 5008P, AC VERTICAL PUMP MOTOR WITH HOLLOW SHAFT WITH RATCHET (R)")
| INVENTORY ID | 12266500000 |
| TITLE | 350 HP, 1780 RPM, 2300 VOLT, US MOTORS, 5008P, AC VERTICAL PUMP MOTOR WITH HOLLOW SHAFT WITH RATCHET (R) |
| HP | 350 |
| RPM | 1780 |
| VOLTAGE 1 | 2300 |
| MANUFACTURER | US MOTORS |
| FRAME | 5008P |
| ENCLOSURE | TEFC |
| SHAFT TYPE | HOLLOW WITH RACHET |
| DESIGN | B |
| CODE | G |
| TYPE | HV |
| UPPER BEARINGS | 7226NG - QTY 3 |
| LOWER BEARINGS | 62190-J |
| THRUST | HIGH |
| SERVICE FACTOR | 1.15 |
| PHASE | 3 |
| HERTZ | 60 |
| AMPS | CK340088 |
| SERIAL/ID NUMBER | CK340088 |
| MODEL/STYLE NUMBER | 851185-139 |
| WEIGHT | 3,000 |
| DUTY | CONT |
| DEGREE TEMP RISE | 40 |
| FLANGE DIAMETER | 24" |
| DIAMETER CTR TO CTR | 15" |
| DIAMETER OF HOLE | 2 3/4" |
| DRIVE SHAFT DIAMETER | 2" |
| DRIVE SHAFT LENGTH | ---- |
