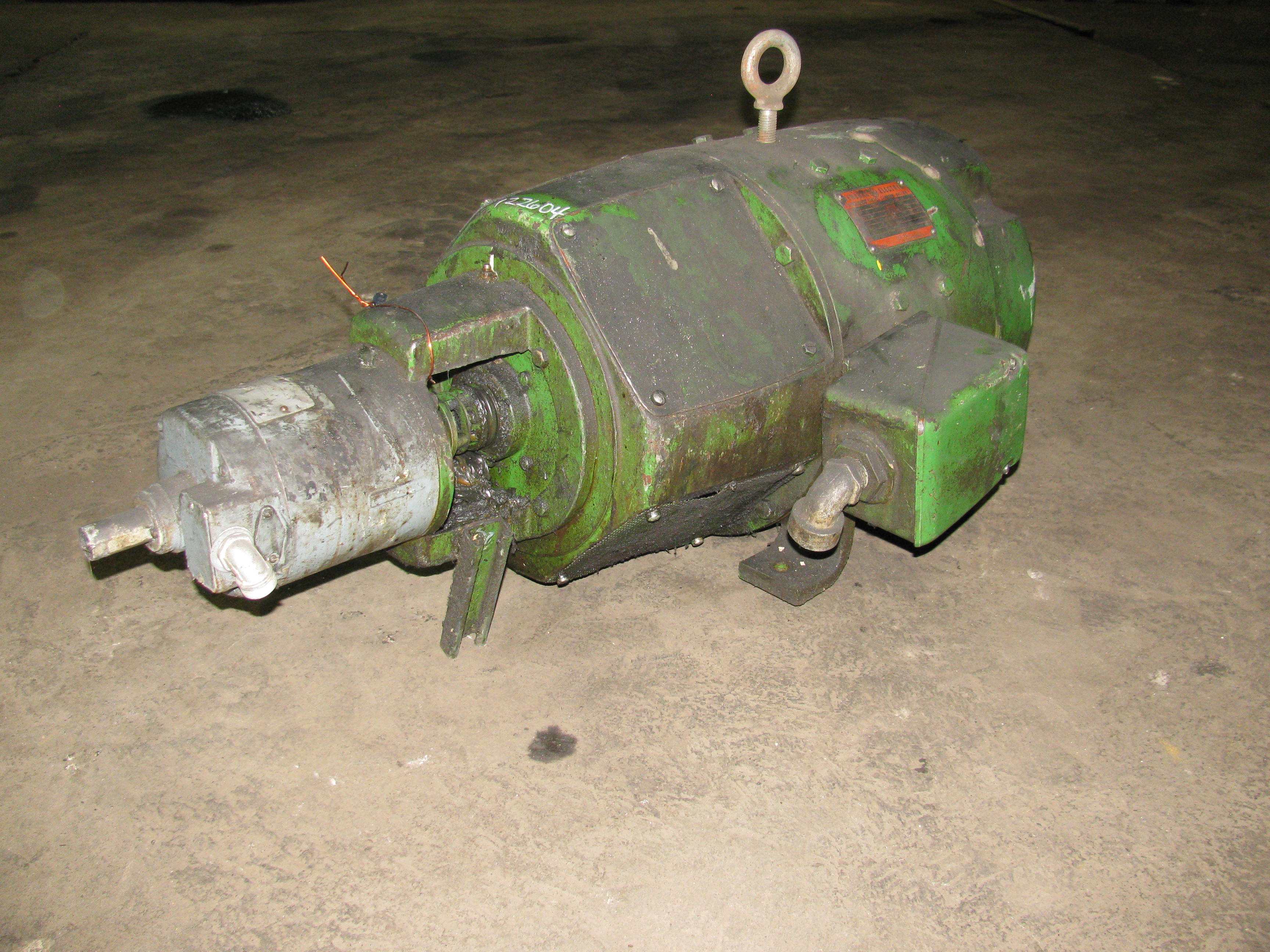

QTY (2) 20 HP, 2500 RPM, 480 VOLT, GENERAL ELECTRIC, 326E, SHUNT, USED DC MOTOR
 "12260400000 QTY (2) 20 HP, 2500 RPM, 480 VOLT, GENERAL ELECTRIC, 326E, SHUNT, USED DC MOTOR")
 "12260400000 QTY (2) 20 HP, 2500 RPM, 480 VOLT, GENERAL ELECTRIC, 326E, SHUNT, USED DC MOTOR")
| INVENTORY ID | 12260400000 |
| TITLE | QTY (2) 20 HP, 2500 RPM, 480 VOLT, GENERAL ELECTRIC, 326E, SHUNT, USED DC MOTOR |
| HORSEPOWER | 20 |
| SPEED | 2500 |
| VOLTAGE | 480 |
| MANUFACTURER | GENERAL ELECTRIC |
| FRAME | 326E |
| TYPE | CD |
| WINDING | SHUNT |
| ENCLOSURE | DPFG |
| SHAFT | SESS W/TACH |
| AMPERAGE | 37 |
| DUTY | CONT |
| BEARINGS | A/F |
| YEAR OF MANUFACTURE | N/A |
| FIELD VOLTAGE | N/A |
| FIELD AMPERAGE | 1.23 |
| FIELD RESISTANCE | 2.5 |
| DEGREE OF TEMPERATURE RISE | 25 DEGREES |
| SERIAL NUMBER OR ID NUMBER | BC1-270 |
| MODEL NUMBER OR STYLE NUMBER | 5CD326E678 |
| SERVICE FACTOR | 1.15 |
| INSULATION CLASS | N/A |
| POWER SUPPLY CODE | N/A |
| WEIGHT | 555 |
| DRIVE SHAFT DIMENSION | 2 5/8" |
| DRIVE SHAFT LENGTH | 3" |
| SHAFT HEIGHT | 8" |
| MOTOR LENGTH | 31" |
| WIDTH BETWEEN FEET | 12" |
| LENGTH BETWEEN FEET | 12 1/2" |
