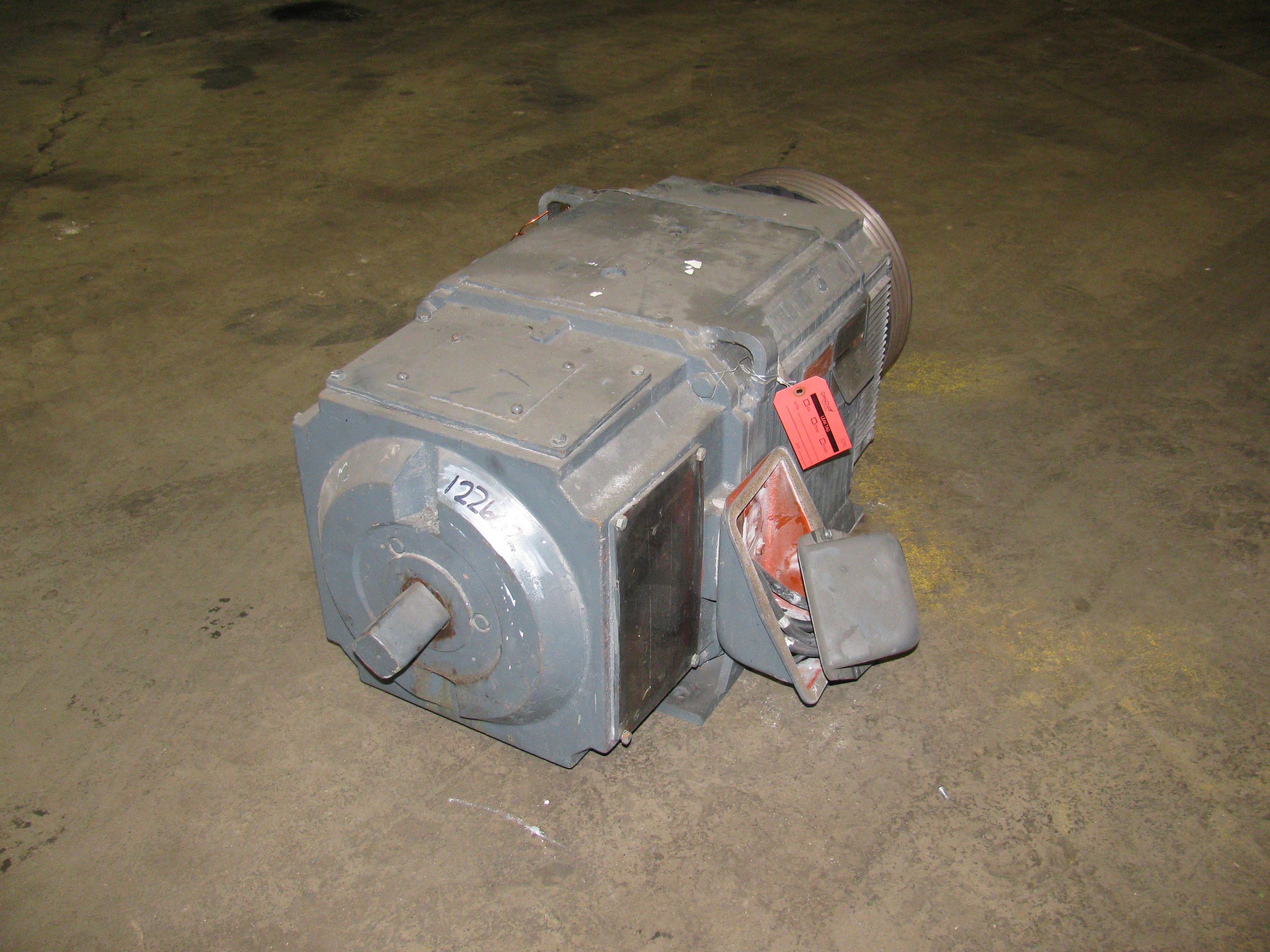

100 HP, 1750 RPM, 500 VOLT, RELIANCE, 368ATZ, STAB SHUNT, USED DC MOTOR
 "12260200000 100 HP, 1750 RPM, 500 VOLT, RELIANCE, 368ATZ, STAB SHUNT, USED DC MOTOR")
 "12260200000 100 HP, 1750 RPM, 500 VOLT, RELIANCE, 368ATZ, STAB SHUNT, USED DC MOTOR")
| INVENTORY ID | 12260200000 |
| TITLE | 100 HP, 1750 RPM, 500 VOLT, RELIANCE, 368ATZ, STAB SHUNT, USED DC MOTOR |
| HORSEPOWER | 100 |
| SPEED | 1750 |
| SPEED 2 | 2000 |
| VOLTAGE | 500 |
| MANUFACTURER | RELIANCE |
| FRAME | 368ATZ |
| TYPE | CD |
| WINDING | STAB SHUNT |
| ENCLOSURE | TEFV |
| SHAFT | SESS |
| AMPERAGE | 164 |
| DUTY | CONT |
| BEARINGS | A/F |
| YEAR OF MANUFACTURE | N/A |
| FIELD VOLTAGE | 300 |
| FIELD AMPERAGE | 2.46 |
| FIELD RESISTANCE | 1.75 / 1.08 |
| DEGREE OF TEMPERATURE RISE | 40 DEGREES |
| SERIAL NUMBER OR ID NUMBER | L284877T1NC |
| MODEL NUMBER OR STYLE NUMBER | N/A |
| SERVICE FACTOR | N/A |
| INSULATION CLASS | P |
| POWER SUPPLY CODE | C |
| WEIGHT | 1,230 |
| DRIVE SHAFT DIMENSION | 2 5/8" |
| DRIVE SHAFT LENGTH | 5" |
| SHAFT HEIGHT | 37" |
| MOTOR LENGTH | 9" |
| WIDTH BETWEEN FEET | 14" |
| LENGTH BETWEEN FEET | 18" |
