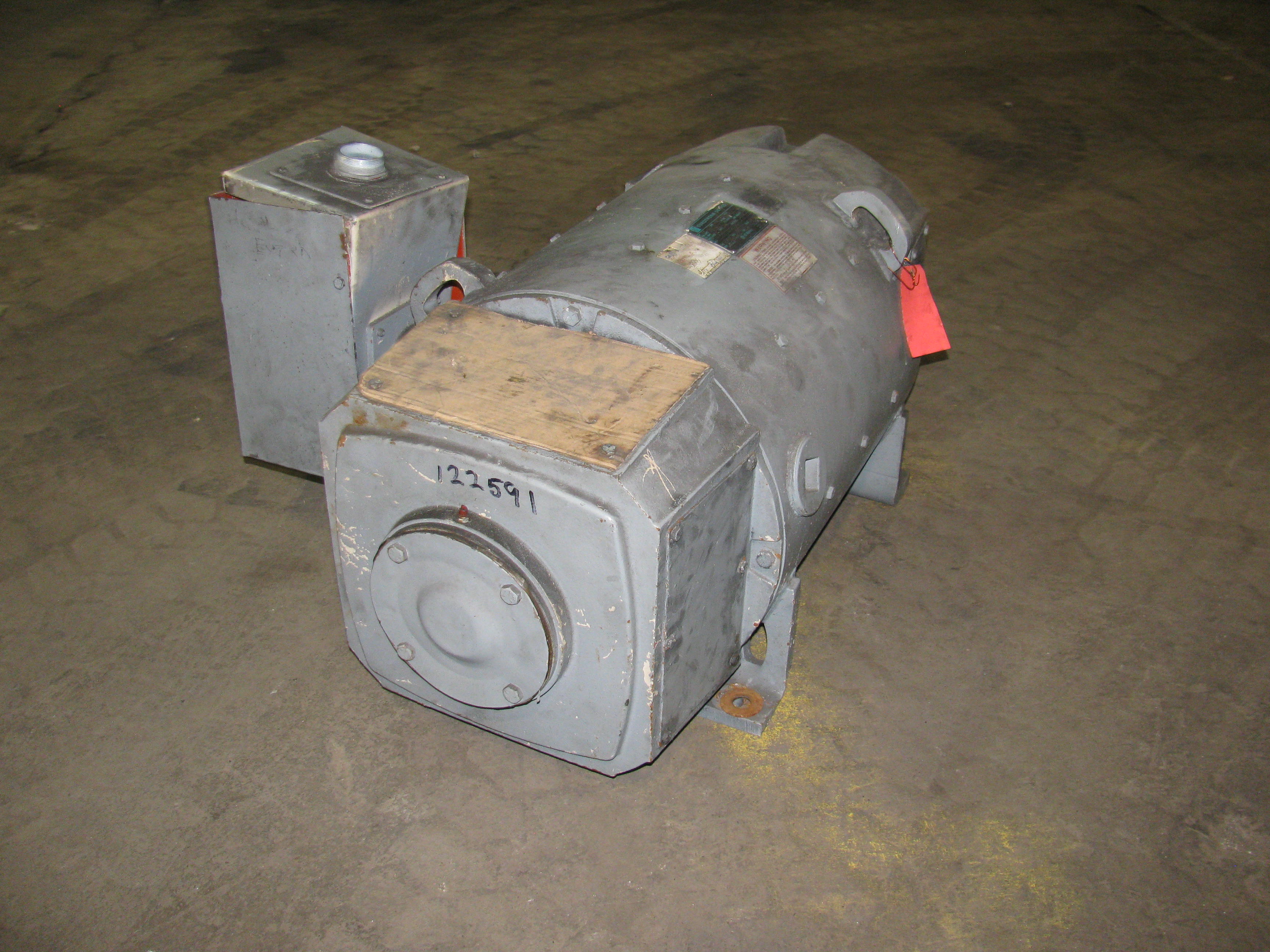

100 HP, 1150/2000 RPM, 500 VOLT, GENERAL ELECTRIC, 409AT, SHUNT, USED DC MOTOR
 "12259100000 100 HP, 1150/2000 RPM, 500 VOLT, GENERAL ELECTRIC, 409AT, SHUNT, USED DC MOTOR")
 "12259100000 100 HP, 1150/2000 RPM, 500 VOLT, GENERAL ELECTRIC, 409AT, SHUNT, USED DC MOTOR")

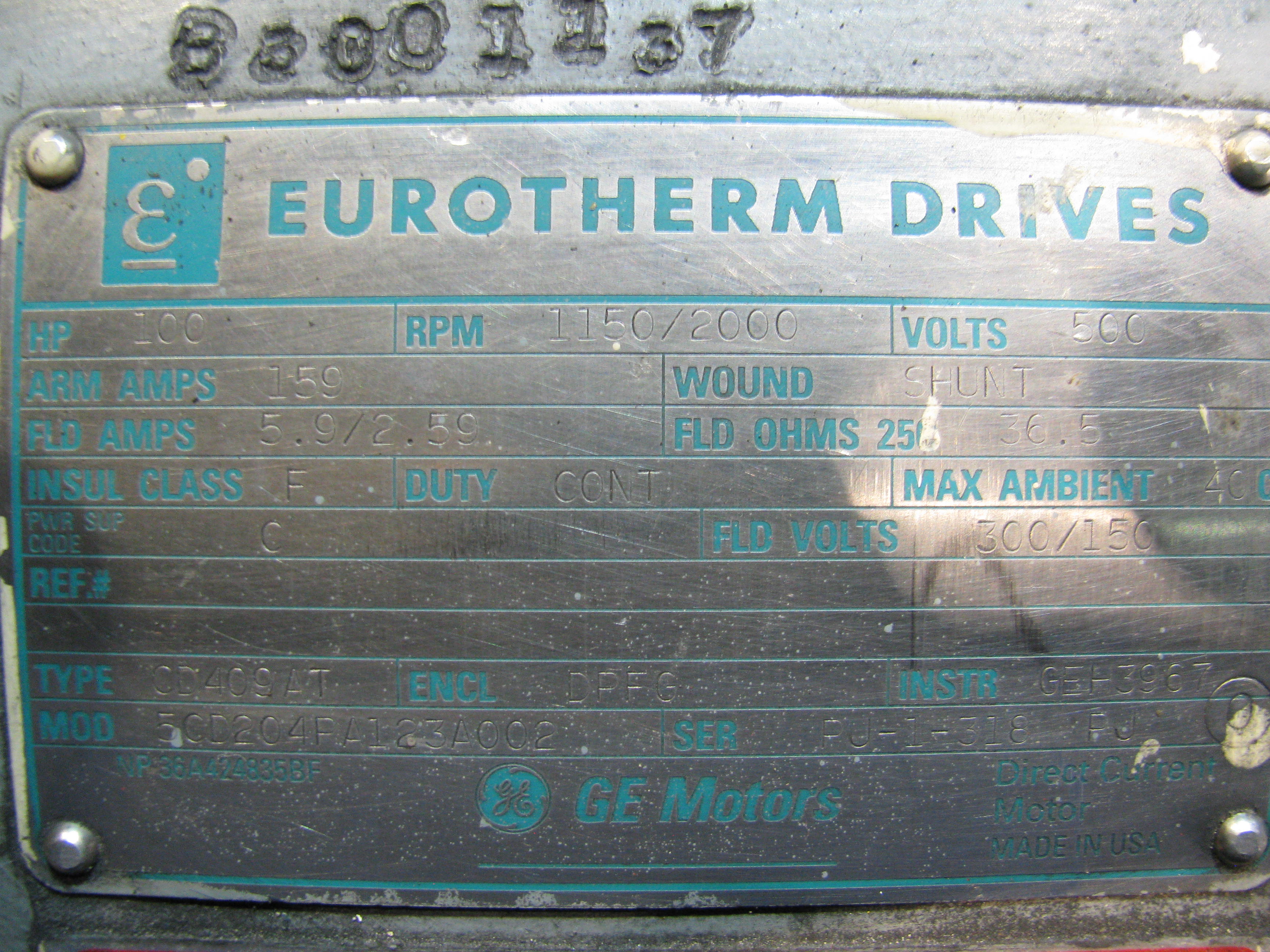

| INVENTORY ID | 12259100000 |
| TITLE | 100 HP, 1150/2000 RPM, 500 VOLT, GENERAL ELECTRIC, 409AT, SHUNT, USED DC MOTOR |
| HORSEPOWER | 100 |
| SPEED | 1150 |
| SPEED 2 | 2000 |
| VOLTAGE | 500 |
| MANUFACTURER | GENERAL ELECTRIC |
| FRAME | 409AT |
| TYPE | CD |
| WINDING | SHUNT |
| ENCLOSURE | DPFC |
| SHAFT | SESS |
| AMPERAGE | 159 |
| DUTY | CONT |
| BEARINGS | A/F |
| YEAR OF MANUFACTURE | N/A |
| FIELD VOLTAGE | 300/150 |
| FIELD AMPERAGE | 5.9/2.59 |
| FIELD RESISTANCE | 38.4 |
| DEGREE OF TEMPERATURE RISE | 25 DEGREES |
| SERIAL NUMBER OR ID NUMBER | PJ-1-318PJ |
| MODEL NUMBER OR STYLE NUMBER | 5CD2C4PA123A002 |
| SERVICE FACTOR | N/A |
| INSULATION CLASS | F |
| POWER SUPPLY CODE | C |
| WEIGHT | 1,625 |
| DRIVE SHAFT DIMENSION | 3 5/8" |
| DRIVE SHAFT LENGTH | 5 1/4" |
| SHAFT HEIGHT | 10" |
| MOTOR LENGTH | 44" |
| WIDTH BETWEEN FEET | 16" |
| LENGTH BETWEEN FEET | 22" |
