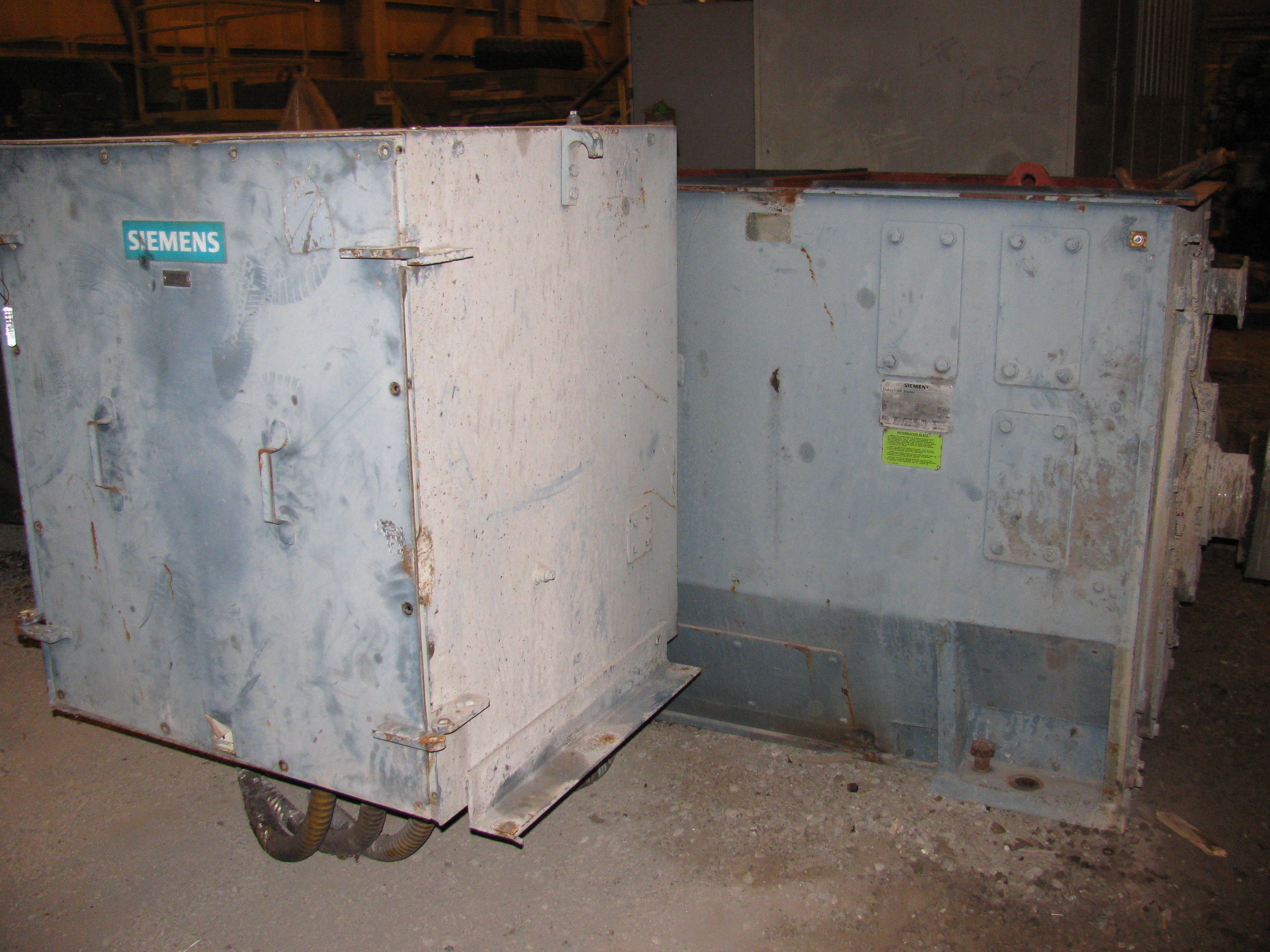

3500 HP (2800 KW), 715 RPM, 579V, SIEMENS, 636S, INVERTER MOTOR
 "12257900100 3500 HP (2800 KW), 715 RPM, 579V, SIEMENS, 636S, INVERTER MOTOR")
 "12257900100 3500 HP (2800 KW), 715 RPM, 579V, SIEMENS, 636S, INVERTER MOTOR")
 "12257900100 3500 HP (2800 KW), 715 RPM, 579V, SIEMENS, 636S, INVERTER MOTOR")
 "12257900100 3500 HP (2800 KW), 715 RPM, 579V, SIEMENS, 636S, INVERTER MOTOR")
| INVENTORY ID | 12257900100 |
| TITLE | 3500 HP (2800 KW), 715 RPM, 579V, SIEMENS, 636S, INVERTER MOTOR |
| HORSEPOWER | 3500 (2800 KW) |
| SPEED | 715 |
| VOLTAGE | 579 |
| MANUFACTURER | SIEMENS |
| FRAME | 636S |
| ENCLOSURE | TE |
| SHAFT | DESS |
| DESIGN | N/A |
| CODE | J |
| TYPE | CAZBB |
| INSULATION CLASS | F-VPI |
| BEARINGS | A/F |
| SERVICE FACTOR | 1.00 |
| PHASE | 3 |
| FREQUENCY | 60 |
| AMPERAGE | 1597 |
| SERIAL NUMBER OR ID NUMBER | 8002985582-30 |
| WEIGHT | 31,670 |
| DUTY | CONT |
| TEMPERATURE RISE | 40 |
| CAST IRON FRAME | YES |
| CAST ALUM FRAME | NO |
| LEADS FACING DRIVE END | RIGHT |
| SHAFT HEIGHT | 25" |
| DRIVE SHAFT DIAMETER | 8 3/4" |
| DRIVE SHAFT LENGTH | 12" |
| BRAKE SHAFT DIAMETER | 4 3/8" |
| BRAKE SHAFT LENGTH | 8" |
