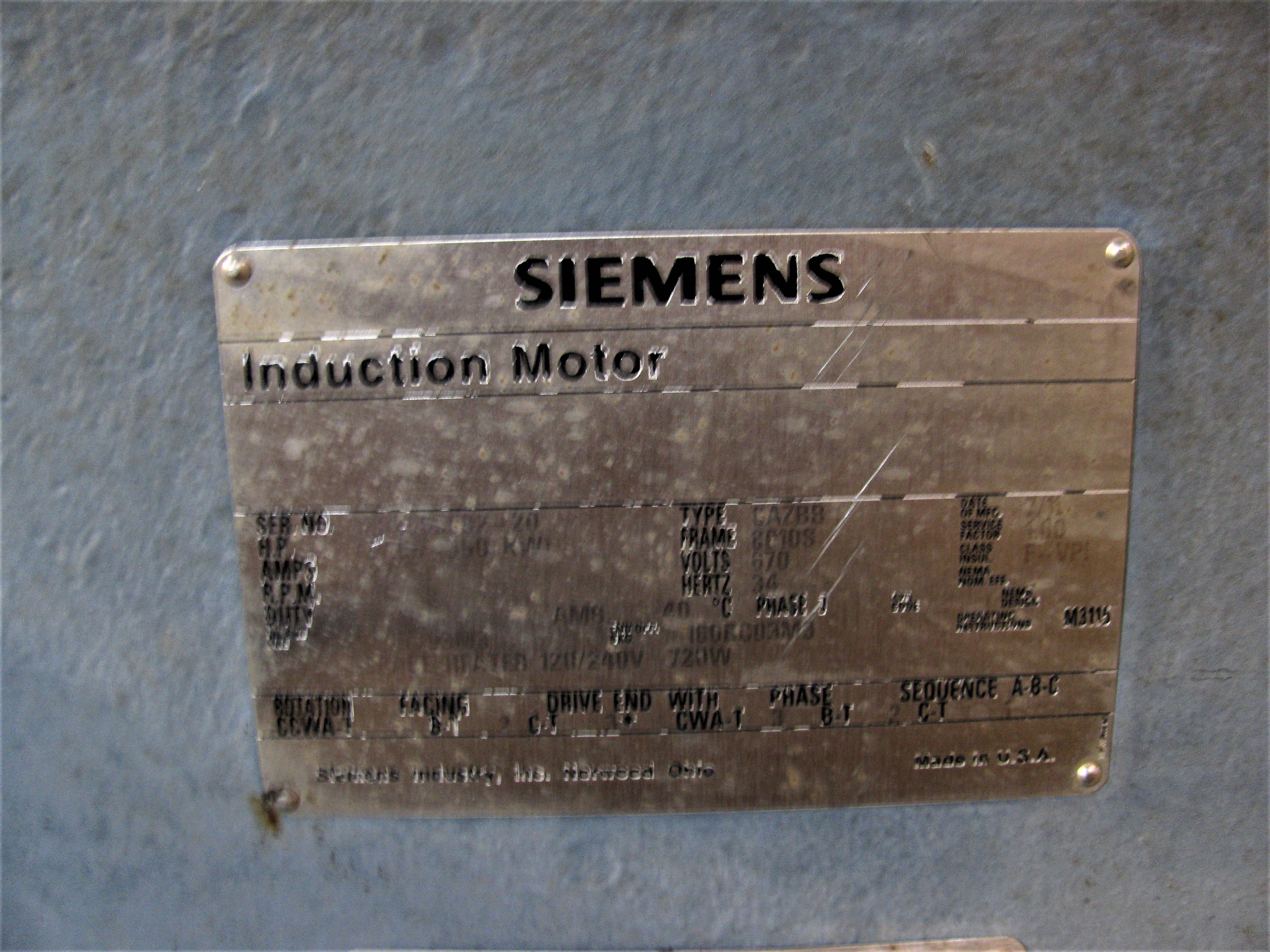

QTY. (2) 737.56 HP (550 KW), 286 RPM, 670V, SIEMENS, 8010S, INVERTER MOTOR
 "12257700000 QTY. (2) 737.56 HP (550 KW), 286 RPM, 670V, SIEMENS, 8010S, INVERTER MOTOR")
 "12257700000 QTY. (2) 737.56 HP (550 KW), 286 RPM, 670V, SIEMENS, 8010S, INVERTER MOTOR")
 "12257700000 QTY. (2) 737.56 HP (550 KW), 286 RPM, 670V, SIEMENS, 8010S, INVERTER MOTOR")
| INVENTORY ID | 12257700000 |
| TITLE | QTY. (2) 737.56 HP (550 KW), 286 RPM, 670V, SIEMENS, 8010S, INVERTER MOTOR |
| HORSEPOWER | 737.56 (550 KW) |
| SPEED | 286 |
| VOLTAGE | 670 |
| MANUFACTURER | SIEMENS |
| FRAME | 8010S |
| ENCLOSURE | TE |
| SHAFT | SESS |
| DESIGN | N/A |
| CODE | J |
| TYPE | CAZBB |
| INSULATION CLASS | F-VPI |
| BEARINGS | A/F |
| SERVICE FACTOR | 1.00 |
| PHASE | 3 |
| FREQUENCY | 34 |
| AMPERAGE | 827 |
| SERIAL NUMBER OR ID NUMBER | 3002985582-20 |
| WEIGHT | 22,900 |
| DUTY | CONT |
| TEMPERATURE RISE | 40 |
| CAST IRON FRAME | YES |
| CAST ALUM FRAME | NO |
| LEADS FACING DRIVE END | RIGHT |
| SHAFT HEIGHT | 20" |
| DRIVE SHAFT DIAMETER | 6 1/4" |
| DRIVE SHAFT LENGTH | 12" |
