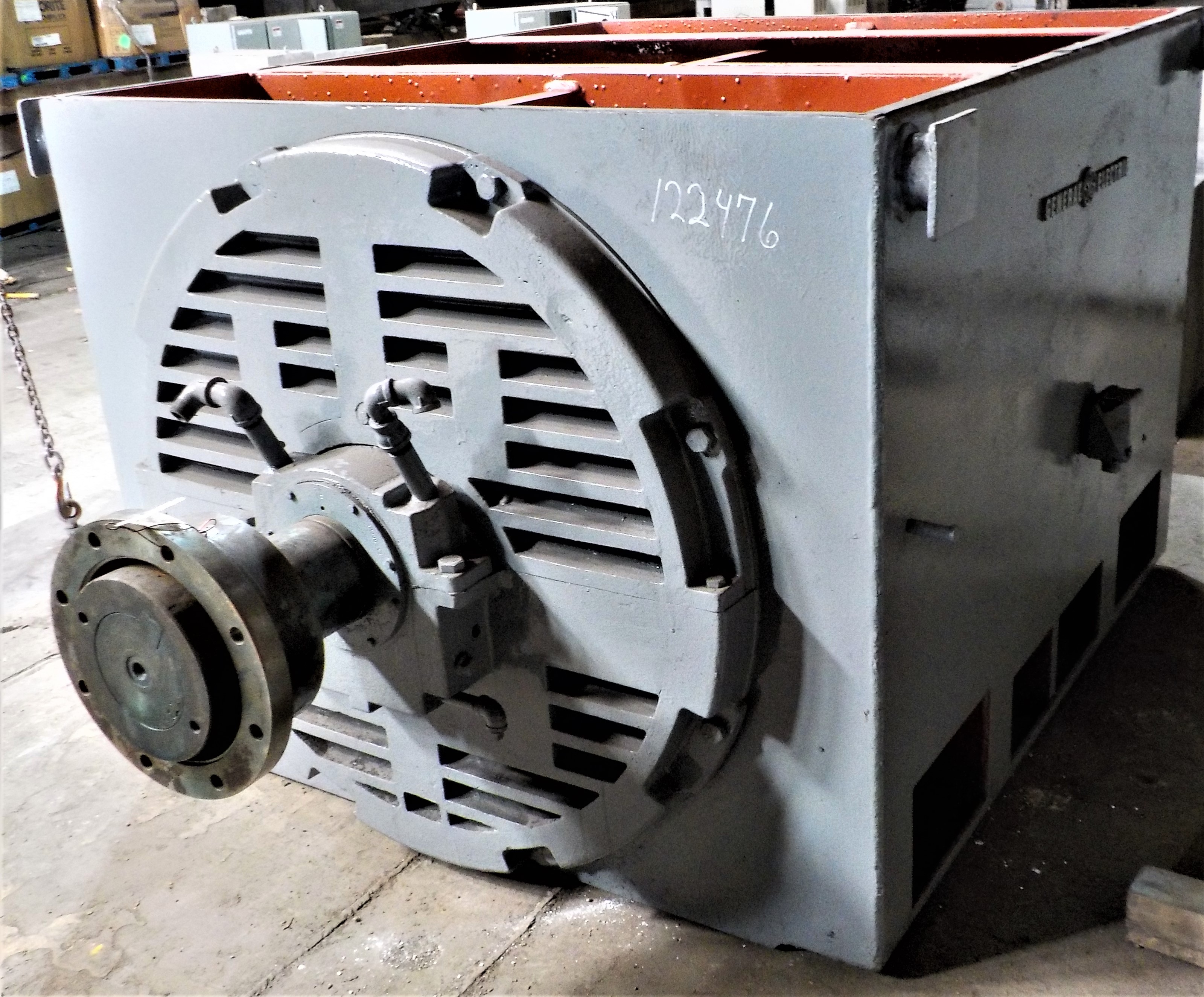

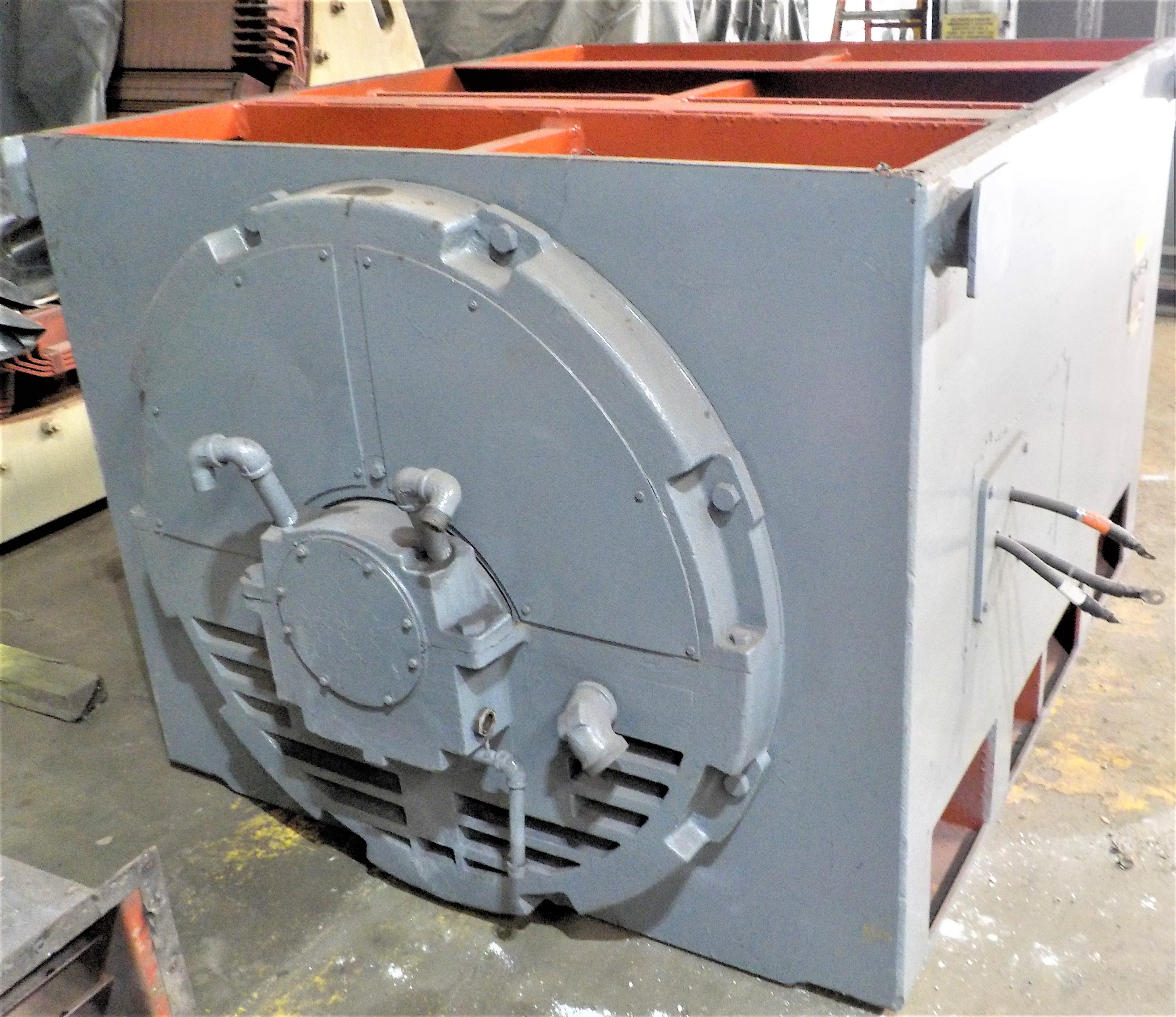

700 HP, 514 RPM, 2300 V, GENERAL ELECTRIC, 8509SU, AC SYNCHRONOUS MOTOR
 "12247600000 700 HP, 514 RPM, 2300 V, GENERAL ELECTRIC, 8509SU, AC SYNCHRONOUS MOTOR")
 "12247600000 700 HP, 514 RPM, 2300 V, GENERAL ELECTRIC, 8509SU, AC SYNCHRONOUS MOTOR")
 "12247600000 700 HP, 514 RPM, 2300 V, GENERAL ELECTRIC, 8509SU, AC SYNCHRONOUS MOTOR")
 "12247600000 700 HP, 514 RPM, 2300 V, GENERAL ELECTRIC, 8509SU, AC SYNCHRONOUS MOTOR")
 "12247600000 700 HP, 514 RPM, 2300 V, GENERAL ELECTRIC, 8509SU, AC SYNCHRONOUS MOTOR")
 "12247600000 700 HP, 514 RPM, 2300 V, GENERAL ELECTRIC, 8509SU, AC SYNCHRONOUS MOTOR")
| INVENTORY ID | 12247600000 |
| TITLE | 700 HP, 514 RPM, 2300 V, GENERAL ELECTRIC, 8509SU, AC SYNCHRONOUS MOTOR |
| HORSEPOWER | 700 |
| RPM | 514 |
| VOLTAGE | 2300 |
| MANUFACTURER | GENERAL ELECTRIC |
| FRAME | 8509SU |
| SHAFT | SESS |
| SHAFT HEIGHT | 24" |
| FIELD EXCITATION VOLTS | 250 |
| AMPERAGE | 174.7 |
| BEARINGS | SEALED SLEAVE BEARING |
| TYPE | TS |
| ENCLOSURE | TEWC |
| PHASE | 3 |
| HERTZ | 60 |
| DUTY | CONT. |

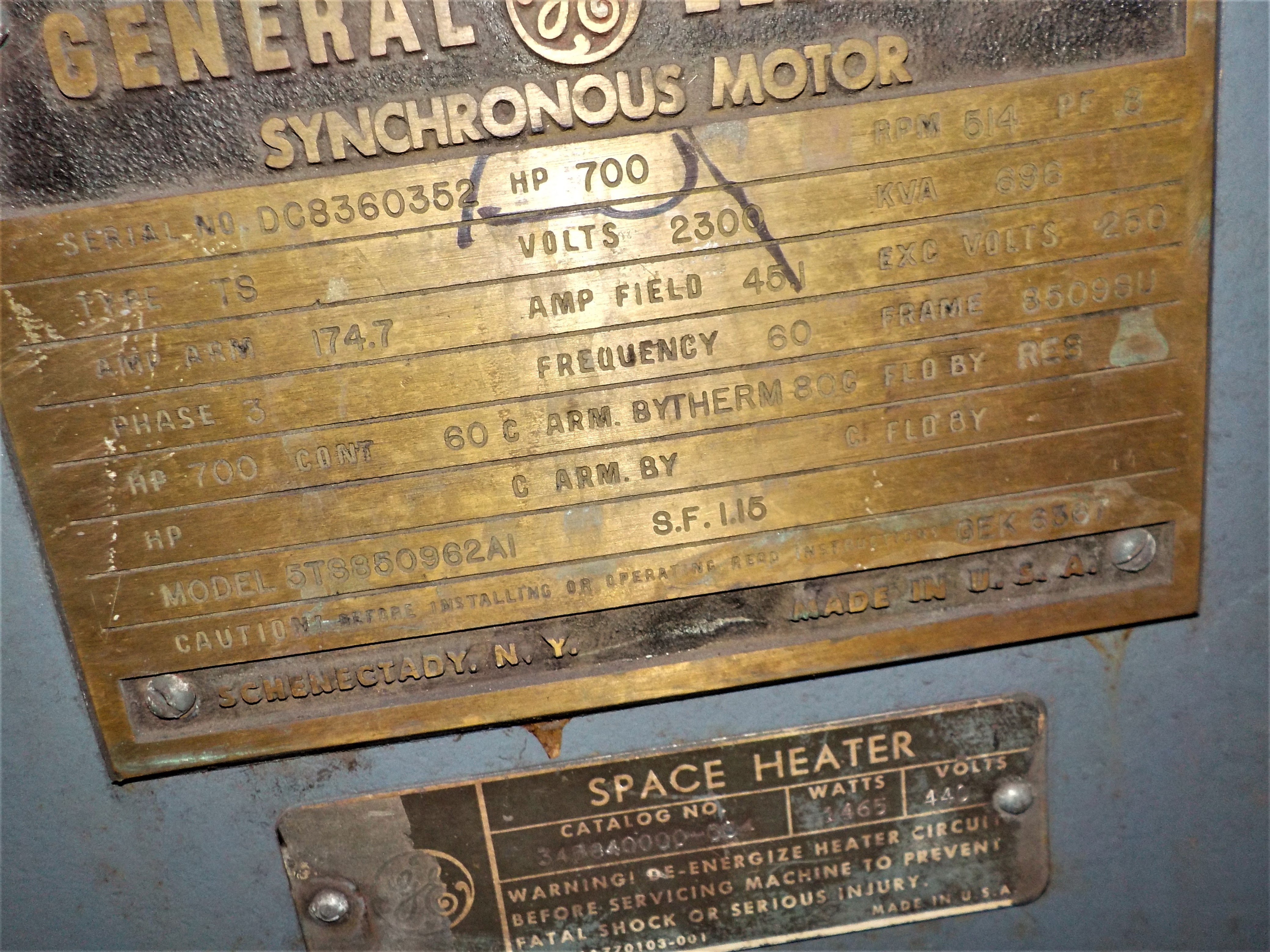

| MODEL NUMBER OR STYLE NUMBER | 5T9850962A1 |
| DEGREE TEMP RISE | 60 |
| SERIAL NUMBER OR ID NUMBER | DC8360351 |
| WEIGHT | 17,000 |
| DRIVE SHAFT DIAMETER | 6 3/8" |
| DRIVE SHAFT LENGTH | 13" |
