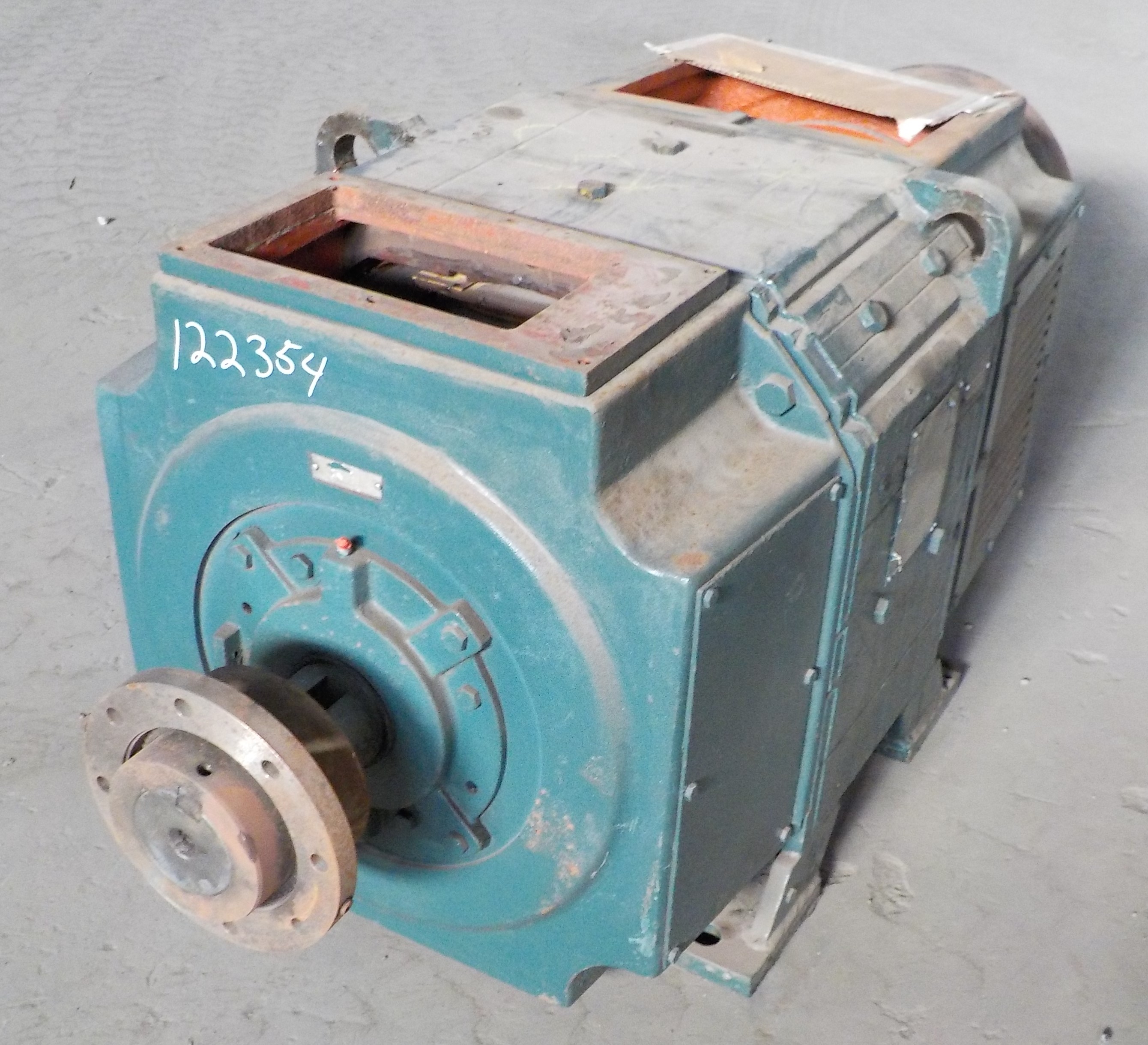

125, 1150/1700 RPM, 500V, RELIANCE, B506ATZ, STAB SHUNT, USED DC MOTOR
 "12235400000 125, 1150/1700 RPM, 500V, RELIANCE, B506ATZ, STAB SHUNT, USED DC MOTOR")
| INVENTORY ID | 12235400000 |
| TITLE | 125, 1150/1700 RPM, 500V, RELIANCE, B506ATZ, STAB SHUNT, USED DC MOTOR |
| HORSEPOWER | 125 |
| SPEED | 1150 |
| SPEED 2 | 1700 |
| VOLTAGE | 500 |
| MANUFACTURER | RELIANCE |
| FRAME | B506ATZ |
| TYPE | TR |
| WINDING | STAB SHUNT |
| ENCLOSURE | DPGFV |
| SHAFT | DESS |
| AMPERAGE | 205 |
| DUTY | CONT |
| BEARINGS | A/F |
| FIELD VOLTAGE | 240 |
| FIELD AMPERAGE | 6.26/3.0 |
| DEGREE OF TEMPERATURE RISE | 40 |
| SERIAL NUMBER OR ID NUMBER | 4D846862-T1-OL |
| SERVICE FACTOR | 1.0 |
| INSULATION CLASS | F |
| POWER SUPPLY CODE | C |
| WEIGHT | 2,710 |
| DRIVE SHAFT DIMENSION | 3 5/8" |
| DRIVE SHAFT LENGTH | 8" |
| BRAKE SHAFT DIAMETER | 3 5/8" |
| BRAKE SHAFT LENGTH | 5" |
| SHAFT HEIGHT | 13" |
| MOTOR LENGTH | 55" |
| WIDTH BETWEEN FEET | 20" |
| LENGTH BETWEEN FEET | 20" |
