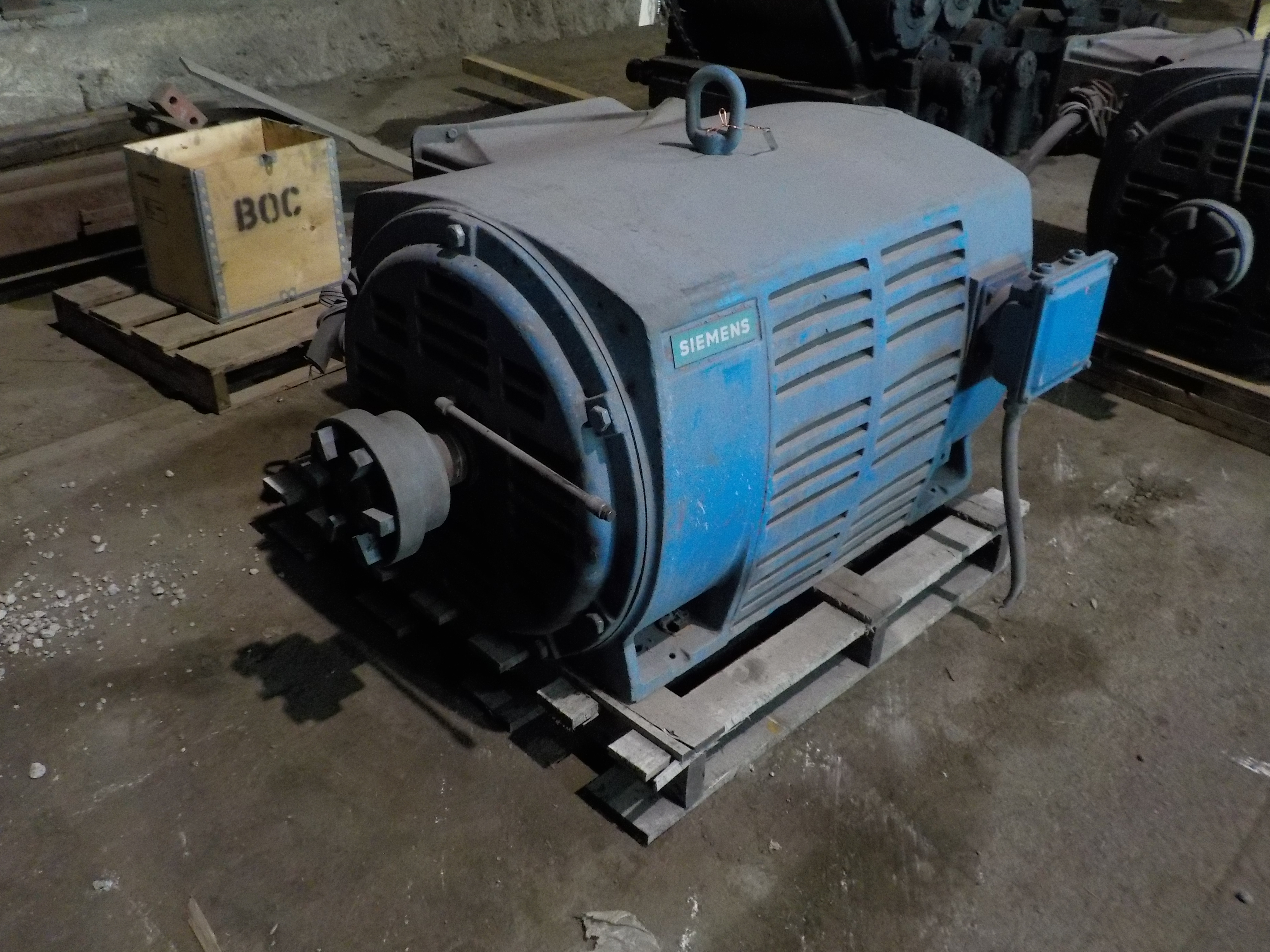

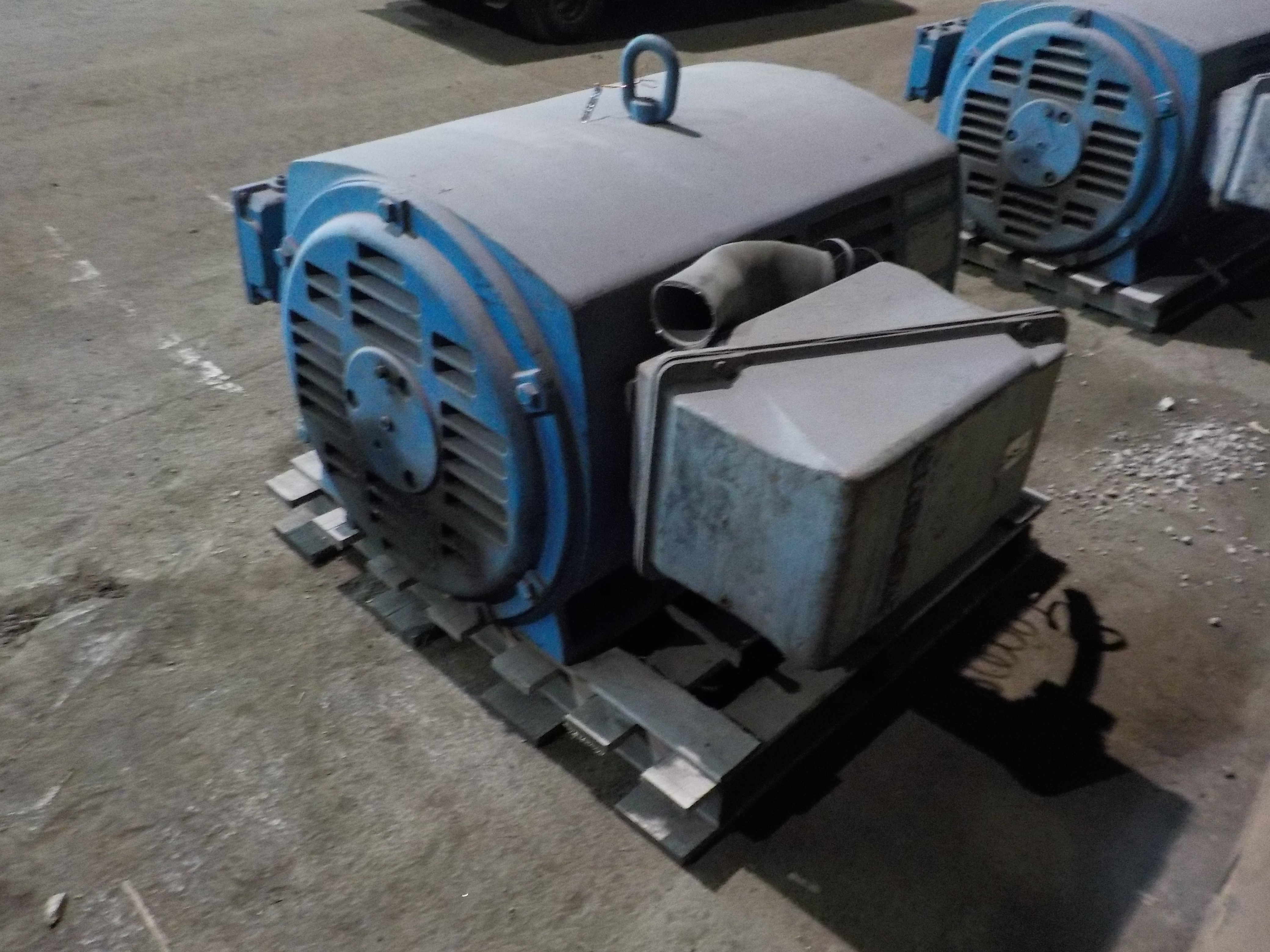

400 HP (300 KW) 1775 RPM, 4160 VOLT, SIEMENS, 508S, INDUCTION AC MOTOR
 "12231200000 400 HP (300 KW) 1775 RPM, 4160 VOLT, SIEMENS, 508S, INDUCTION AC MOTOR")
 "12231200000 400 HP (300 KW) 1775 RPM, 4160 VOLT, SIEMENS, 508S, INDUCTION AC MOTOR")
| INVENTORY ID | 12231200000 |
| TITLE | 400 HP (300 KW) 1775 RPM, 4160 VOLT, SIEMENS, 508S, INDUCTION AC MOTOR |
| HORSEPOWER | 400 (300 KW) |
| SPEED NAMEPLATE | 1775 |
| VOLTAGE | 4160 |
| MANUFACTURER | SIEMENS |
| FRAME | 508S |
| ENCLOSURE | N/A |
| SHAFT | SESS |
| DESIGN | H |
| CODE | N/C |
| TYPE | IG |
| INSULATION CLASS | F |
| BEARINGS | A/F |
| SERVICE FACTOR | 1.15 |
| PHASE | 3 |
| FREQUENCY | 60 |
| AMPERAGE | 54.7 |
| SERIAL NUMBER OR ID NUMBER | 7-5112-68755-02-1 |
| WEIGHT | 3,100 |
| DUTY | CONT |
| TEMPERATURE RISE | 40 |
| CAST IRON FRAME | YES |
| CAST ALUM FRAME | NO |
| LEADS FACING DRIVE END | LEFT |
| SHAFT HEIGHT | 12 1/2" |
| DRIVE SHAFT DIAMETER | 3 3/8" |
| DRIVE SHAFT LENGTH | 7" |
