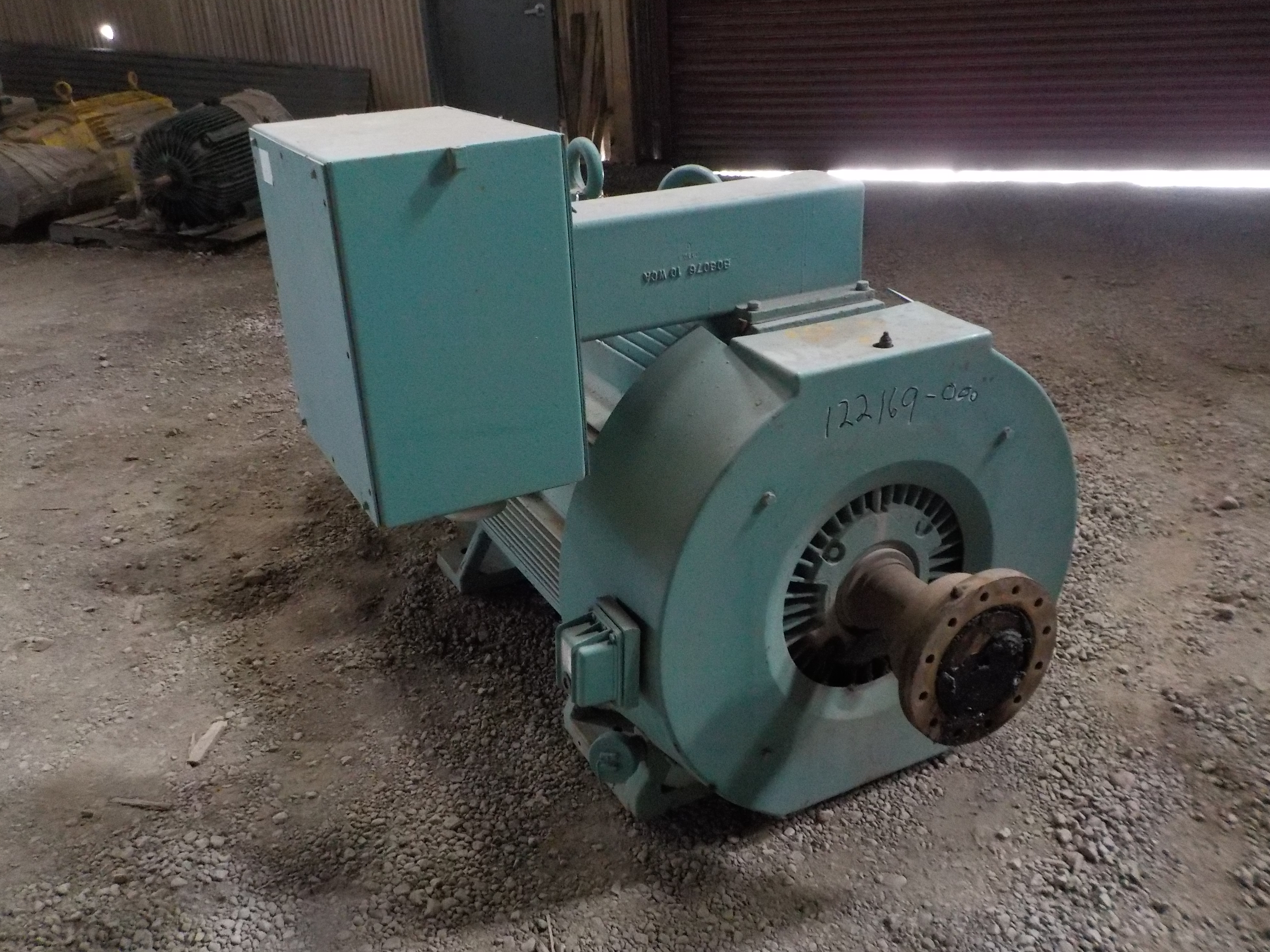

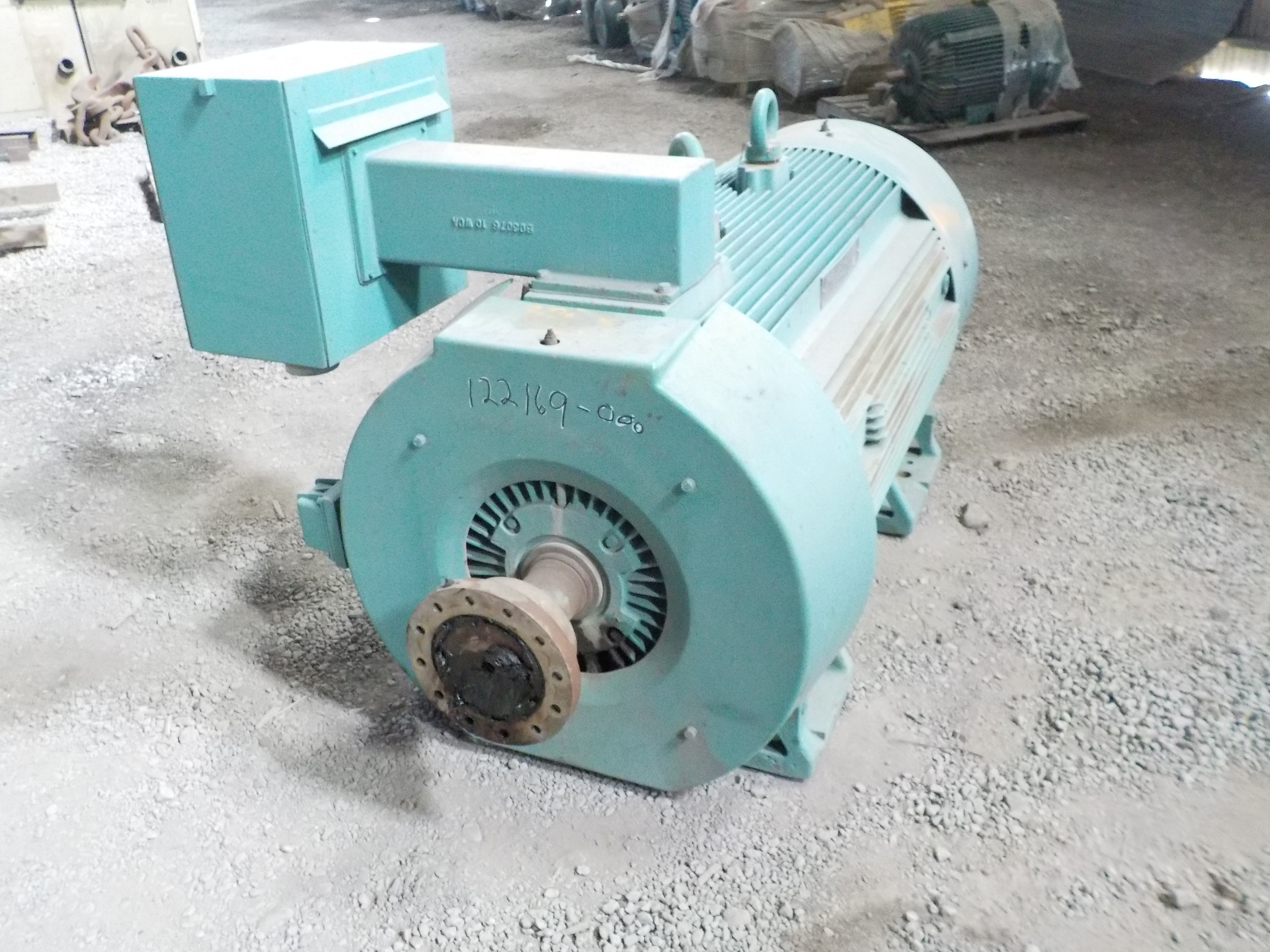

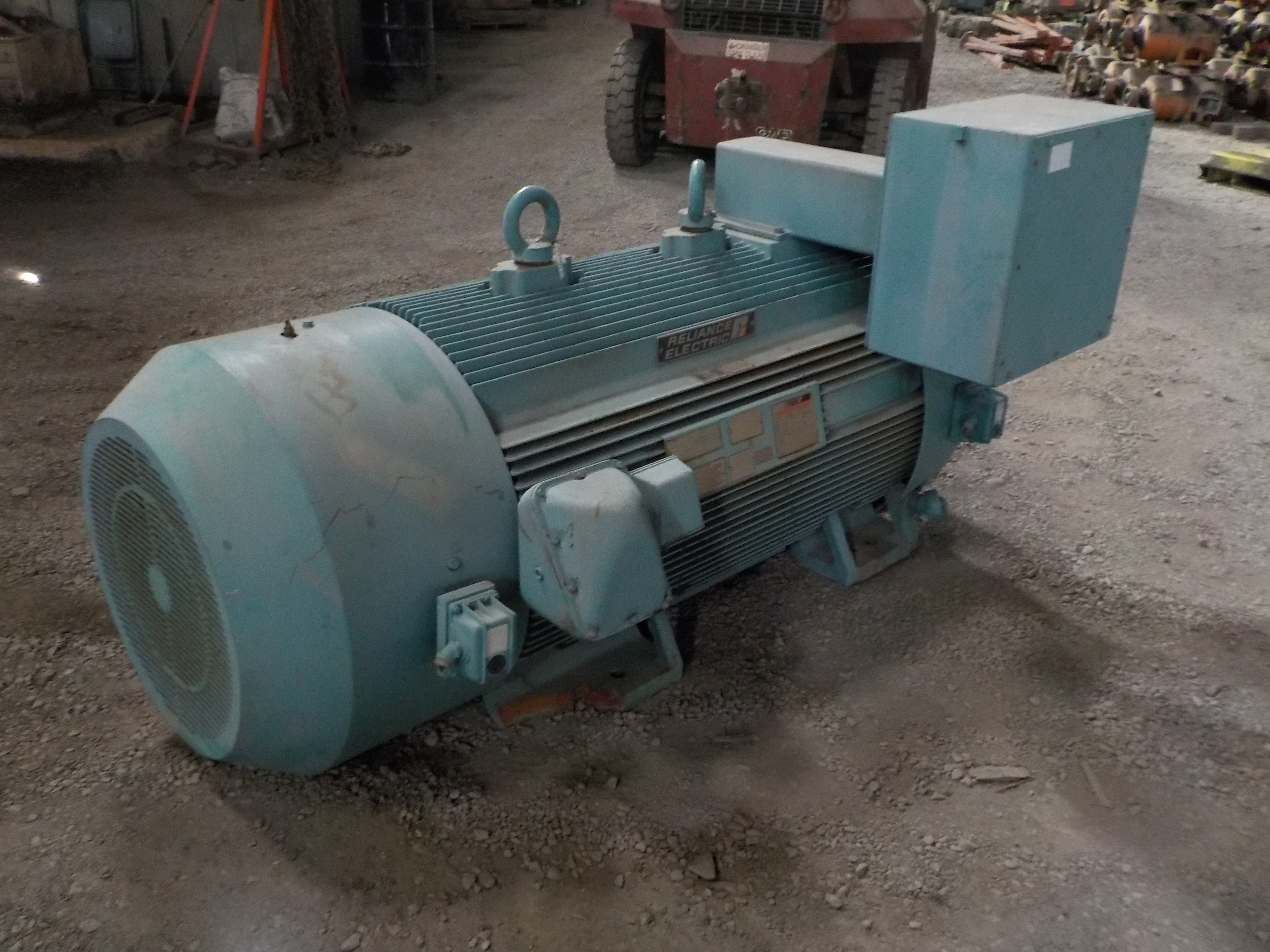

800 HP, 897 RPM, 4160 VOLT, RELIANCE, 37CG40Z, INDUCTION AC MOTOR
 "12216900000 800 HP, 897 RPM, 4160 VOLT, RELIANCE, 37CG40Z, INDUCTION AC MOTOR")
 "12216900000 800 HP, 897 RPM, 4160 VOLT, RELIANCE, 37CG40Z, INDUCTION AC MOTOR")
 "12216900000 800 HP, 897 RPM, 4160 VOLT, RELIANCE, 37CG40Z, INDUCTION AC MOTOR")
 "12216900000 800 HP, 897 RPM, 4160 VOLT, RELIANCE, 37CG40Z, INDUCTION AC MOTOR")

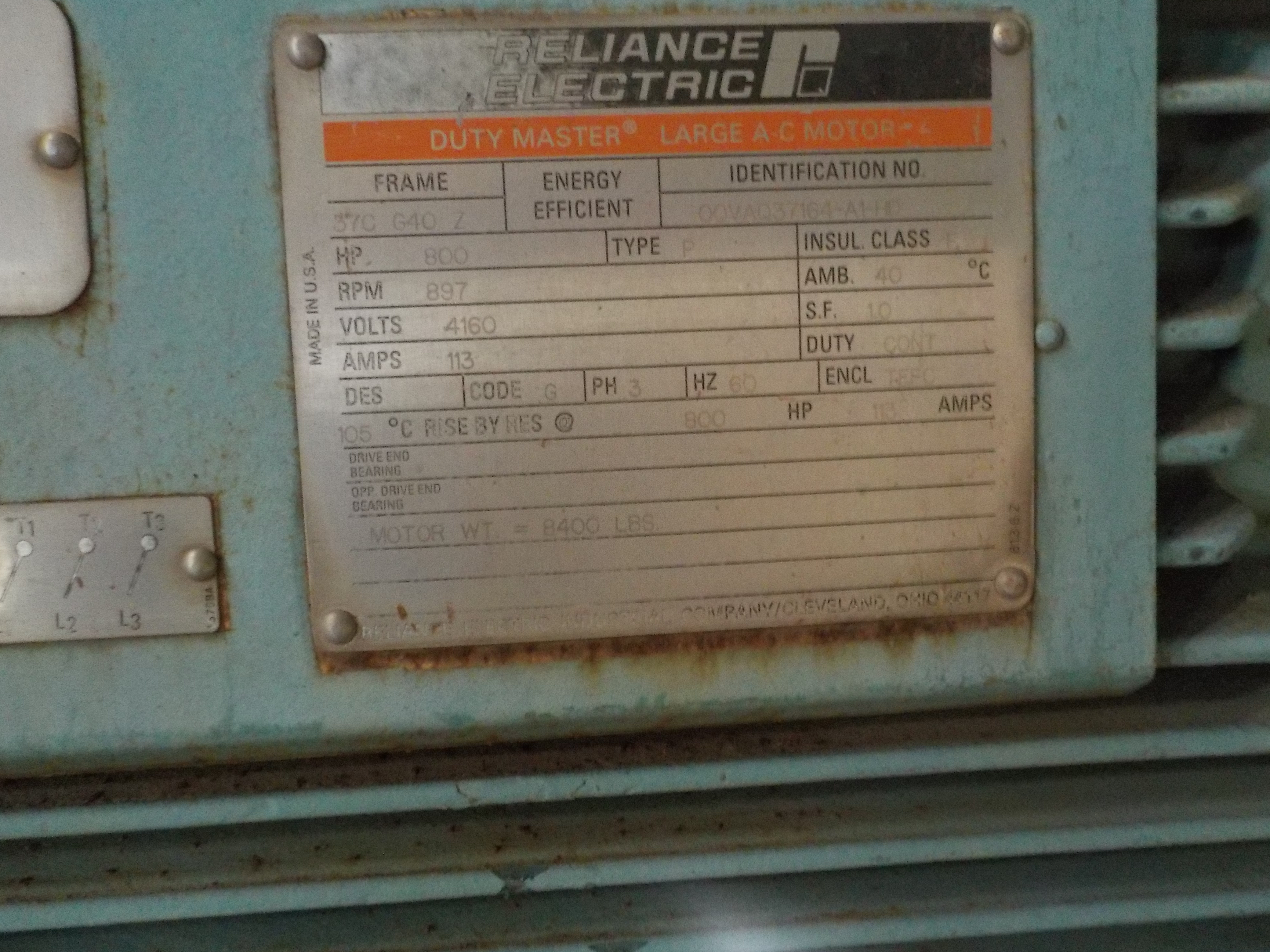

| INVENTORY ID | 12216900000 |
| TITLE | 800 HP, 897 RPM, 4160 VOLT, RELIANCE, 37CG40Z, INDUCTION AC MOTOR |
| HORSEPOWER | 800 |
| SPEED NAMEPLATE | 897 |
| VOLTAGE | 4160 |
| MANUFACTURER | RELIANCE |
| FRAME | 37CG40Z |
| ENCLOSURE | TEFC |
| SHAFT | SESS |
| DESIGN | N/A |
| CODE | G |
| TYPE | P |
| INSULATION CLASS | F |
| BEARINGS | A/F |
| SERVICE FACTOR | 1.0 |
| PHASE | 3 |
| FREQUENCY | 60 |
| AMPERAGE | 113 |
| SERIAL NUMBER OR ID NUMBER | 00VAQ37164-A1-HD |
| WEIGHT | 8,400 |
| DUTY | CONT |
| TEMPERATURE RISE | 40 |
| CAST IRON FRAME | YES |
| CAST ALUM FRAME | NO |
| LEADS FACING DRIVE END | LEFT |
| SHAFT HEIGHT | 16" |
| DRIVE SHAFT DIAMETER | 4" |
| DRIVE SHAFT LENGTH | 9" |
