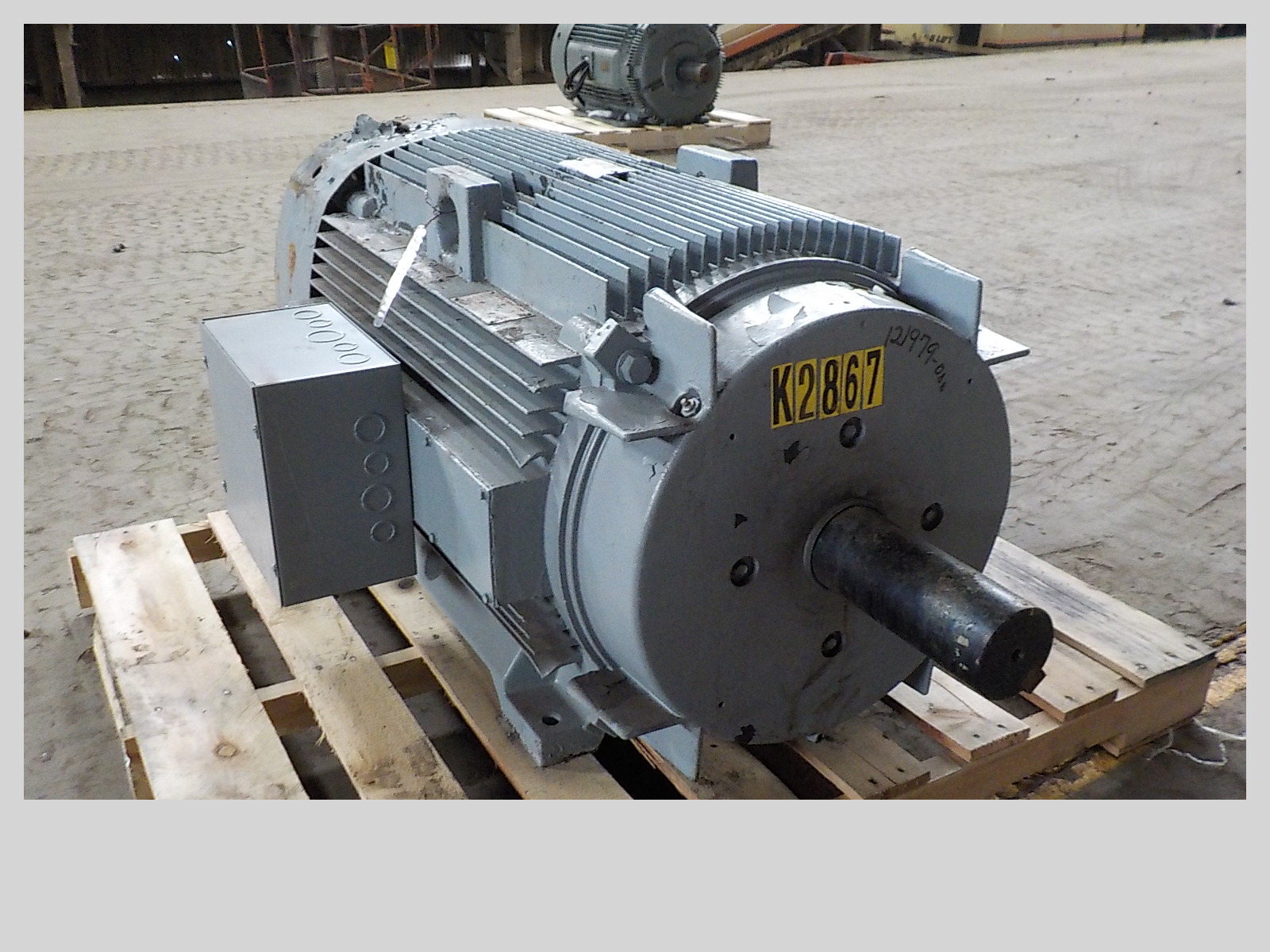

250 HP, 1790 RPM, 460V, GENERAL ELECTRIC, 449T, INDUCTION AC MOTOR
 "12197900000 250 HP, 1790 RPM, 460V, GENERAL ELECTRIC, 449T, INDUCTION AC MOTOR")
 "12197900000 250 HP, 1790 RPM, 460V, GENERAL ELECTRIC, 449T, INDUCTION AC MOTOR")
 "12197900000 250 HP, 1790 RPM, 460V, GENERAL ELECTRIC, 449T, INDUCTION AC MOTOR")

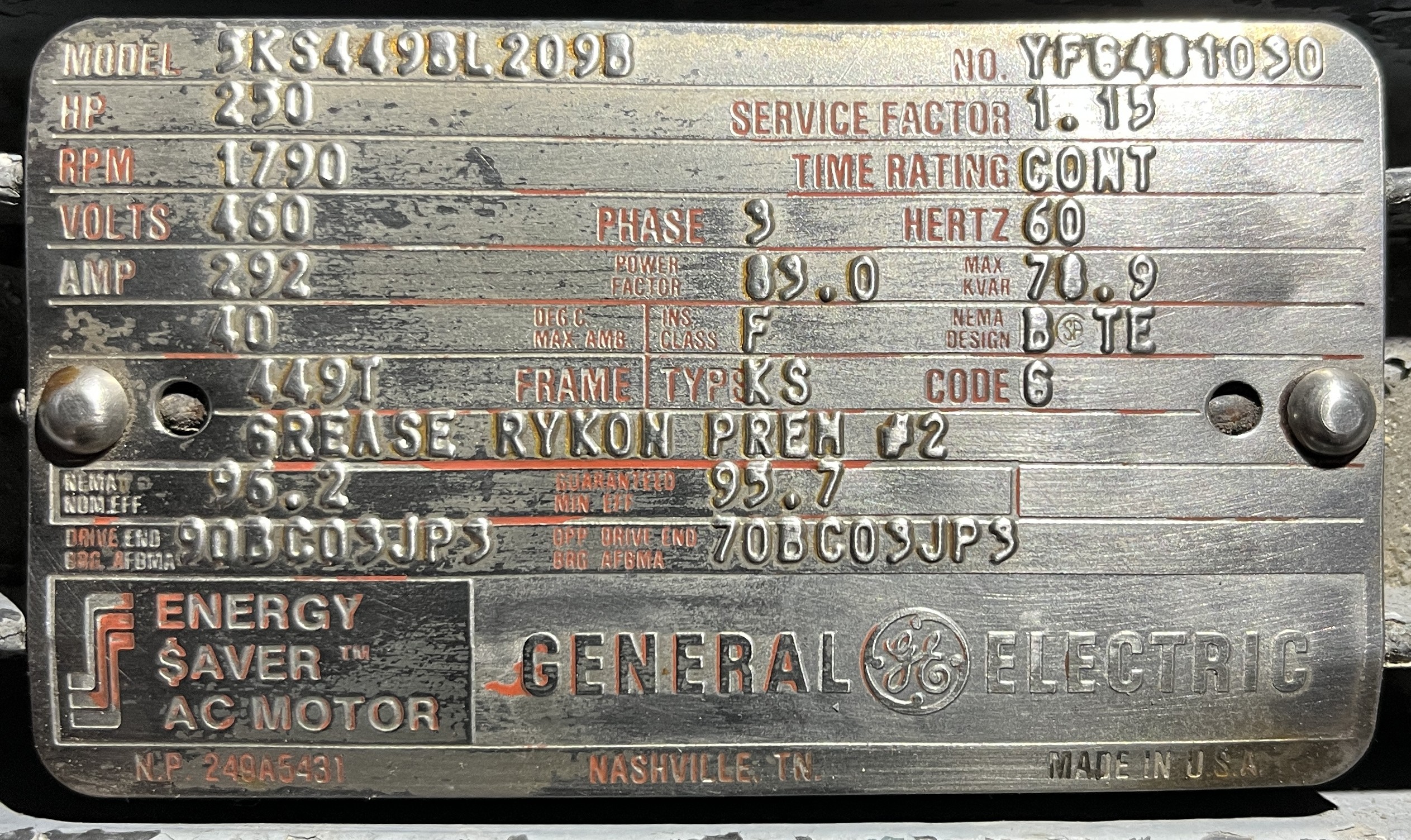

| INVENTORY ID | 12197900000 |
| TITLE | 250 HP, 1790 RPM, 460V, GENERAL ELECTRIC, 449T, INDUCTION AC MOTOR |
| HORSEPOWER | 250 |
| SPEED NAMEPLATE | 1790 |
| VOLTAGE | 460 |
| MANUFACTURER | GENERAL ELECTRIC |
| FRAME | 449T |
| ENCLOSURE | TEFC |
| SHAFT | SESS |
| DESIGN | B |
| CODE | G |
| TYPE | KS |
| INSULATION CLASS | F |
| BEARINGS | A/F |
| SERVICE FACTOR | 1.15 |
| PHASE | 3 |
| FREQUENCY | 60 |
| AMPERAGE | 292 |
| SERIAL NUMBER OR ID NUMBER | YFG481030 |
| MODEL NUMBER OR STYLE NUMBER | 5KS449BL209B |
| WEIGHT | 2,580 |
| DUTY | CONT |
| TEMPERATURE RISE | 40 |
| CAST IRON FRAME | NO |
| CAST ALUM FRAME | YES |
| LEADS FACING DRIVE END | LEFT |
| SHAFT HEIGHT | 10 1/2" |
| DRIVE SHAFT DIAMETER | 3 3/8" |
| DRIVE SHAFT LENGTH | 8 3/4" |
