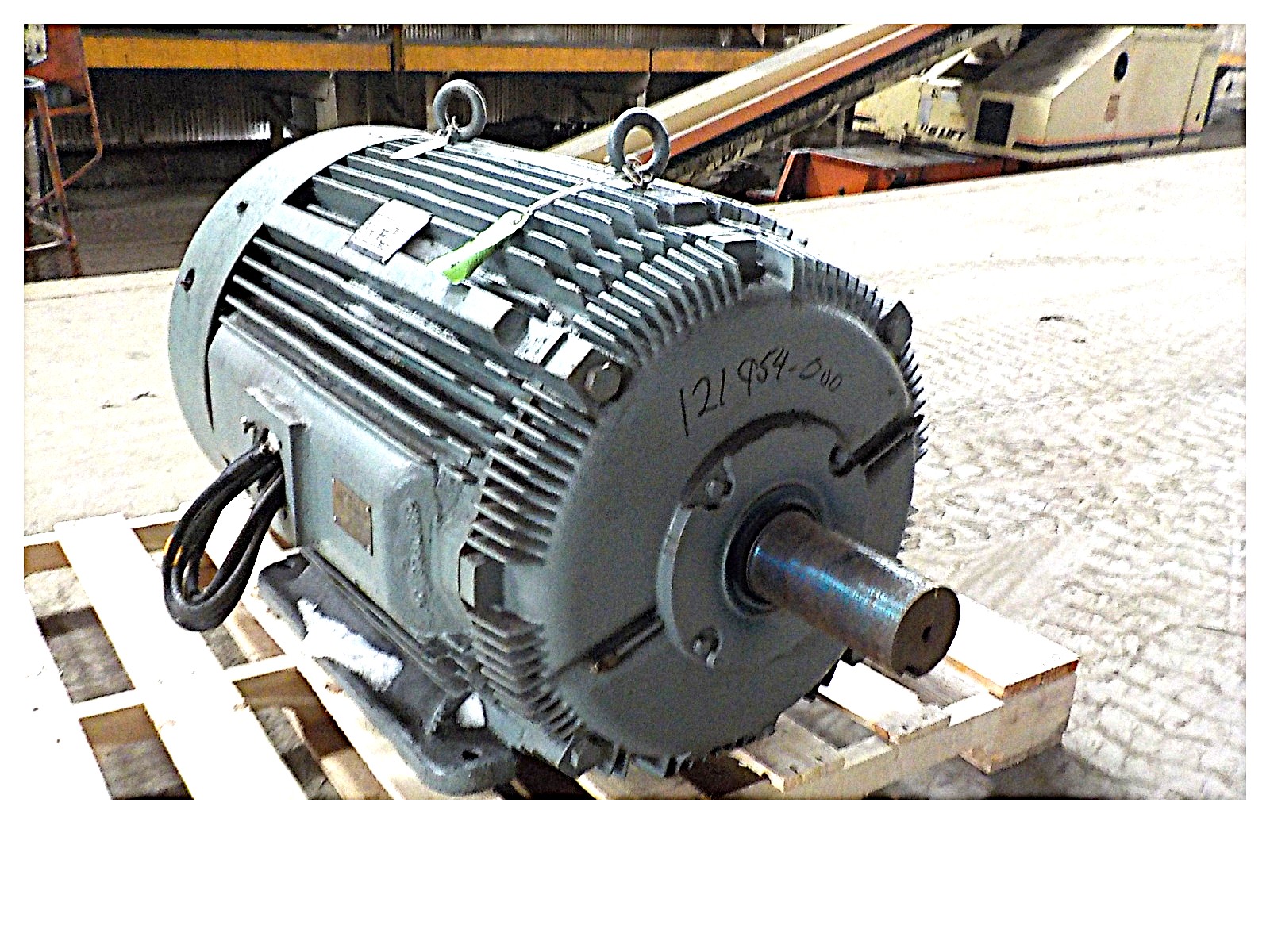

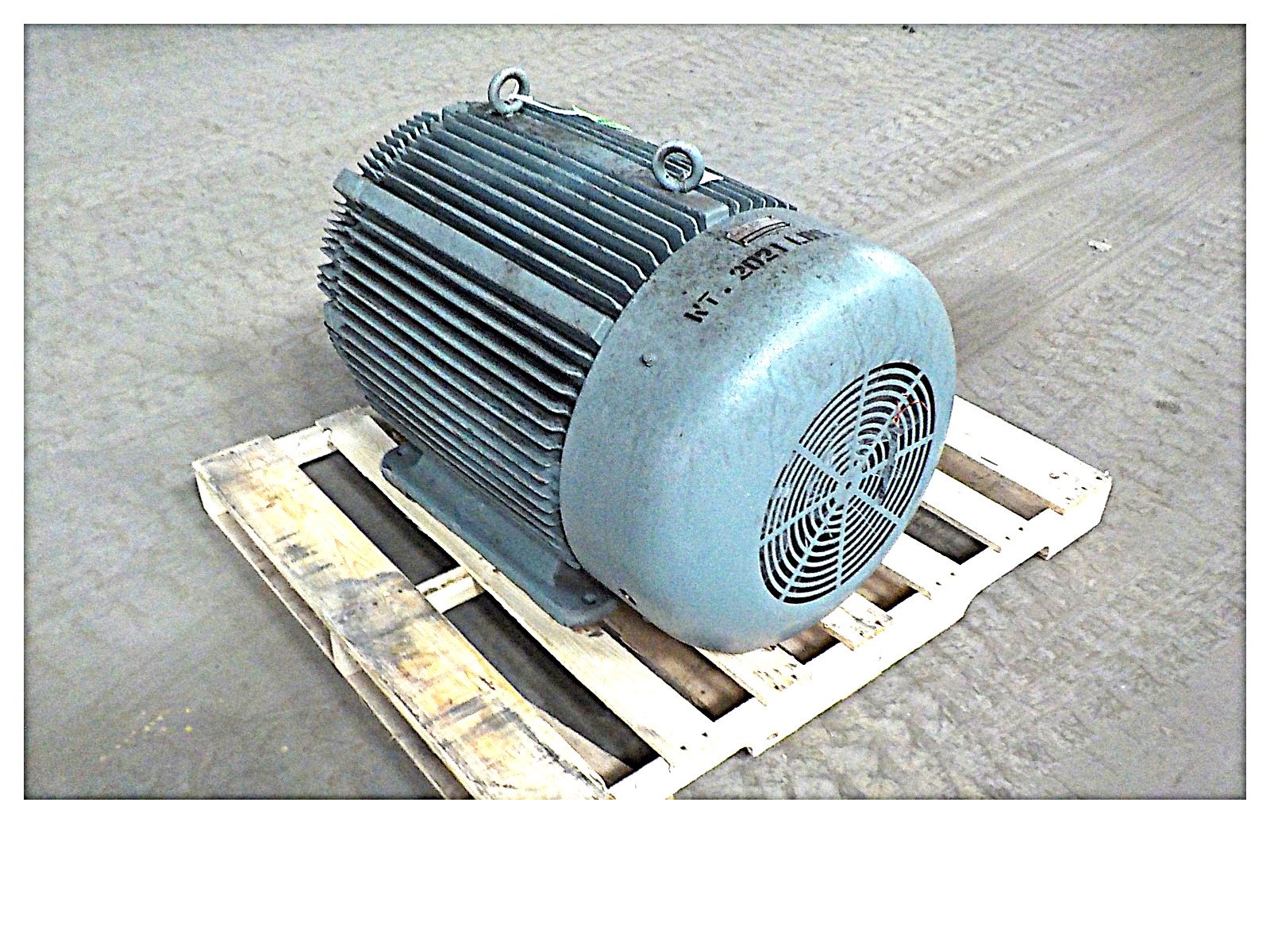

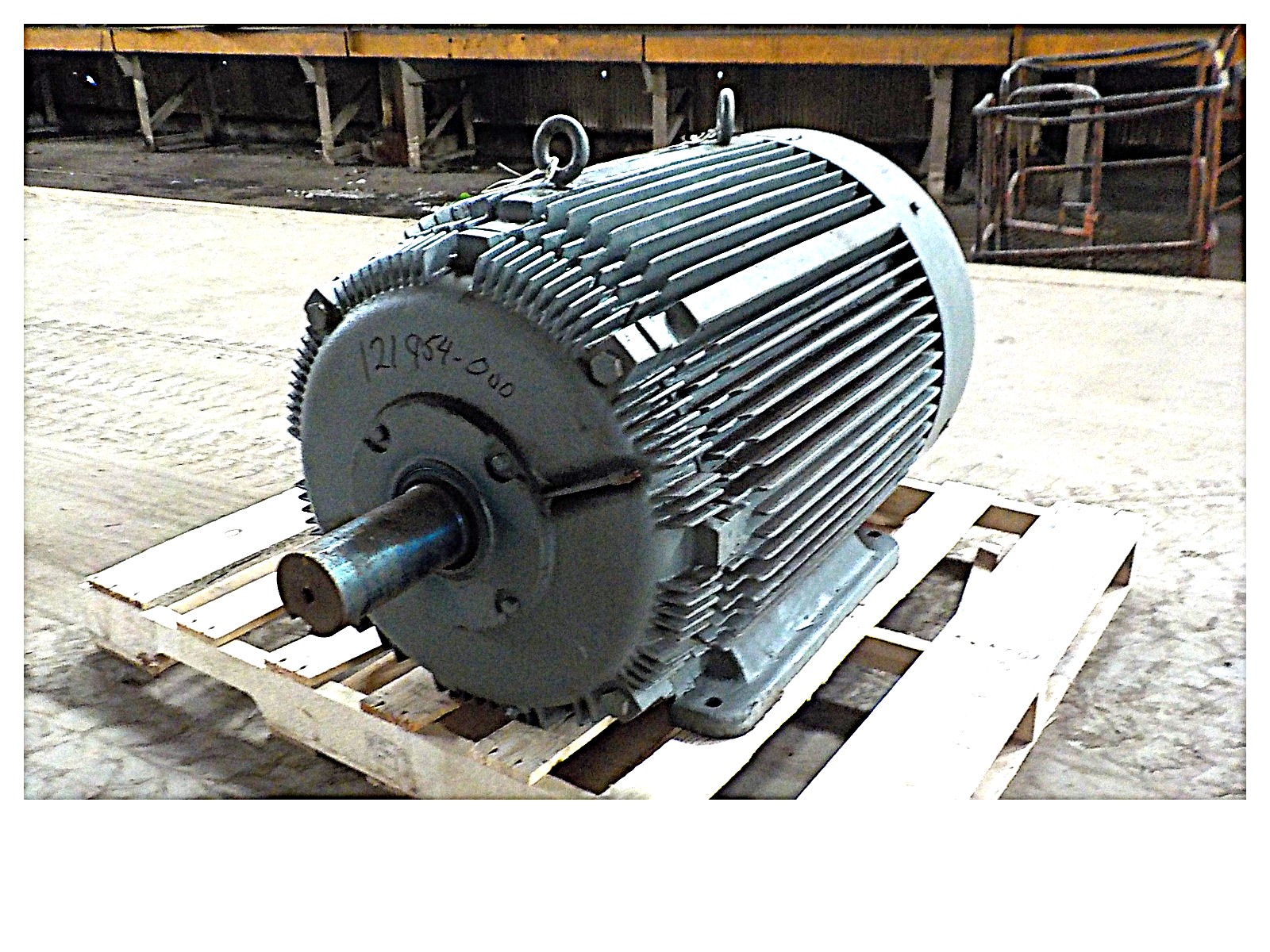

250 HP, 1775 RPM, 460V, WESTINGHOUSE, 447TZ INDUCTION AC MOTOR
 "12195400000 250 HP, 1775 RPM, 460V, WESTINGHOUSE, 447TZ INDUCTION AC MOTOR")
 "12195400000 250 HP, 1775 RPM, 460V, WESTINGHOUSE, 447TZ INDUCTION AC MOTOR")
 "12195400000 250 HP, 1775 RPM, 460V, WESTINGHOUSE, 447TZ INDUCTION AC MOTOR")
| INVENTORY ID | 12195400000 |
| TITLE | 250 HP, 1775 RPM, 460V, WESTINGHOUSE, 447TZ INDUCTION AC MOTOR |
| HORSEPOWER | 250 |
| SPEED NAMEPLATE | 1775 |
| VOLTAGE | 460 |
| MANUFACTURER | WESTINGHOUSE |
| FRAME | 447TZ |
| ENCLOSURE | TEFC |
| SHAFT | SESS |
| TYPE | B |
| BEARINGS | A/F |
| SERVICE FACTOR | 1.15 |
| PHASE | 3 |
| FREQUENCY | 60 |
| WEIGHT | 2,021 |
| CAST IRON FRAME | YES |
| CAST ALUM FRAME | NO |
| LEADS FACING DRIVE END | RIGHT |
| SHAFT HEIGHT | 10 1/2" |
| DRIVE SHAFT DIAMETER | 3 3/8" |
| DRIVE SHAFT LENGTH | 7 1/2" |
