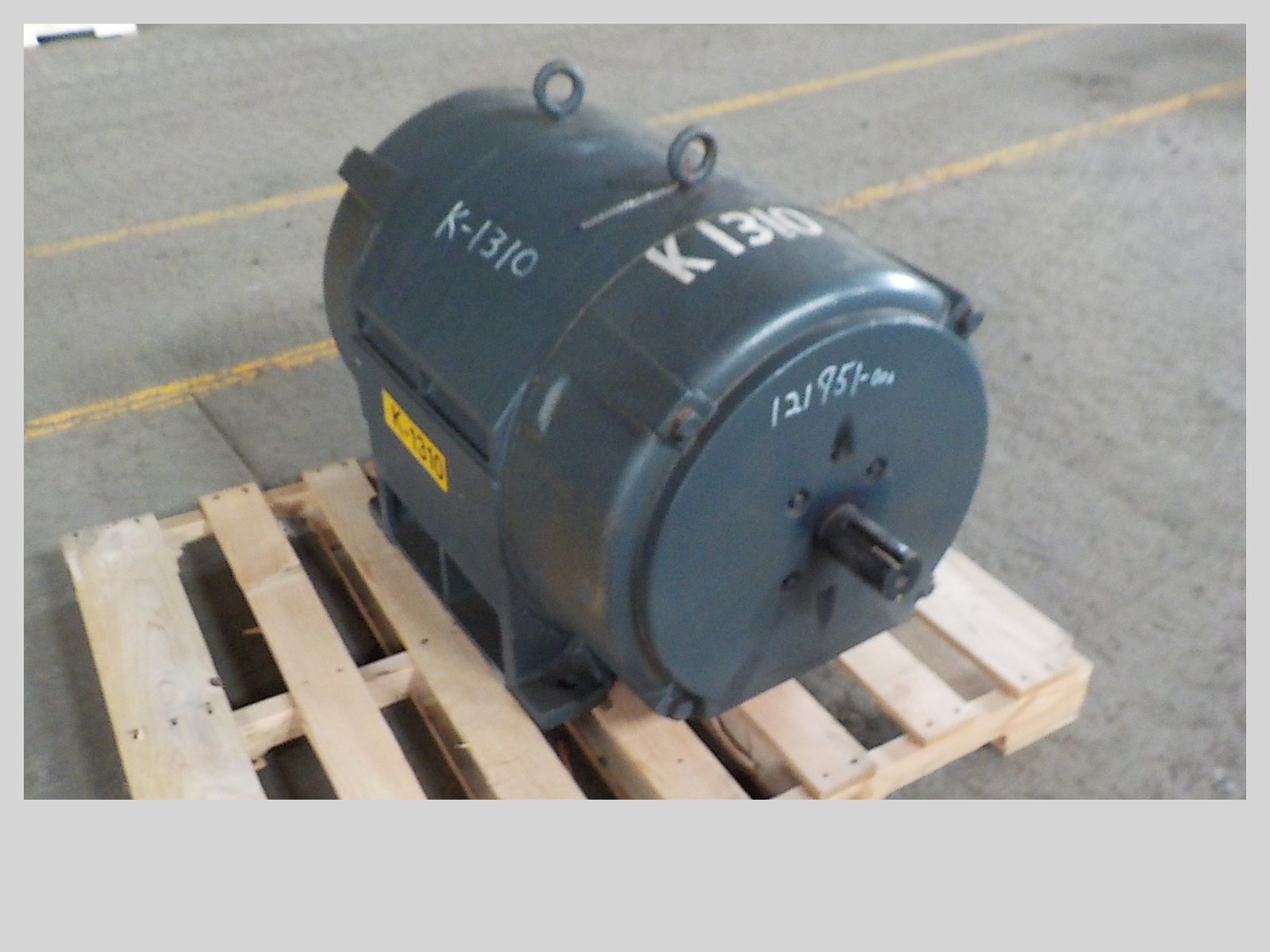

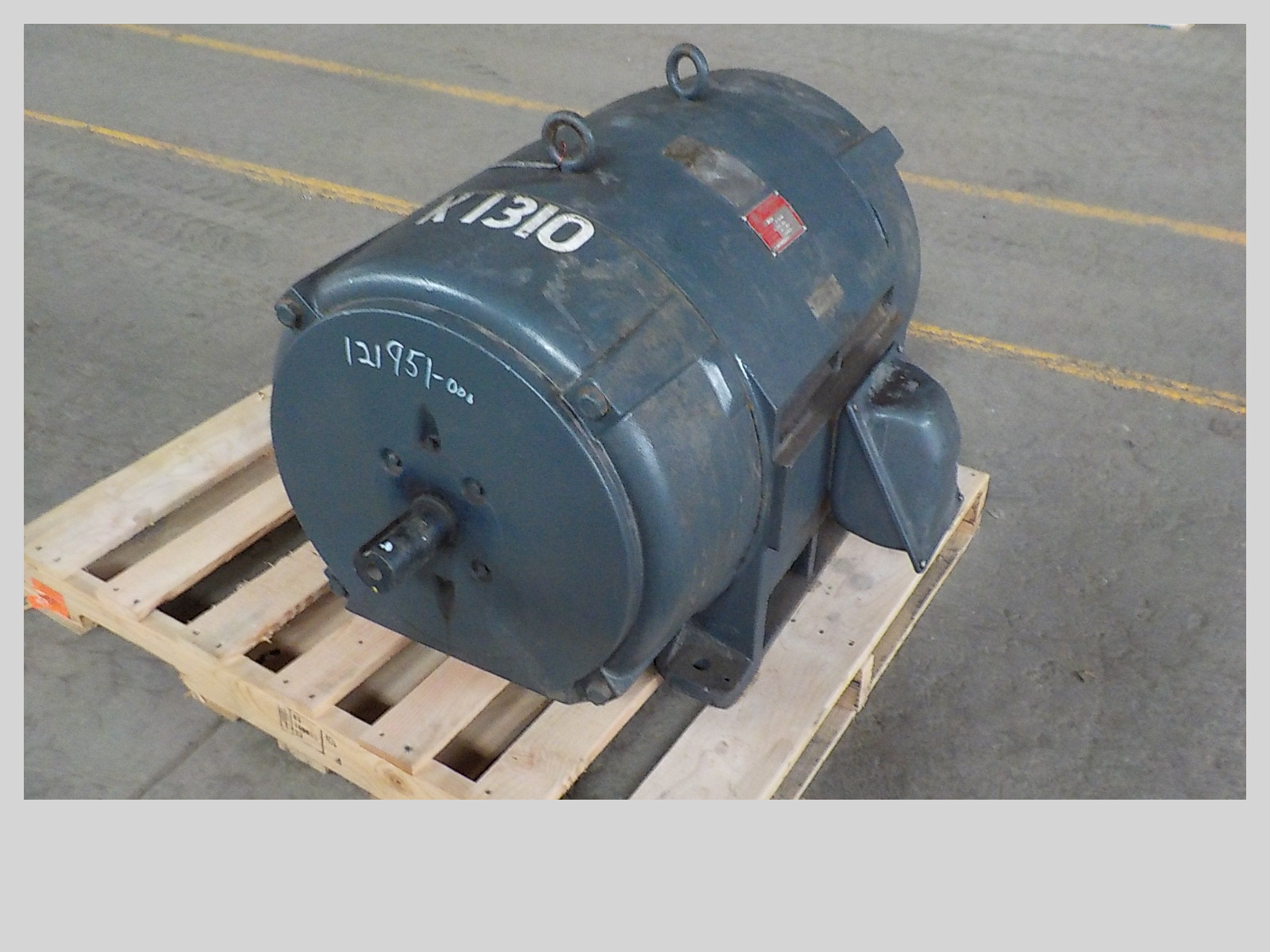

250 HP, 1780 RPM, 460V, WESTINGHOUSE, 506US, INDUCTION AC MOTOR
 "12195100000 250 HP, 1780 RPM, 460V, WESTINGHOUSE, 506US, INDUCTION AC MOTOR")
 "12195100000 250 HP, 1780 RPM, 460V, WESTINGHOUSE, 506US, INDUCTION AC MOTOR")
| INVENTORY ID | 12195100000 |
| TITLE | 250 HP, 1780 RPM, 460V, WESTINGHOUSE, 506US, INDUCTION AC MOTOR |
| HORSEPOWER | 250 |
| SPEED NAMEPLATE | 1780 |
| VOLTAGE | 440 |
| MANUFACTURER | WESTINGHOUSE |
| FRAME | 506US |
| ENCLOSURE | TEFC |
| SHAFT | SESS |
| DESIGN | B |
| CODE | F |
| TYPE | ABDP |
| INSULATION CLASS | B |
| BEARINGS | A/F |
| SERVICE FACTOR | 1.15 |
| PHASE | 3 |
| FREQUENCY | 283 |
| AMPERAGE | 60 |
| SERIAL NUMBER OR ID NUMBER | 2S-67 |
| MODEL NUMBER OR STYLE NUMBER | 67F91297 |
| WEIGHT | 2,000 |
| DUTY | CONT |
| TEMPERATURE RISE | 60 |
| CAST IRON FRAME | YES |
| CAST ALUM FRAME | NO |
| LEADS FACING DRIVE END | RIGHT |
| SHAFT HEIGHT | 12 1/2" |
| DRIVE SHAFT DIAMETER | 2 3/8" |
| DRIVE SHAFT LENGTH | 4 1/2" |
