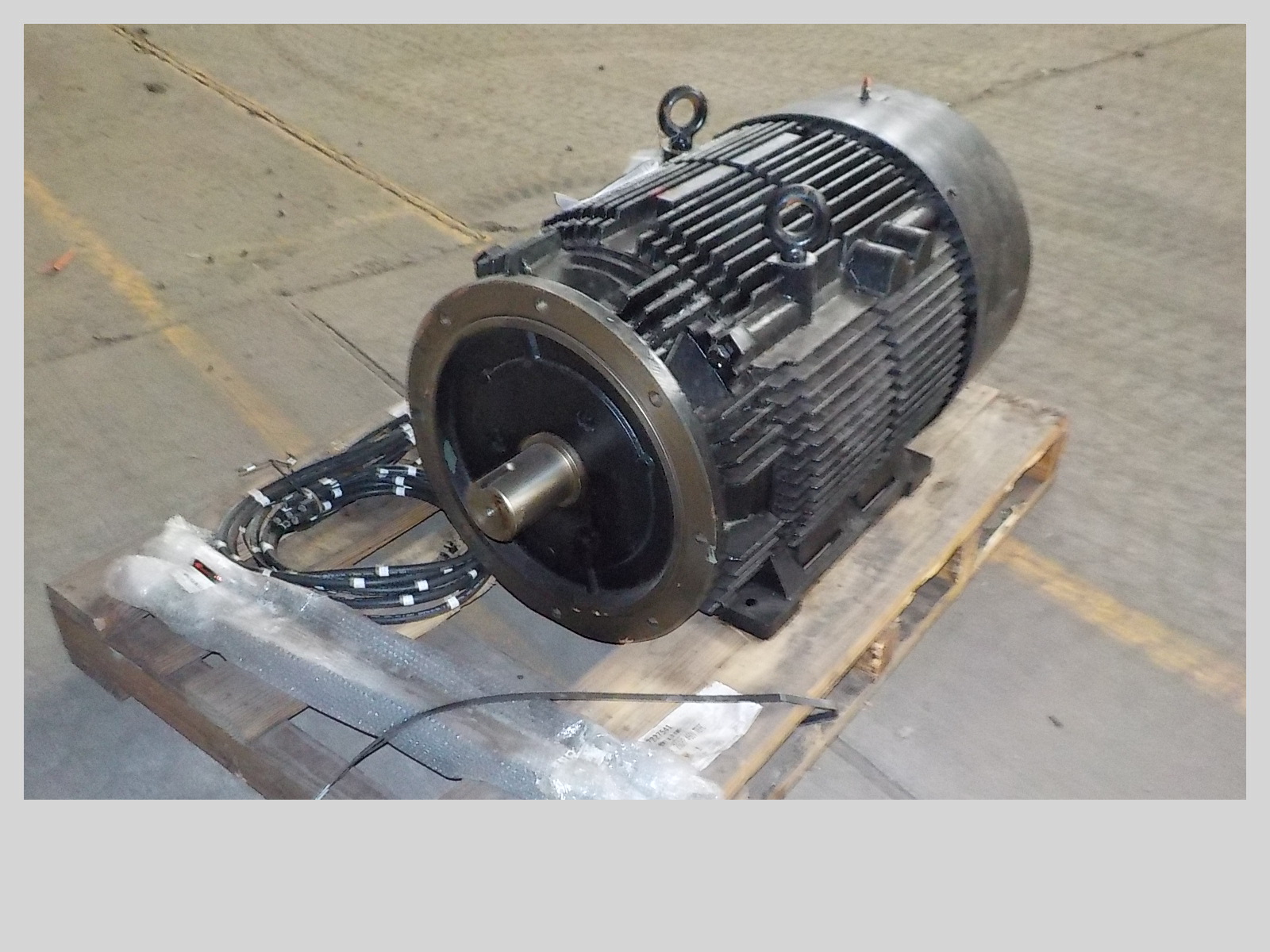

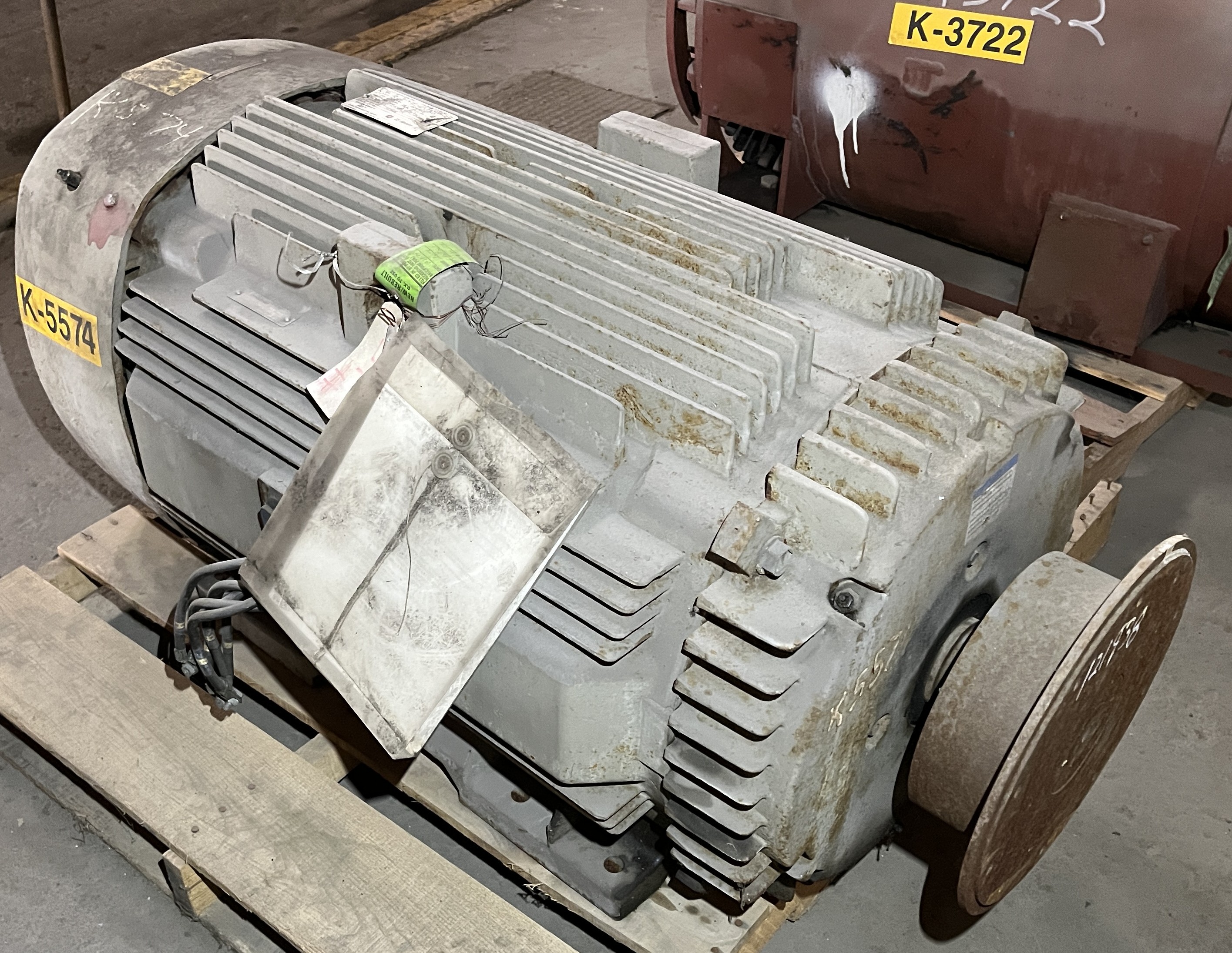

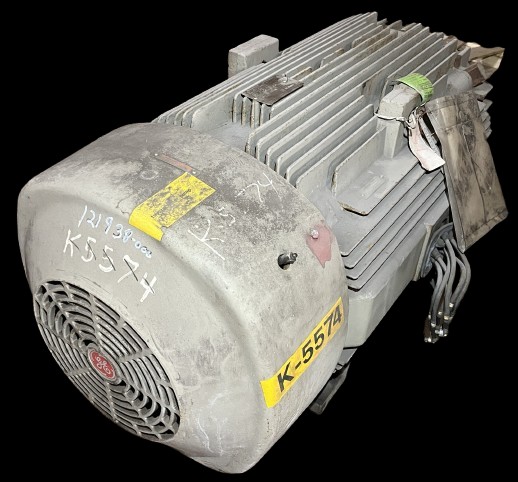

300 HP, 1785 RPM, 460V, GENERAL ELECTRIC, 449TS, INDUCTION AC MOTOR
 "12193800000 300 HP, 1785 RPM, 460V, GENERAL ELECTRIC, 449TS, INDUCTION AC MOTOR")
 "12193800000 300 HP, 1785 RPM, 460V, GENERAL ELECTRIC, 449TS, INDUCTION AC MOTOR")
 "12193800000 300 HP, 1785 RPM, 460V, GENERAL ELECTRIC, 449TS, INDUCTION AC MOTOR")
 "12193800000 300 HP, 1785 RPM, 460V, GENERAL ELECTRIC, 449TS, INDUCTION AC MOTOR")
| INVENTORY ID | 12193800000 |
| TITLE | 300 HP, 1785 RPM, 460V, GENERAL ELECTRIC, 449TS, INDUCTION AC MOTOR |
| HORSEPOWER | 300 |
| SPEED NAMEPLATE | 1785 |
| VOLTAGE | 460 |
| MANUFACTURER | GENERAL ELECTRIC |
| FRAME | 449TS |
| ENCLOSURE | TEFC |
| SHAFT | SESS |
| DESIGN | B |
| CODE | G |
| TYPE | KS |
| INSULATION CLASS | F |
| BEARINGS | A/F |
| SERVICE FACTOR | 1.15 |
| PHASE | 3 |
| FREQUENCY | 60 |
| AMPERAGE | 330 |
| SERIAL NUMBER OR ID NUMBER | NLG033036 |
| MODEL NUMBER OR STYLE NUMBER | 5KS449SS2082DB |
| WEIGHT | 2890 |
| DUTY | CONT |
| TEMPERATURE RISE | 40 |
| CAST IRON FRAME | YES |
| CAST ALUM FRAME | NO |
| LEADS FACING DRIVE END | LEFT |
| SHAFT HEIGHT | 10 1/2" |
| DRIVE SHAFT DIAMETER | 2 3/8" |
| DRIVE SHAFT LENGTH | 5" |
