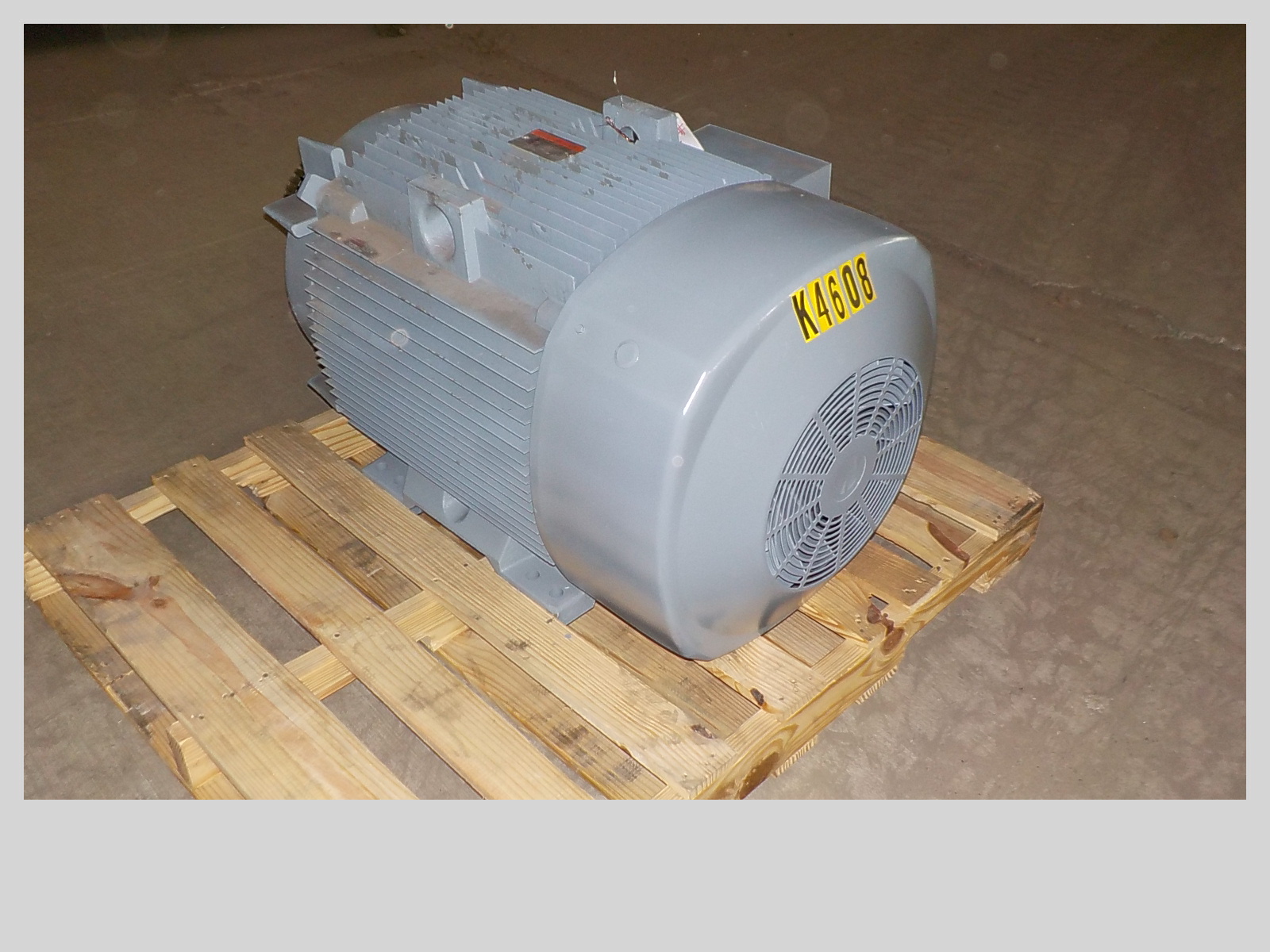

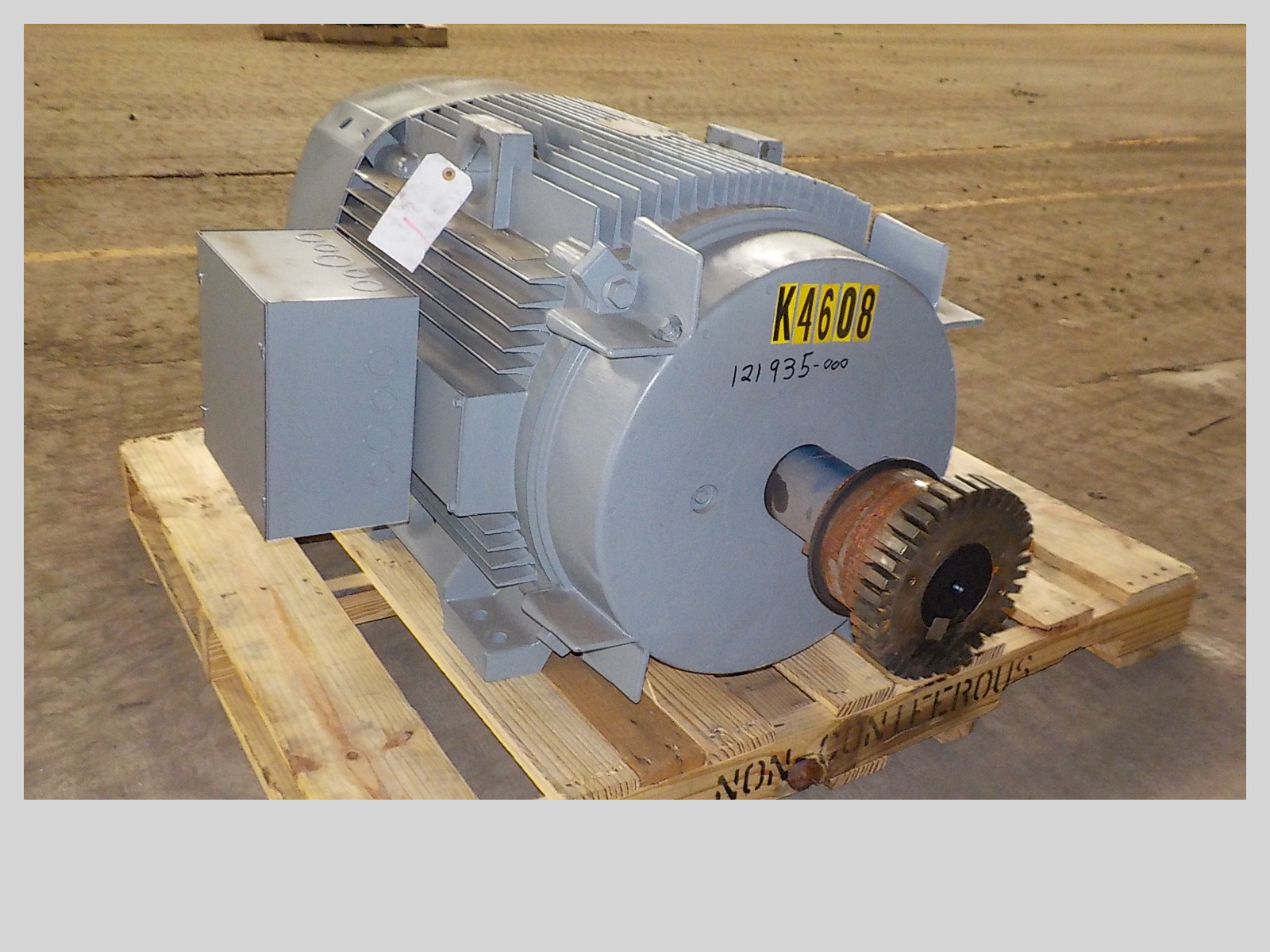

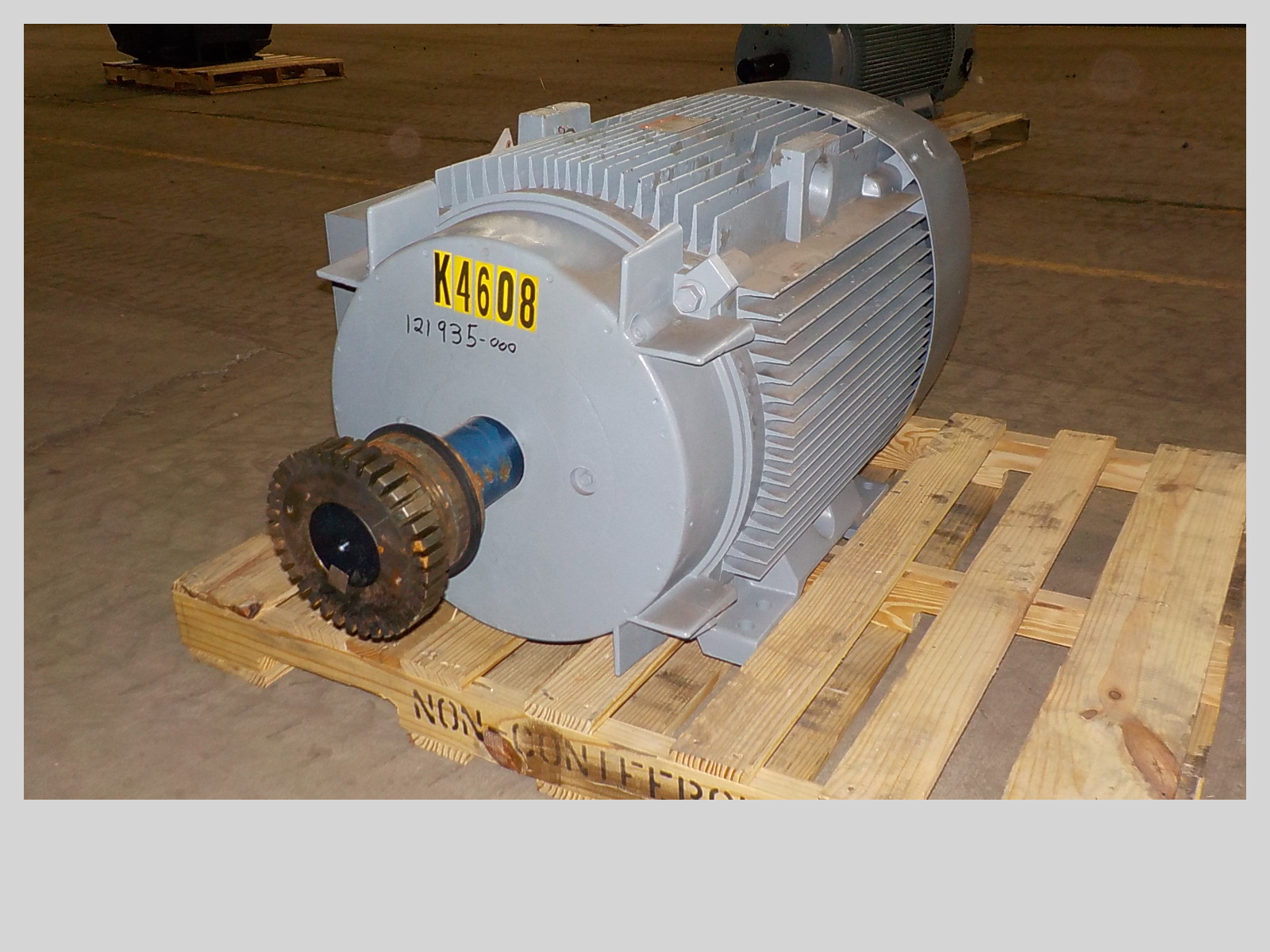

150 HP, 1190 RPM, 460V, GENERAL ELECTRIC, 445T, INDUCTION AC MOTOR
 "12193500000 150 HP, 1190 RPM, 460V, GENERAL ELECTRIC, 445T, INDUCTION AC MOTOR")
 "12193500000 150 HP, 1190 RPM, 460V, GENERAL ELECTRIC, 445T, INDUCTION AC MOTOR")
 "12193500000 150 HP, 1190 RPM, 460V, GENERAL ELECTRIC, 445T, INDUCTION AC MOTOR")
| INVENTORY ID | 12193500000 |
| TITLE | 150 HP, 1190 RPM, 460V, GENERAL ELECTRIC, 445T, INDUCTION AC MOTOR |
| HORSEPOWER | 150 |
| SPEED NAMEPLATE | 1190 |
| VOLTAGE | 460 |
| MANUFACTURER | GENERAL ELECTRIC |
| FRAME | 445T |
| ENCLOSURE | TEFC |
| SHAFT | SESS |
| DESIGN | B |
| CODE | G |
| TYPE | K |
| INSULATION CLASS | F |
| BEARINGS | A/F |
| SERVICE FACTOR | 1.0 |
| PHASE | 3 |
| FREQUENCY | 60 |
| AMPERAGE | 173 |
| SERIAL NUMBER OR ID NUMBER | DW164037 |
| MODEL NUMBER OR STYLE NUMBER | 5K445BL391 |
| WEIGHT | 2,090 |
| DUTY | CONT |
| TEMPERATURE RISE | 40 |
| CAST IRON FRAME | NO |
| CAST ALUM FRAME | YES |
| LEADS FACING DRIVE END | LEFT |
| SHAFT HEIGHT | 11" |
| DRIVE SHAFT DIAMETER | 3 3/8" |
| DRIVE SHAFT LENGTH | 8 3/4" |
