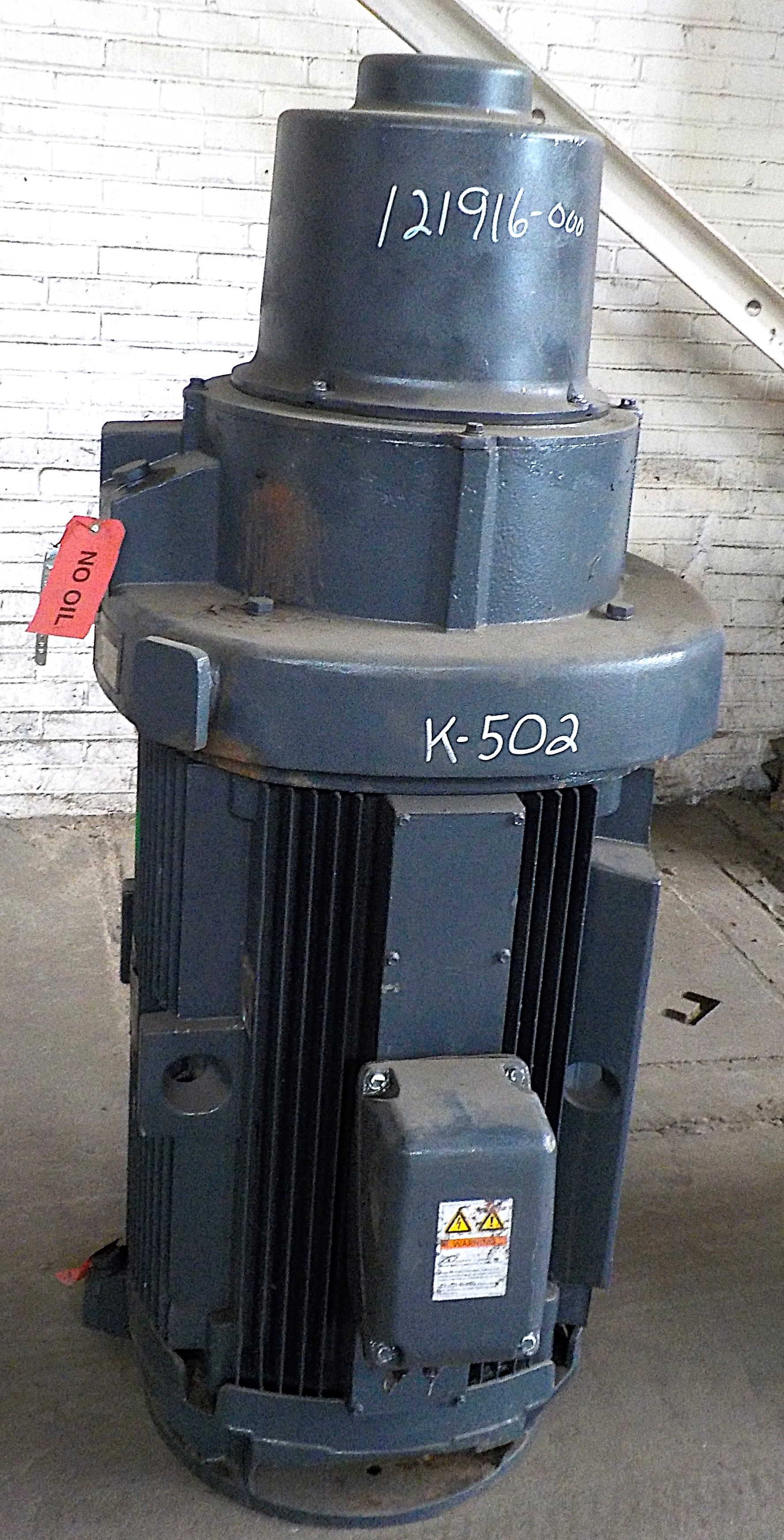

300 HP, 1785 RPM, 460V, GENERAL ELECTRIC, L449TP20, AC VERTICAL PUMP MOTOR WITH HOLLOW SHAFT
 "12191600000 300 HP, 1785 RPM, 460V, GENERAL ELECTRIC, L449TP20, AC VERTICAL PUMP MOTOR WITH HOLLOW SHAFT")
 "12191600000 300 HP, 1785 RPM, 460V, GENERAL ELECTRIC, L449TP20, AC VERTICAL PUMP MOTOR WITH HOLLOW SHAFT")
| INVENTORY ID | 12191600000 |
| TITLE | 300 HP, 1785 RPM, 460V, GENERAL ELECTRIC, L449TP20, AC VERTICAL PUMP MOTOR WITH HOLLOW SHAFT |
| HP | 300 |
| RPM | 1785 |
| VOLTAGE 1 | 460 |
| MANUFACTURER | GENERAL ELECTRIC |
| FRAME | L449TP20 |
| ENCLOSURE | TEFC |
| SHAFT TYPE | HOLLOW NO RACHET |
| DESIGN | B |
| CODE | G |
| TYPE | I |
| UPPER BEARINGS | 6219C3NTN |
| LOWER BEARINGS | 3-7228BGNTN |
| THRUST | N/A |
| SERVICE FACTOR | 1.15 |
| PHASE | 3 |
| HERTZ | 60 |
| AMPS | 360 |
| SERIAL/ID NUMBER | 66072034 |
| MODEL/STYLE NUMBER | 5K449DP |
| WEIGHT | 2,000 |
| DUTY | CONT |
| DEGREE TEMP RISE | 40 |
| FLANGE DIAMETER | 20" |
| DIAMETER CTR TO CTR | 15" |
| DIAMETER OF HOLE | 5/8" |
| DRIVE SHAFT DIAMETER | 1 7/8" |
