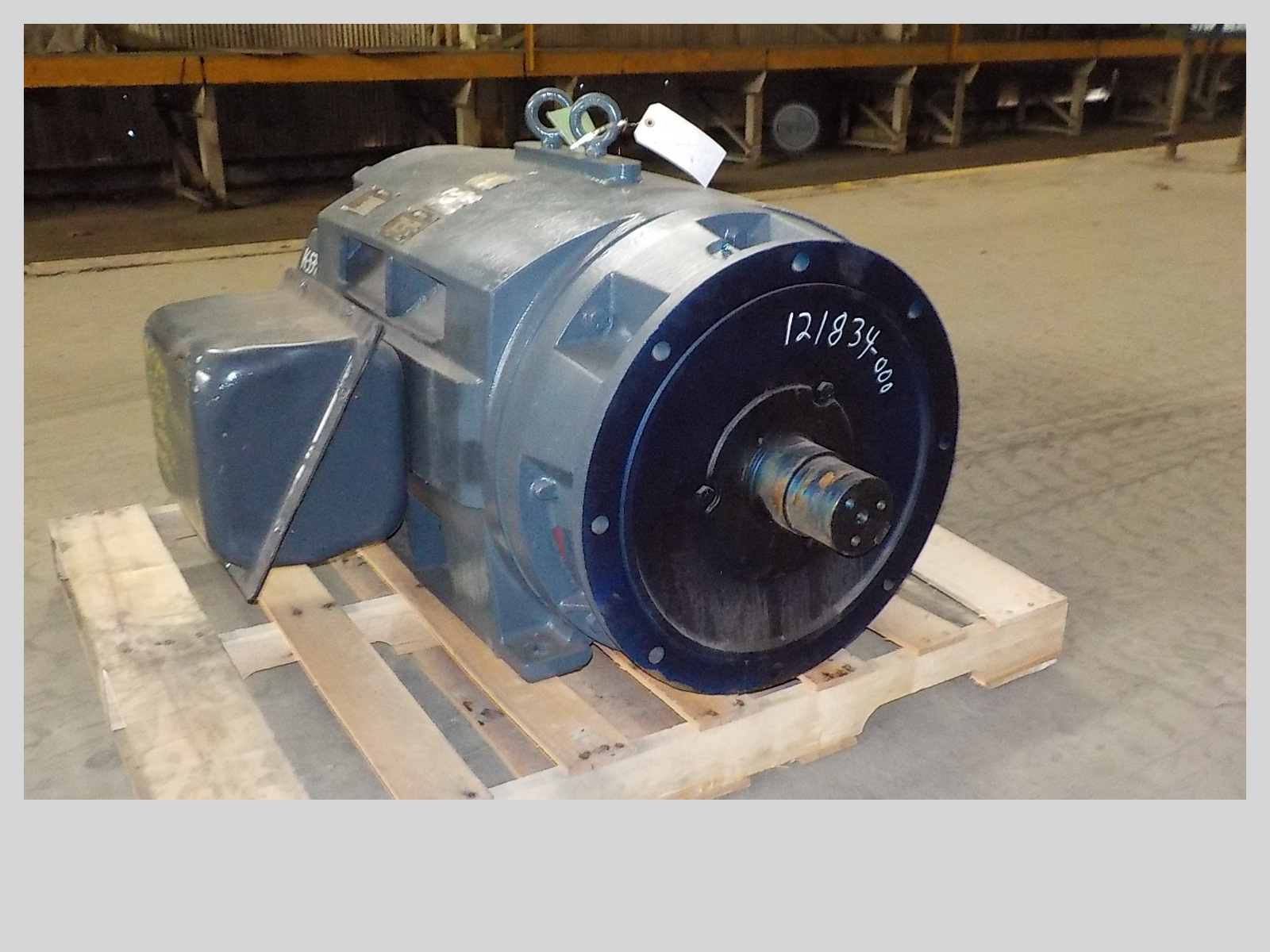

450 HP, 1780 RPM, 460 VOLT, RELIANCE, 449TD FLANGE, INDUCTION AC MOTOR
 "12183400000 450 HP, 1780 RPM, 460 VOLT, RELIANCE, 449TD FLANGE, INDUCTION AC MOTOR")
 "12183400000 450 HP, 1780 RPM, 460 VOLT, RELIANCE, 449TD FLANGE, INDUCTION AC MOTOR")
| INVENTORY ID | 12183400000 |
| TITLE | 450 HP, 1780 RPM, 460 VOLT, RELIANCE, 449TD FLANGE, INDUCTION AC MOTOR |
| HORSEPOWER | 450 |
| SPEED NAMEPLATE | 1780 |
| VOLTAGE | 460 |
| MANUFACTURER | RELIANCE |
| FRAME | 449TD |
| ENCLOSURE | DP |
| SHAFT | SESS |
| DESIGN | B |
| CODE | N/A |
| TYPE | N/A |
| INSULATION CLASS | N/A |
| BEARINGS | A/F |
| SERVICE FACTOR | N/A |
| PHASE | 3 |
| FREQUENCY | 60 |
| AMPERAGE | 180 |
| SERIAL NUMBER OR ID NUMBER | N//A |
| MODEL NUMBER OR STYLE NUMBER | N/A |
| WEIGHT | 2,450 |
| DUTY | CONT |
| TEMPERATURE RISE | N/A |
| CAST IRON FRAME | YES |
| CAST ALUM FRAME | NO |
| LEADS FACING DRIVE END | LEFT |
| SHAFT HEIGHT | 11" |
| DRIVE SHAFT DIAMETER | 4" |
| DRIVE SHAFT LENGTH | 5 3/8" |
