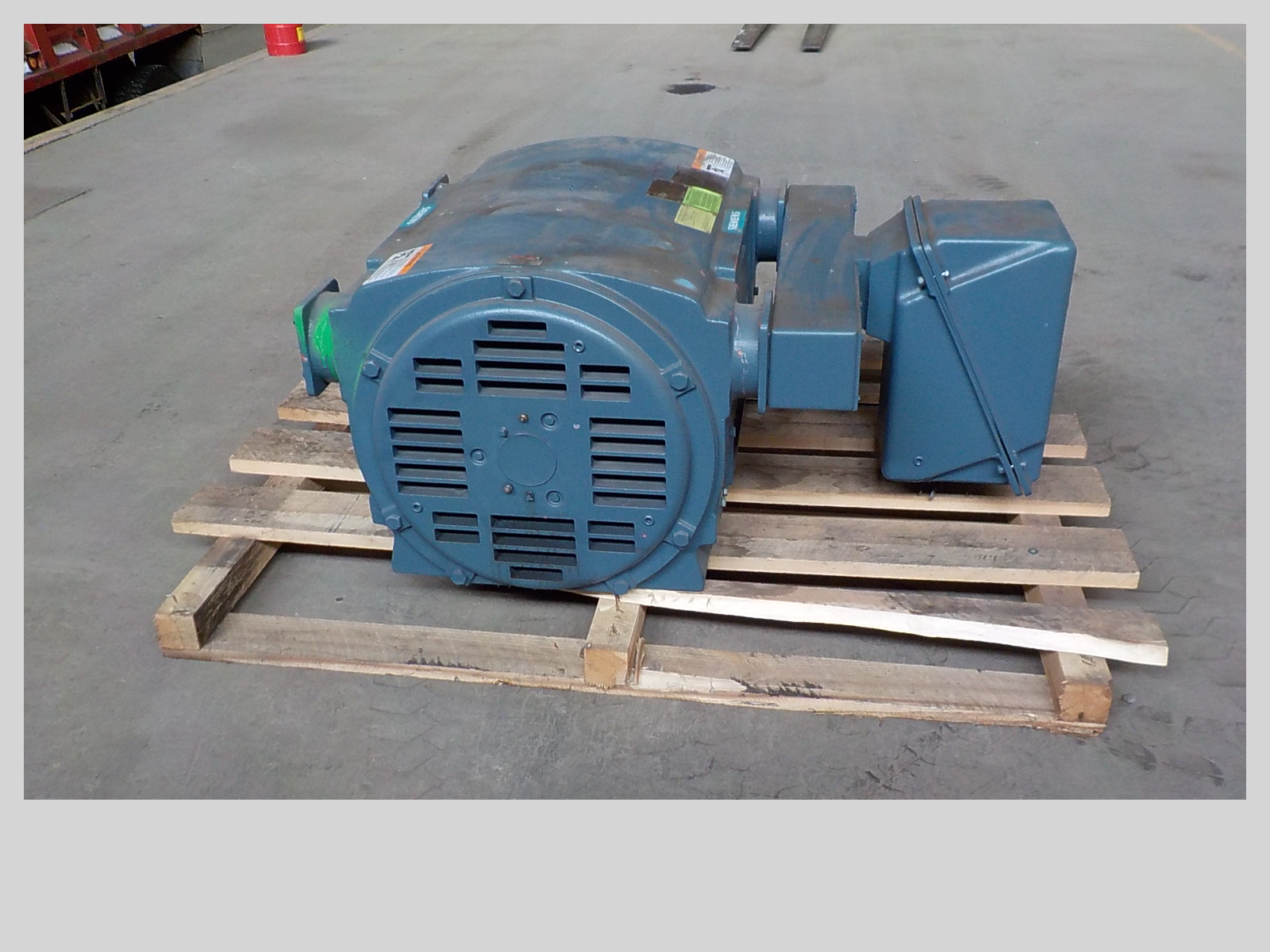

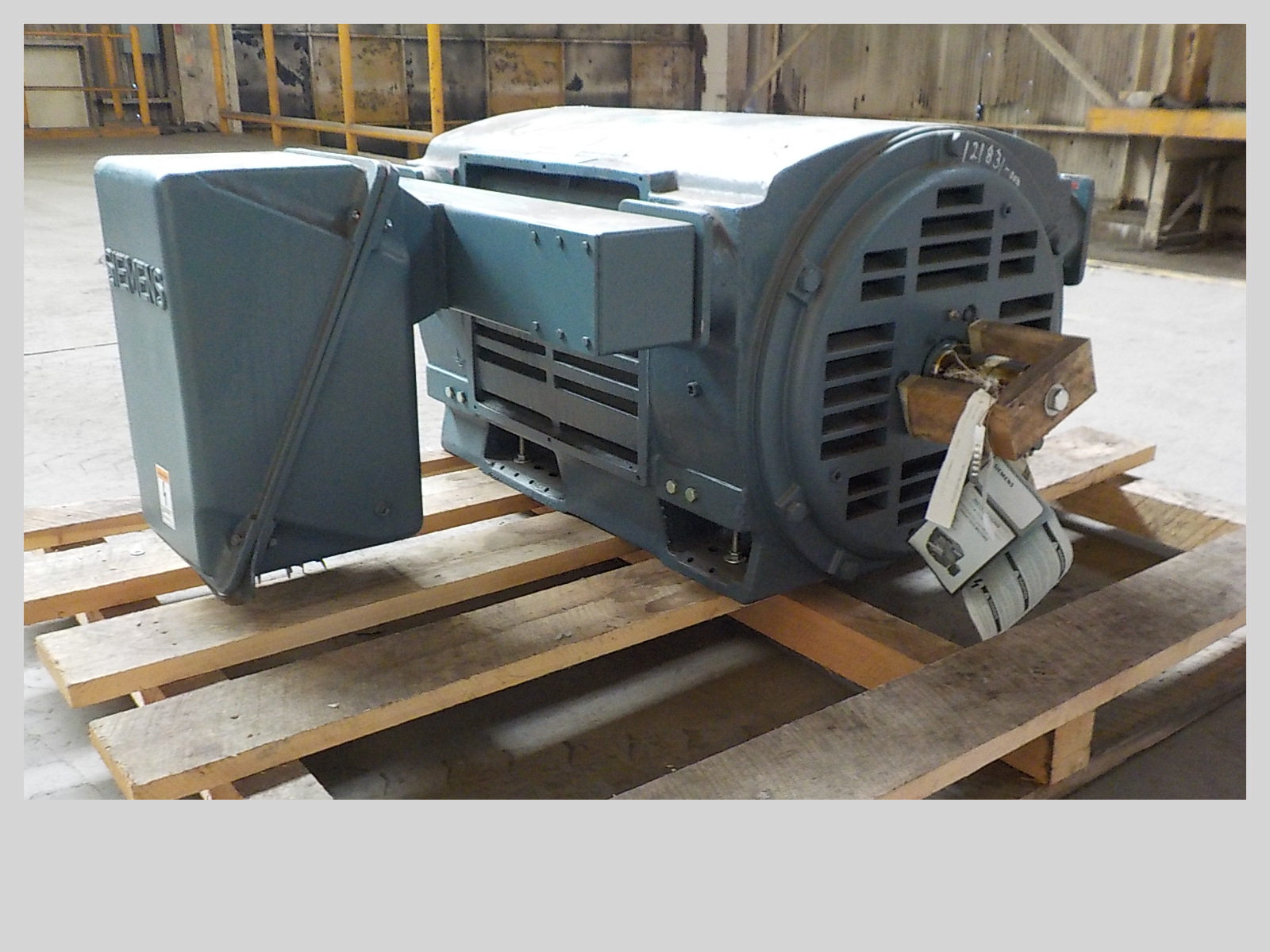

400 HP, 3569 RPM, 460V, SIEMENS, 507S, INDUCTION AC MOTOR
 "12183100000 400 HP, 3569 RPM, 460V, SIEMENS, 507S, INDUCTION AC MOTOR")
 "12183100000 400 HP, 3569 RPM, 460V, SIEMENS, 507S, INDUCTION AC MOTOR")
 "12183100000 400 HP, 3569 RPM, 460V, SIEMENS, 507S, INDUCTION AC MOTOR")
| INVENTORY ID | 12183100000 |
| TITLE | 400 HP, 3569 RPM, 460V, SIEMENS, 507S, INDUCTION AC MOTOR |
| HORSEPOWER | 400 |
| SPEED NAMEPLATE | 3569 |
| VOLTAGE | 460 |
| MANUFACTURER | SIEMENS |
| FRAME | 507S |
| ENCLOSURE | DP |
| SHAFT | SESS |
| DESIGN | B |
| CODE | F |
| TYPE | NCG |
| INSULATION CLASS | F - VPI |
| BEARINGS | A/F |
| SERVICE FACTOR | 1.0 |
| PHASE | 3 |
| FREQUENCY | 60 |
| AMPERAGE | 432 |
| SERIAL NUMBER OR ID NUMBER | 3005561154-10 |
| WEIGHT | 3070 |
| DUTY | CONT |
| TEMPERATURE RISE | 40 |
| CAST IRON FRAME | YES |
| CAST ALUM FRAME | NO |
| LEADS FACING DRIVE END | LEFT |
| SHAFT HEIGHT | 12 1/2" |
| DRIVE SHAFT DIAMETER | 2 5/8" |
| DRIVE SHAFT LENGTH | 5 1/2" |
