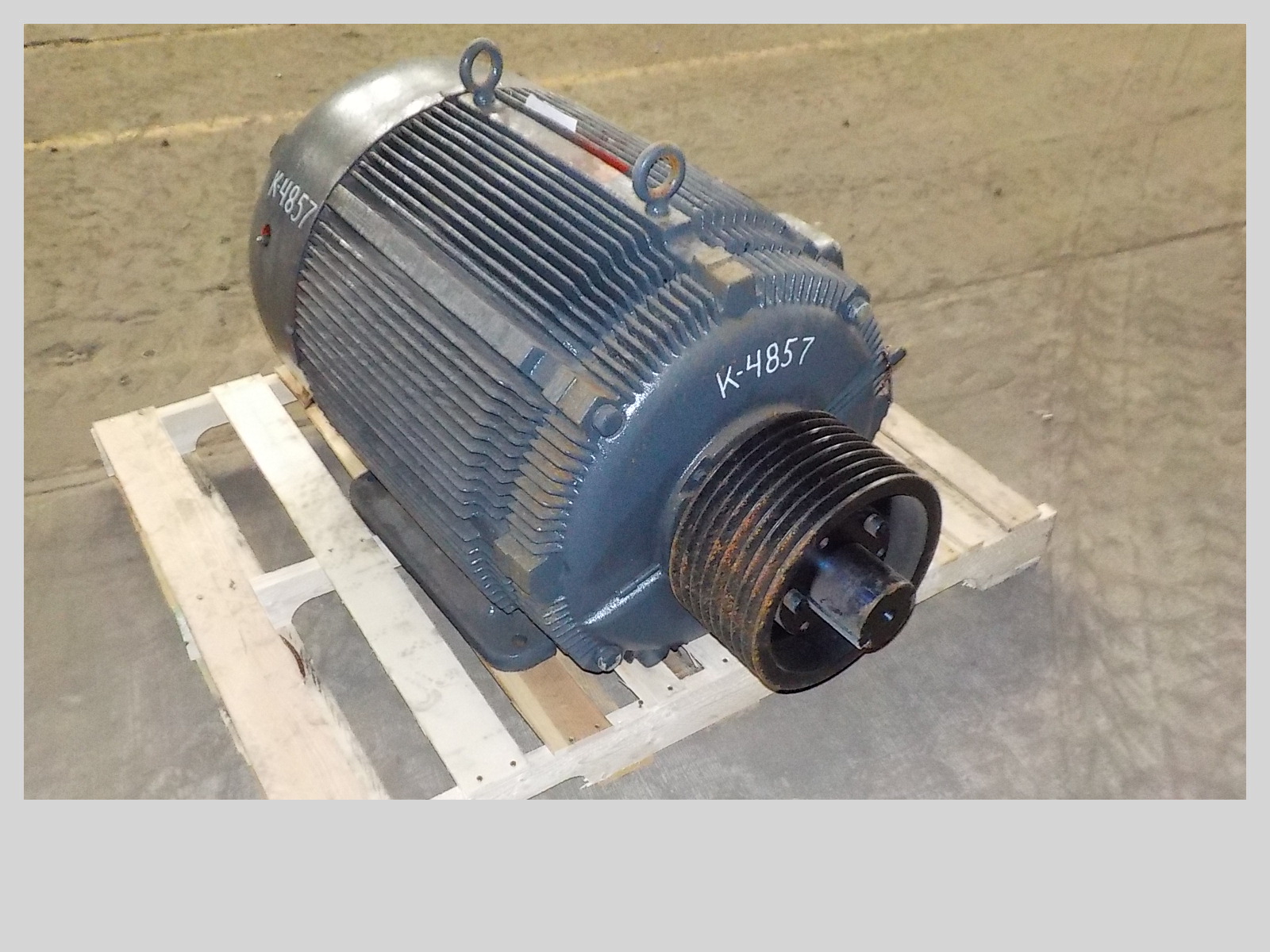

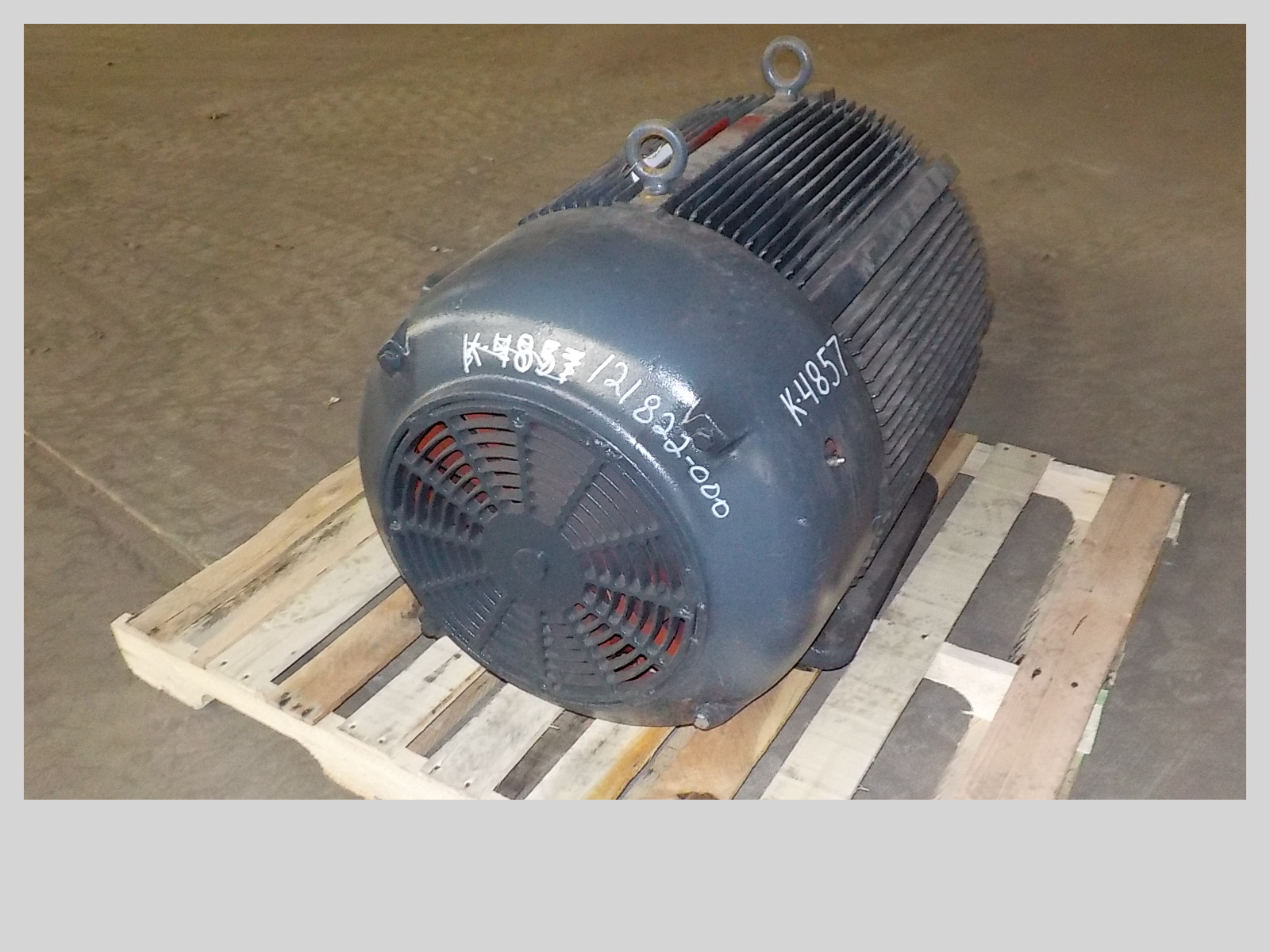

150 HP, 1780 RPM, 460V, WESTINGHOUSE, 445T, INDUCTION AC MOTOR
 "12182200000 150 HP, 1780 RPM, 460V, WESTINGHOUSE, 445T, INDUCTION AC MOTOR")
 "12182200000 150 HP, 1780 RPM, 460V, WESTINGHOUSE, 445T, INDUCTION AC MOTOR")
 "12182200000 150 HP, 1780 RPM, 460V, WESTINGHOUSE, 445T, INDUCTION AC MOTOR")
| INVENTORY ID | 12182200000 |
| TITLE | 150 HP, 1780 RPM, 460V, WESTINGHOUSE, 445T, INDUCTION AC MOTOR |
| HORSEPOWER | 150 |
| SPEED NAMEPLATE | 1780 |
| VOLTAGE | 460 |
| MANUFACTURER | WESTINGHOUSE |
| FRAME | 445T |
| ENCLOSURE | TEFC |
| SHAFT | SESS |
| DESIGN | B |
| CODE | G |
| INSULATION CLASS | F |
| BEARINGS | A/F |
| SERVICE FACTOR | CONT |
| PHASE | 3 |
| FREQUENCY | 60 |
| AMPERAGE | 167 |
| SERIAL NUMBER OR ID NUMBER | 7902 |
| MODEL NUMBER OR STYLE NUMBER | 7738925G09 |
| WEIGHT | 2900 |
| DUTY | CONT |
| TEMPERATURE RISE | 40 |
| CAST IRON FRAME | YES |
| CAST ALUM FRAME | NO |
| LEADS FACING DRIVE END | RIGHT |
| SHAFT HEIGHT | 11" |
| DRIVE SHAFT DIAMETER | 3 3/8" |
| DRIVE SHAFT LENGTH | 8 1/2" |
