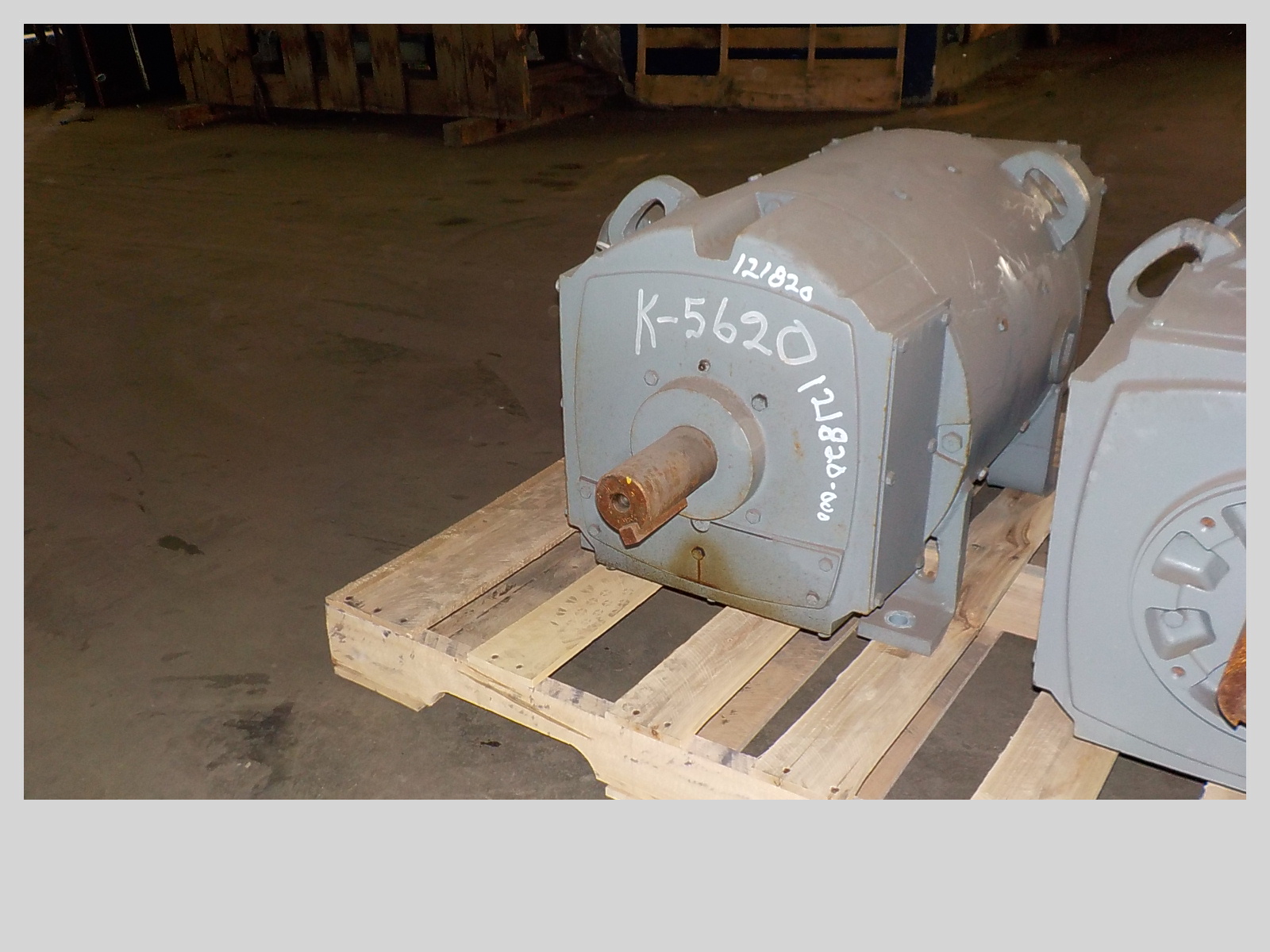

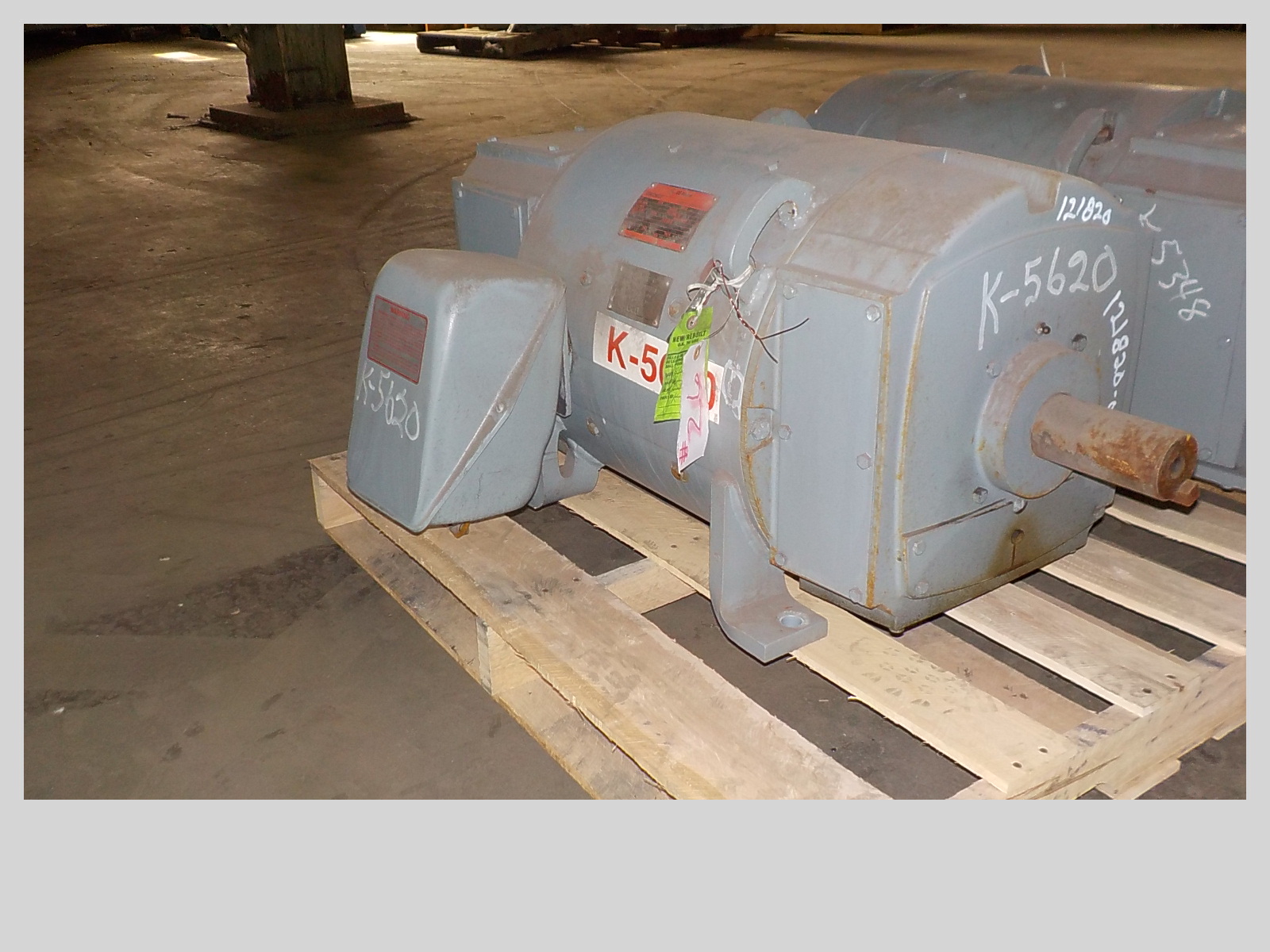

40 HP, 850 RPM, 500 VOLT, GENERAL ELECTRIC, CD368AT, SHUNT USED DC MOTOR
 "12182000000 40 HP, 850 RPM, 500 VOLT, GENERAL ELECTRIC, CD368AT, SHUNT USED DC MOTOR")
 "12182000000 40 HP, 850 RPM, 500 VOLT, GENERAL ELECTRIC, CD368AT, SHUNT USED DC MOTOR")
| INVENTORY ID | 12182000000 |
| TITLE | 40 HP, 850 RPM, 500 VOLT, GENERAL ELECTRIC, CD368AT, SHUNT USED DC MOTOR |
| HORSEPOWER | 40 |
| SPEED | 850 |
| VOLTAGE | 500 |
| MANUFACTURER | GENERAL ELECTRIC |
| FRAME | 368AT |
| TYPE | CD |
| WINDING | SHUNT |
| ENCLOSURE | TENV |
| SHAFT | SESS |
| AMPERAGE | 65 |
| DUTY | 30 MIN |
| BEARINGS | A/F |
| YEAR OF MANUFACTURE | N/A |
| FIELD VOLTAGE | 300 |
| FIELD AMPERAGE | 3.81 |
| FIELD RESISTANCE | 56.9 |
| DEGREE OF TEMPERATURE RISE | 50 |
| SERIAL NUMBER OR ID NUMBER | PM-7-0218-PM |
| MODEL NUMBER OR STYLE NUMBER | 5CD194MA058A002 |
| SERVICE FACTOR | N/A |
| INSULATION CLASS | F |
| POWER SUPPLY CODE | C |
| WEIGHT | 1,040 |
| DRIVE SHAFT DIMENSION | 2 3/8" |
| DRIVE SHAFT LENGTH | 4 3/4" |
| SHAFT HEIGHT | 9" |
| MOTOR LENGTH | 38" |
| WIDTH BETWEEN FEET | 14" |
| LENGTH BETWEEN FEET | 18" |
