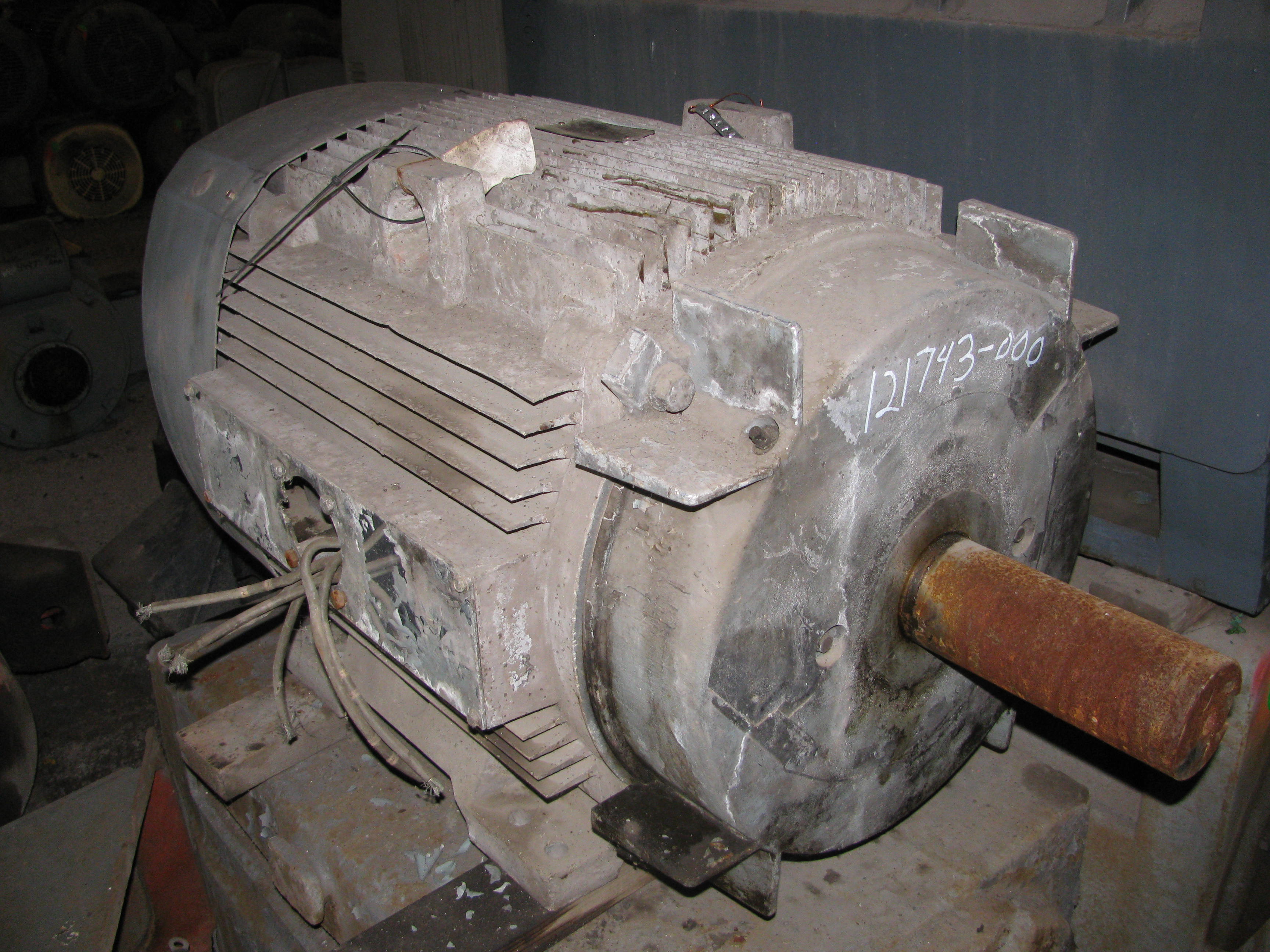

150 HP, 1780 RPM, 460V, GENERAL ELECTRIC, 445T, INDUCTION AC MOTOR
 "12174300000 150 HP, 1780 RPM, 460V, GENERAL ELECTRIC, 445T, INDUCTION AC MOTOR")
 "12174300000 150 HP, 1780 RPM, 460V, GENERAL ELECTRIC, 445T, INDUCTION AC MOTOR")
| INVENTORY ID | 12174300000 |
| TITLE | 150 HP, 1780 RPM, 460V, GENERAL ELECTRIC, 445T, INDUCTION AC MOTOR |
| HORSEPOWER | 150 |
| SPEED NAMEPLATE | 1780 |
| SPEED SYNCHRONOUS | 1800 |
| VOLTAGE | 460 |
| MANUFACTURER | GENERAL ELECTRIC |
| FRAME | 445T |
| ENCLOSURE | TEFC |
| SHAFT | SESS |
| DESIGN | B |
| CODE | G |
| TYPE | K |
| INSULATION CLASS | B |
| BEARINGS | A/F |
| SERVICE FACTOR | 1.15 |
| PHASE | 3 |
| FREQUENCY | 60 |
| AMPERAGE | 176 |
| SERIAL NUMBER OR ID NUMBER | CP145021 |
| MODEL NUMBER OR STYLE NUMBER | 5K445BL205 |
| WEIGHT | 900 |
| DUTY | CONT |
| TEMPERATURE RISE | 40 |
| CAST ALUM FRAME | YES |
| LEADS FACING DRIVE END | LEFT |
| SHAFT HEIGHT | 10 1/2" |
| DRIVE SHAFT DIAMETER | 3 3/8" |
| DRIVE SHAFT LENGTH | 8 7/8" |
