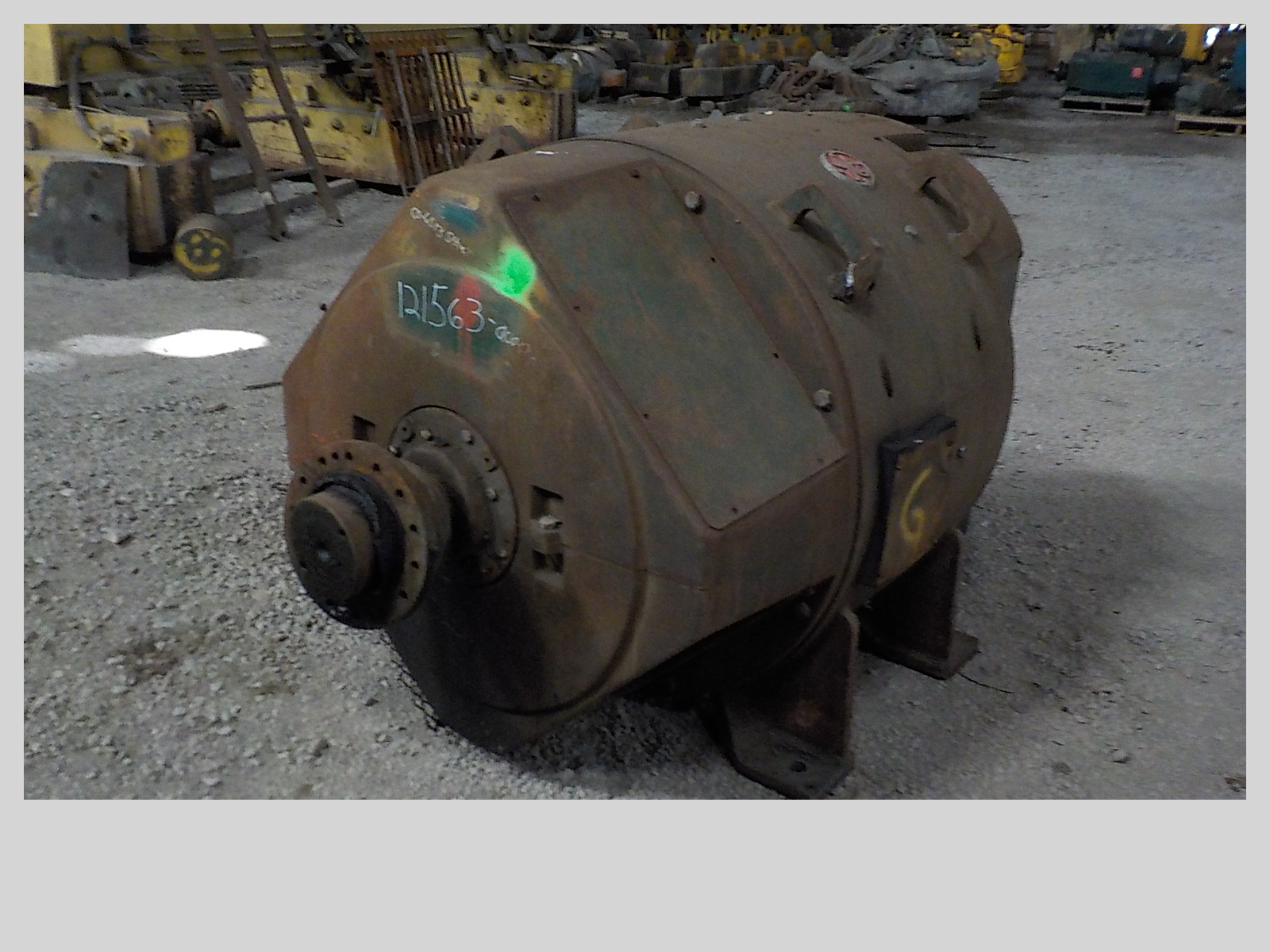

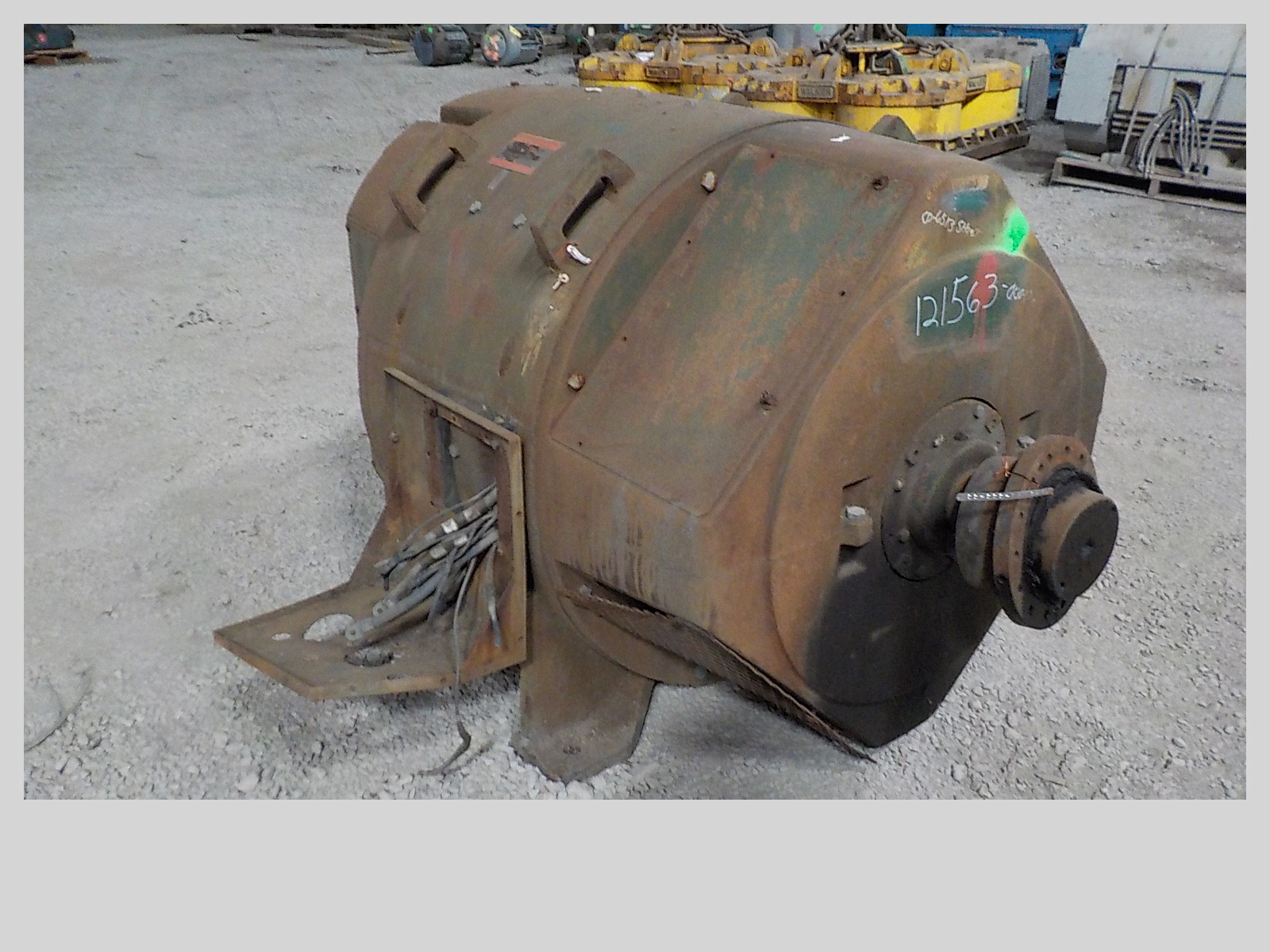

400 KW, 1200 RPM, 500 V, GENERAL ELECTRIC, CD6513, SHUNT, DC GENERATOR
 "12156300000 400 KW, 1200 RPM, 500 V, GENERAL ELECTRIC, CD6513, SHUNT, DC GENERATOR")
 "12156300000 400 KW, 1200 RPM, 500 V, GENERAL ELECTRIC, CD6513, SHUNT, DC GENERATOR")
| INVENTORY ID | 12156300000 |
| TITLE | 400 KW, 1200 RPM, 500 V, GENERAL ELECTRIC, CD6513, SHUNT, DC GENERATOR |
| KW | 400 |
| RPM | 1200 |
| VOLTAGE | 500 |
| AMPS | 800 |
| WINDING | SHUNT |
| FRAME | CD6513 |
| MANUFACTURER | GENERAL ELECTRIC |
| ENCLOSURE | DP-SV |
| SHAFT | DESS |
| DUTY | CONT |
| BEARINGS | 1/4 |
| FIELD AMPS | 12.81 - .494 |
| FIELD OHMS | 7.3 - 153 |
| DEGREE TEMP RISE | 60 |
| MODEL NUMBER OR STYLE NUMBER | 5CD26D29A008236 |
| DRIVE SHAFT DIAMETER | 4 1/2" |
| DRIVE SHAFT LENGTH | 9" |
| BRAKE SHAFT DIAMETER | 5 3/8" |
| BRAKE SHAFT LENGTH | 11 1/4" |
| OVERALL LENGTH | 79" |
| SHAFT HEIGHT | 24" |
| WIDTH BETWEEN FEET | 25" |
| LENGTH BETWEEN FEET | 40" |
