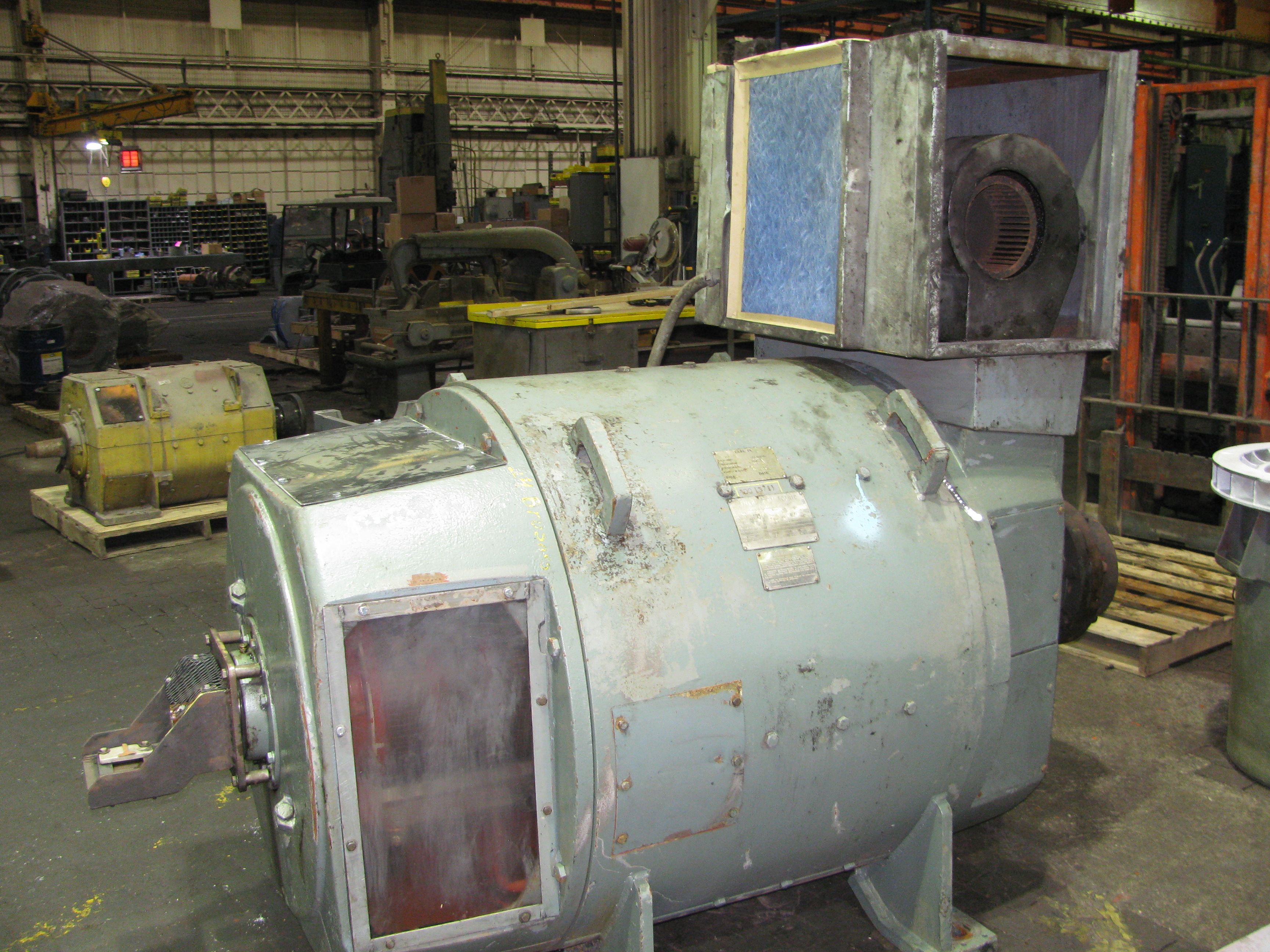

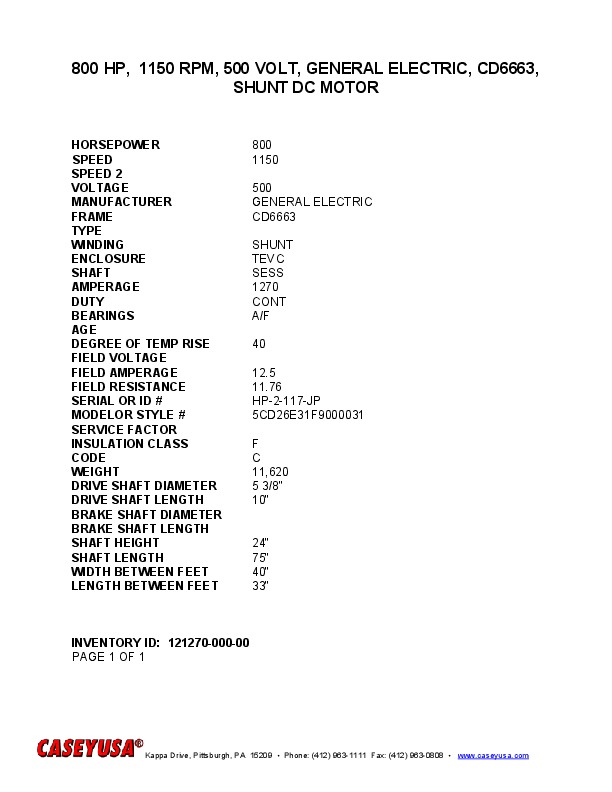

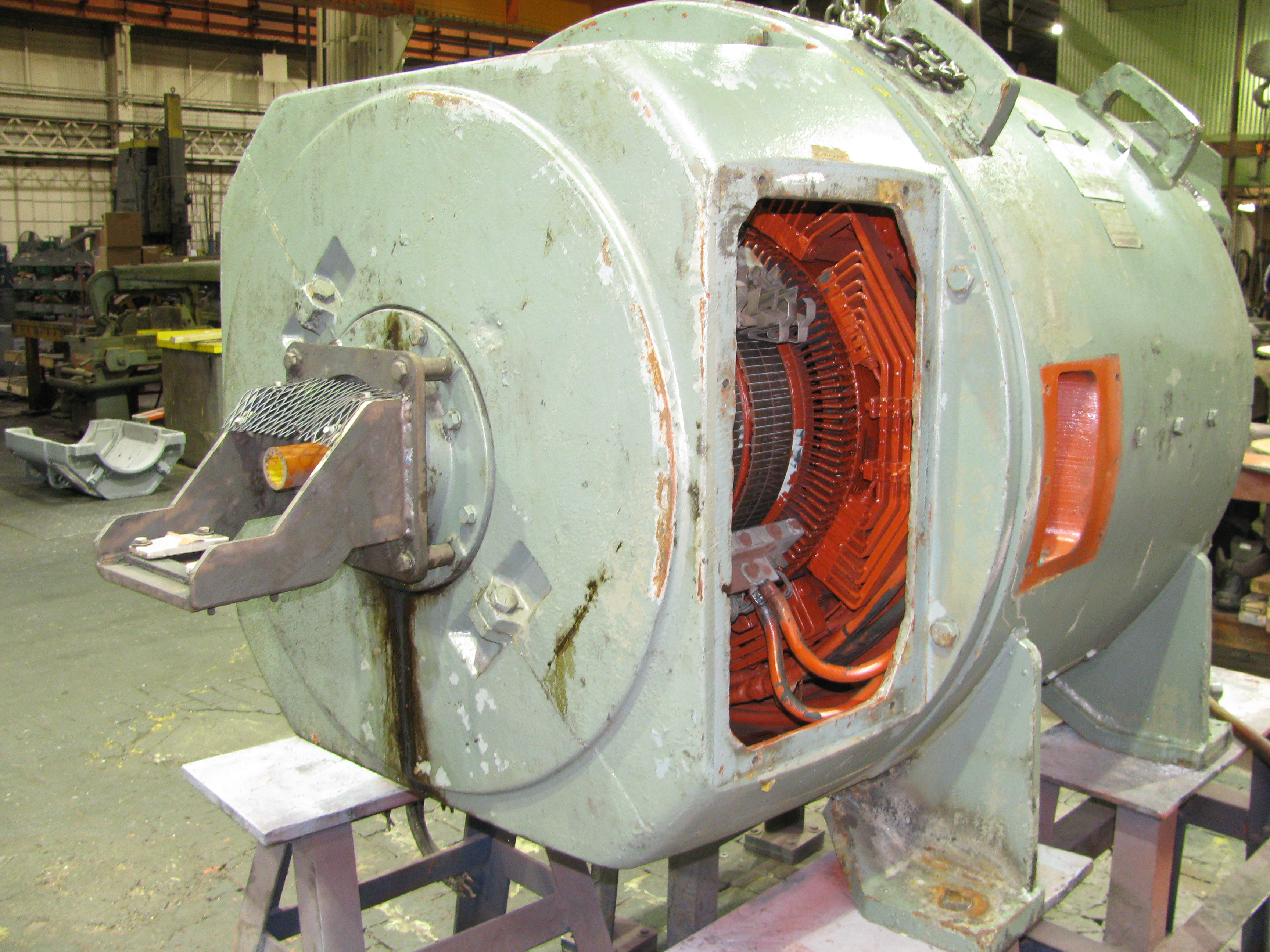

800 HP, 1150 RPM, 500 VOLT, GENERAL ELECTRIC, CD6663, SHUNT DC MOTOR
 "12127000000 800 HP, 1150 RPM, 500 VOLT, GENERAL ELECTRIC, CD6663, SHUNT DC MOTOR")
 "12127000000 800 HP, 1150 RPM, 500 VOLT, GENERAL ELECTRIC, CD6663, SHUNT DC MOTOR")
 "12127000000 800 HP, 1150 RPM, 500 VOLT, GENERAL ELECTRIC, CD6663, SHUNT DC MOTOR")
| INVENTORY ID | 12127000000 |
| TITLE | 800 HP, 1150 RPM, 500 VOLT, GENERAL ELECTRIC, CD6663, SHUNT DC MOTOR |
| HORSEPOWER | 800 |
| SPEED | 1150 |
| VOLTAGE | 500 |
| MANUFACTURER | GENERAL ELECTRIC |
| FRAME | 6663 |
| TYPE | CD |
| WINDING | SHUNT |
| ENCLOSURE | TEVC |
| SHAFT | SESS |
| AMPERAGE | 1270 |
| DUTY | CONT |
| BEARINGS | A/F |
| FIELD AMPERAGE | 12.5 |
| FIELD RESISTANCE | 11.76 |
| DEGREE OF TEMPERATURE RISE | 40 |
| SERIAL NUMBER OR ID NUMBER | HP-2-117-JP |
| MODEL NUMBER OR STYLE NUMBER | 5CD26E31F9000031 |
| INSULATION CLASS | F |
| POWER SUPPLY CODE | C |
| WEIGHT | 11,620 |
| DRIVE SHAFT DIMENSION | 5 3/8" |
| DRIVE SHAFT LENGTH | 10" |
| SHAFT HEIGHT | 24" |
| MOTOR LENGTH | 75" |
| WIDTH BETWEEN FEET | 40" |
| LENGTH BETWEEN FEET | 33" |
