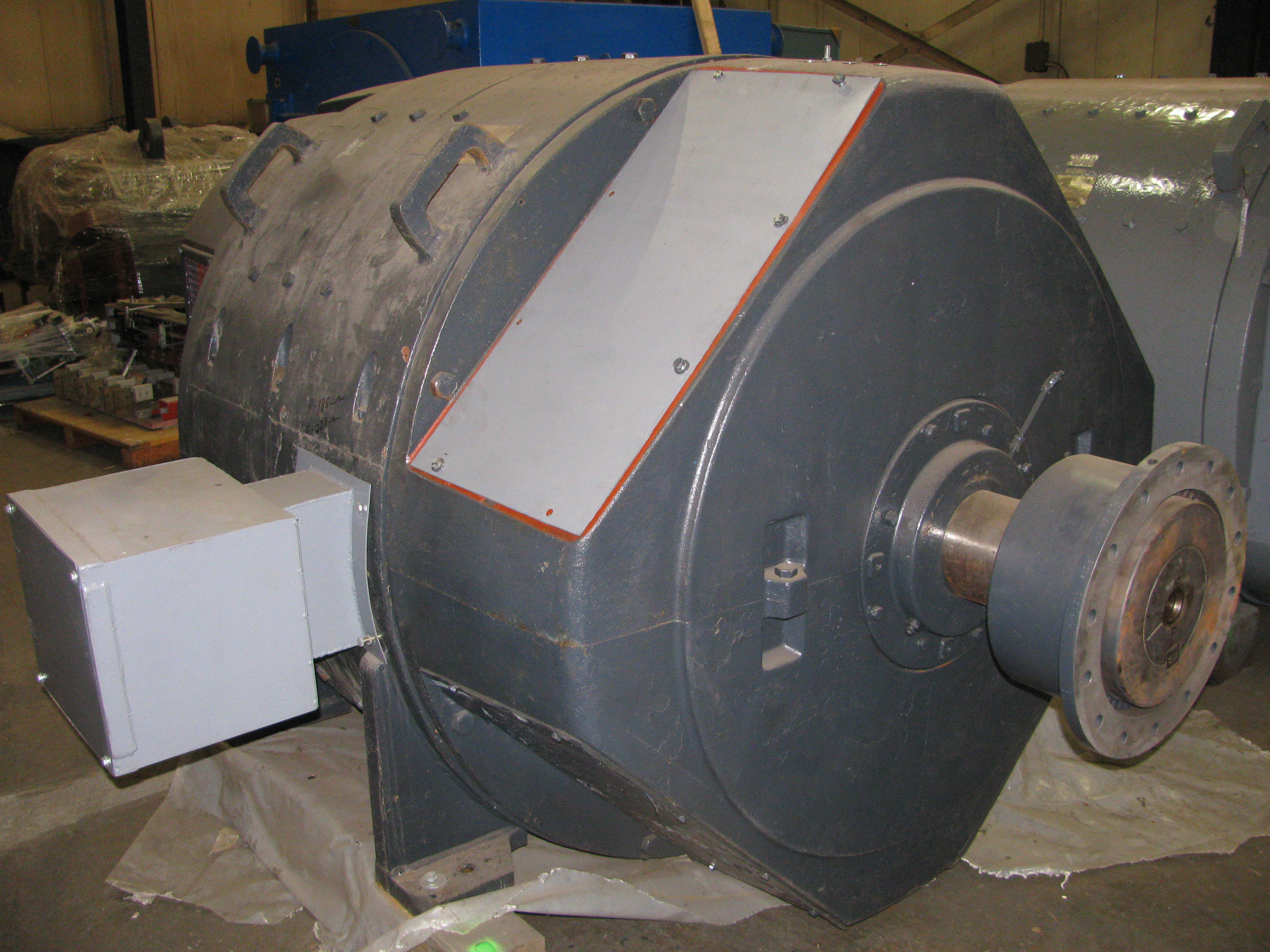

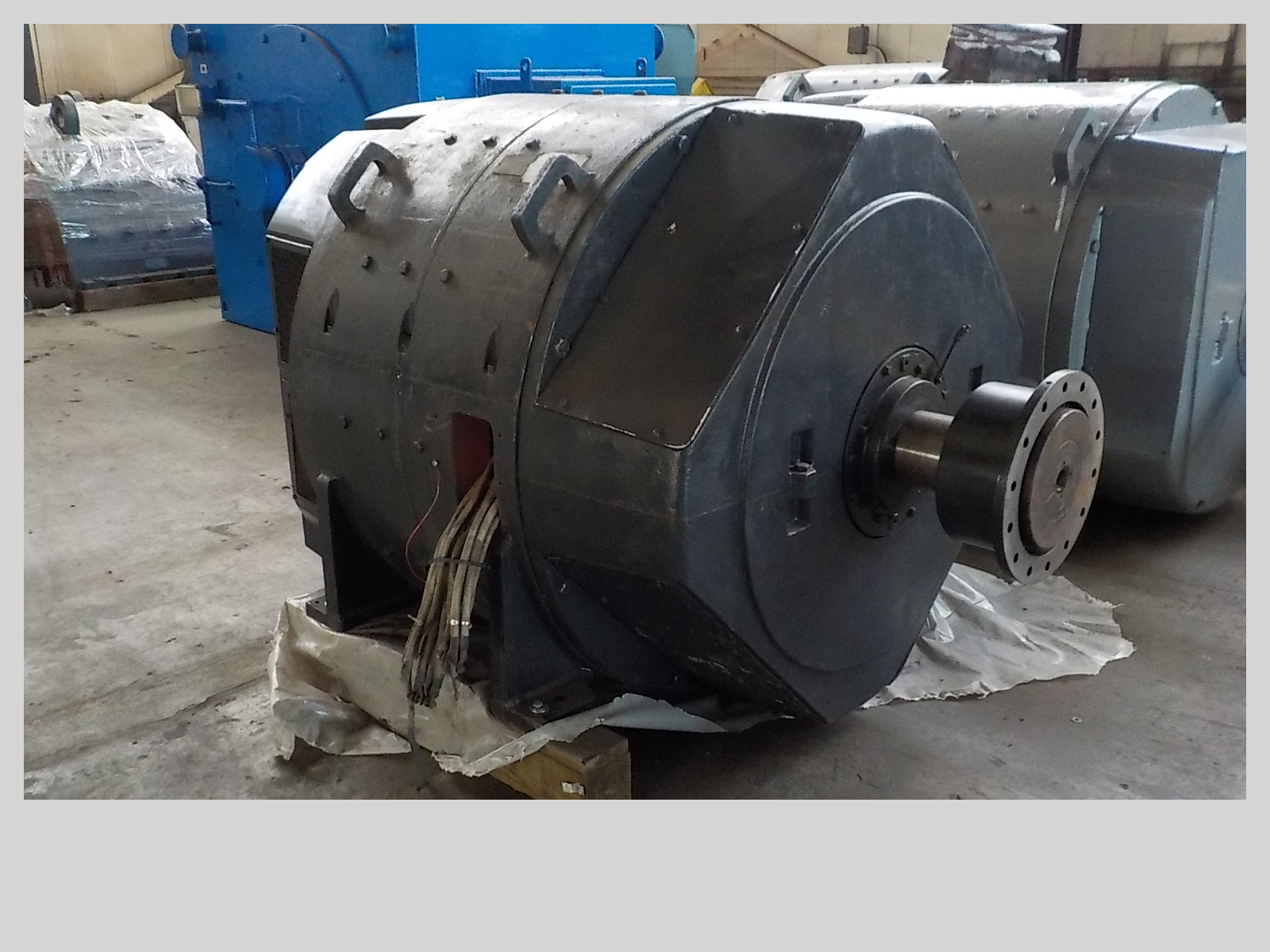

1,000 HP (800 KW) 900 RPM, 630 VOLT, GENERAL ELECTRIC, CD8662, SHUNT DC MOTOR
 "12126800000 1,000 HP (800 KW) 900 RPM, 630 VOLT, GENERAL ELECTRIC, CD8662, SHUNT DC MOTOR")
 "12126800000 1,000 HP (800 KW) 900 RPM, 630 VOLT, GENERAL ELECTRIC, CD8662, SHUNT DC MOTOR")
 "12126800000 1,000 HP (800 KW) 900 RPM, 630 VOLT, GENERAL ELECTRIC, CD8662, SHUNT DC MOTOR")
| INVENTORY ID | 12126800000 |
| TITLE | 1,000 HP (800 KW) 900 RPM, 630 VOLT, GENERAL ELECTRIC, CD8662, SHUNT DC MOTOR |
| HORSEPOWER | 1,000 |
| SPEED | 900 |
| VOLTAGE | 630 |
| MANUFACTURER | GENERAL ELECTRIC |
| FRAME | 8662 |
| TYPE | CD |
| WINDING | SHUNT |
| ENCLOSURE | DP |
| SHAFT | DESS |

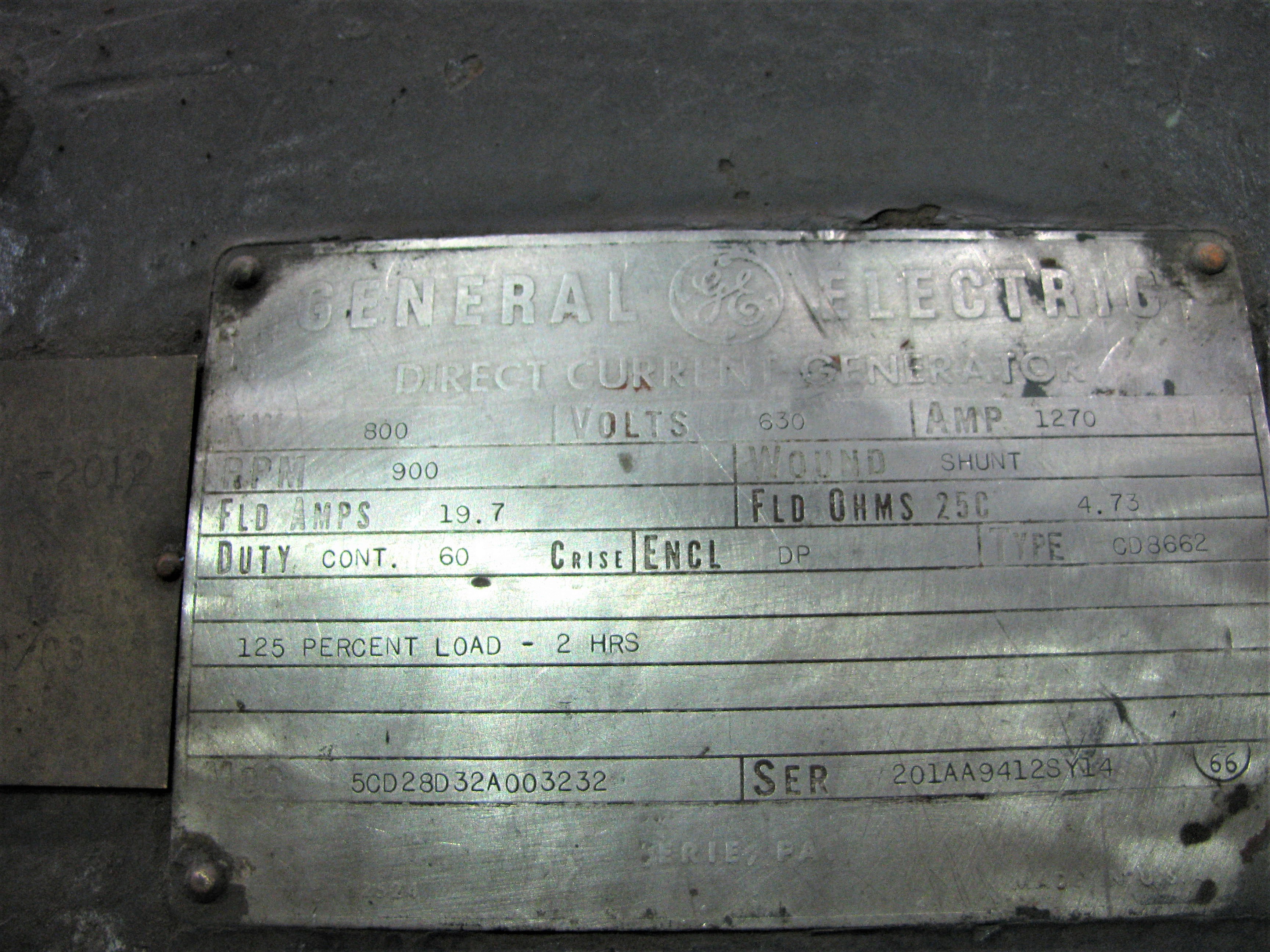

| AMPERAGE | 1270 |
| DUTY | CONT |
| BEARINGS | A/F |
| FIELD AMPERAGE | 19.7 |
| FIELD RESISTANCE | 4.73 |
| SERIAL NUMBER OR ID NUMBER | 201AA9412SY14 |
| MODEL NUMBER OR STYLE NUMBER | 5CD28D32A003232 |
| WEIGHT | 26,100 |
| DRIVE SHAFT DIMENSION | 6 3/4" |
| DRIVE SHAFT LENGTH | 14" |
| BRAKE SHAFT DIAMETER | 6 3/4" |
| BRAKE SHAFT LENGTH | 14" |
| SHAFT HEIGHT | 28" |
| MOTOR LENGTH | 93" |
| WIDTH BETWEEN FEET | 51" |
| LENGTH BETWEEN FEET | 33" |
