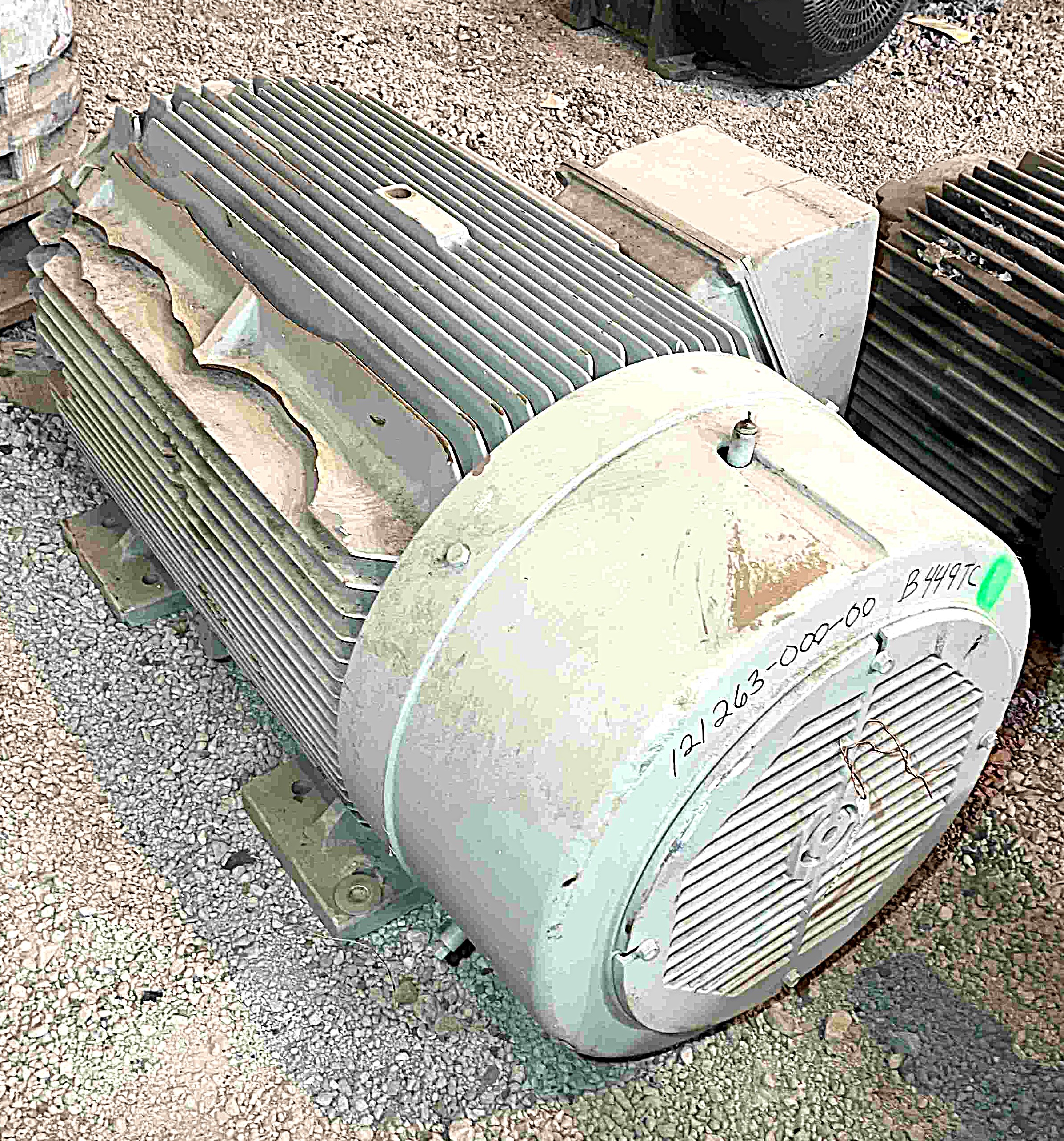

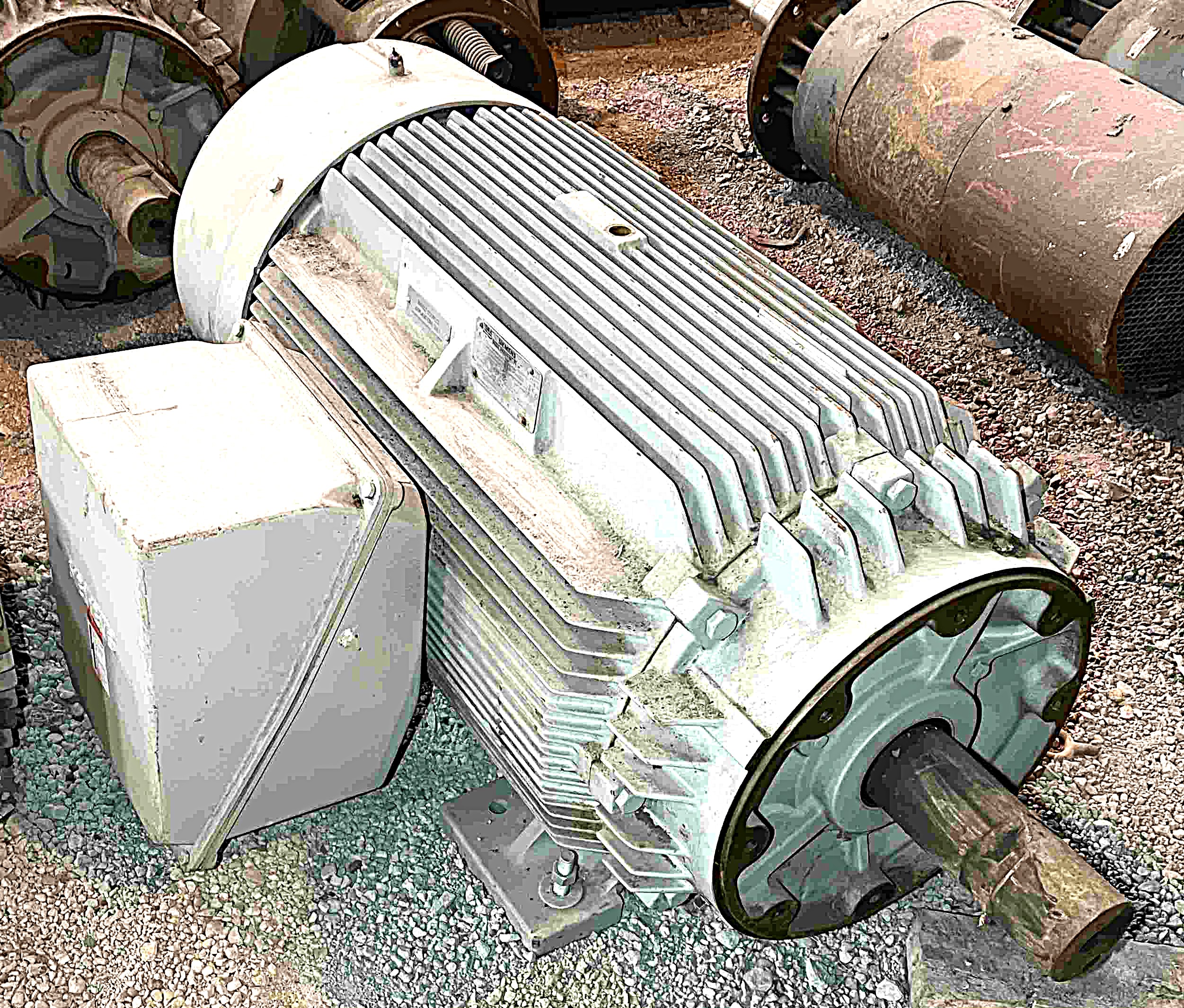

200 HP, 1190 RPM, 460 VOLT, SIEMENS, B449TC, INDUCTION AD MOTOR
 "12126300000 200 HP, 1190 RPM, 460 VOLT, SIEMENS, B449TC, INDUCTION AD MOTOR")
 "12126300000 200 HP, 1190 RPM, 460 VOLT, SIEMENS, B449TC, INDUCTION AD MOTOR")
 "12126300000 200 HP, 1190 RPM, 460 VOLT, SIEMENS, B449TC, INDUCTION AD MOTOR")

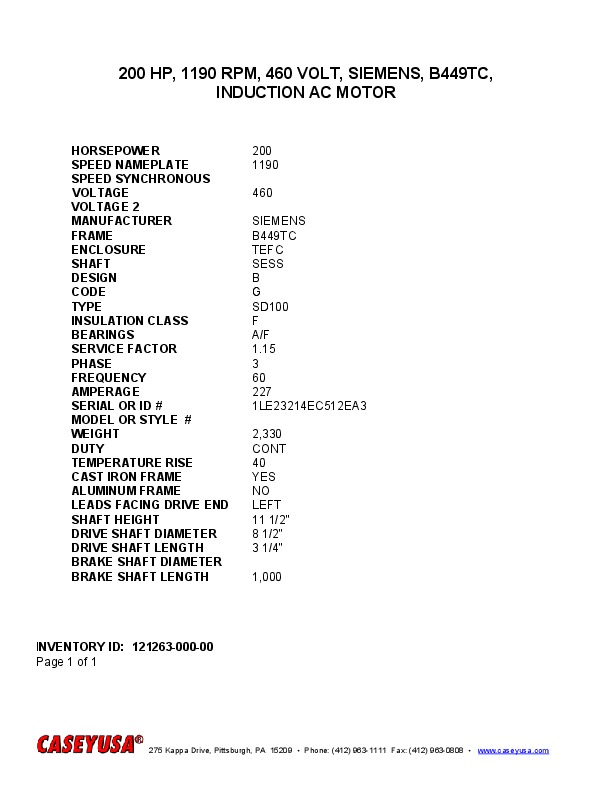

| INVENTORY ID | 12126300000 |
| TITLE | 200 HP, 1190 RPM, 460 VOLT, SIEMENS, B449TC, INDUCTION AD MOTOR |
| HORSEPOWER | 200 |
| SPEED NAMEPLATE | 1190 |
| VOLTAGE | 460 |
| MANUFACTURER | SIEMENS |
| FRAME | B449TC |
| ENCLOSURE | TEFC |
| SHAFT | SESS |
| DESIGN | B |
| CODE | G |
| TYPE | SD100 |
| INSULATION CLASS | F |
| BEARINGS | A/F |
| SERVICE FACTOR | 1.15 |
| PHASE | 3 |
| FREQUENCY | 60 |
| AMPERAGE | 227 |

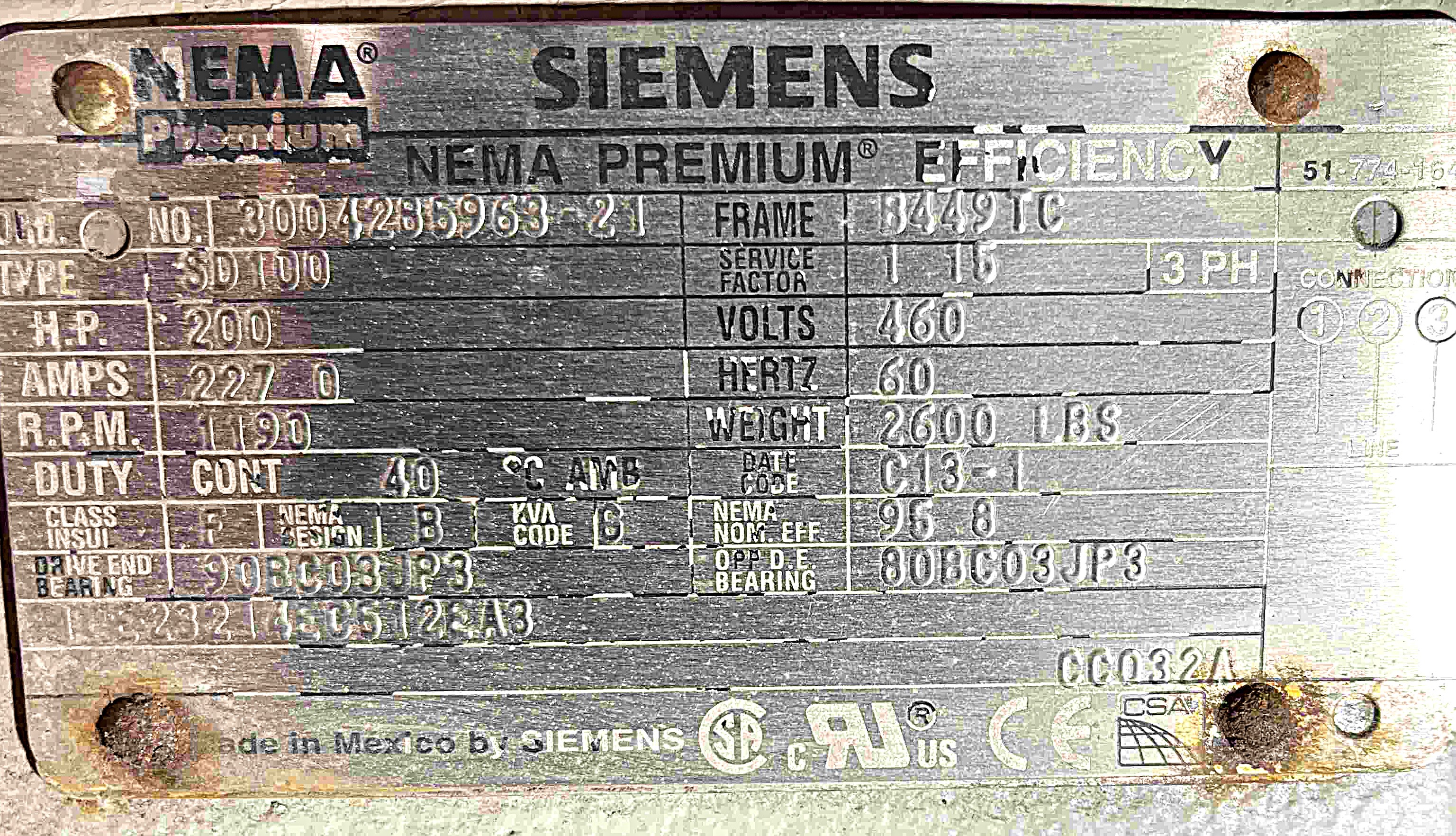

| SERIAL NUMBER OR ID NUMBER | 1LE23214EC512EA3 |
| WEIGHT | 2,330 |
| DUTY | CONT |
| TEMPERATURE RISE | 40 |
| CAST IRON FRAME | YES |
| CAST ALUM FRAME | NO |
| LEADS FACING DRIVE END | LEFT |
| SHAFT HEIGHT | 11 1/2" |
| DRIVE SHAFT DIAMETER | 8 1/2" |
| DRIVE SHAFT LENGTH | 3 1/4" |
| BRAKE SHAFT LENGTH | 1,000 |
