25 AMP, 230 VOLT, FILNOR/SQUARE-D, ROTATING DC HOOK BLOCK CONTROL
 "12113200000 25 AMP, 230 VOLT, FILNOR/SQUARE-D, ROTATING DC HOOK BLOCK CONTROL")
 "12113200000 25 AMP, 230 VOLT, FILNOR/SQUARE-D, ROTATING DC HOOK BLOCK CONTROL")
25 AMP, 230 VOLT, FILNOR/SQUARE-D, ROTATING DC HOOK BLOCK CONTROL
SIZE 1
25 AMPS
230 VOLTS DC
FILLNOR/SQUARE-D

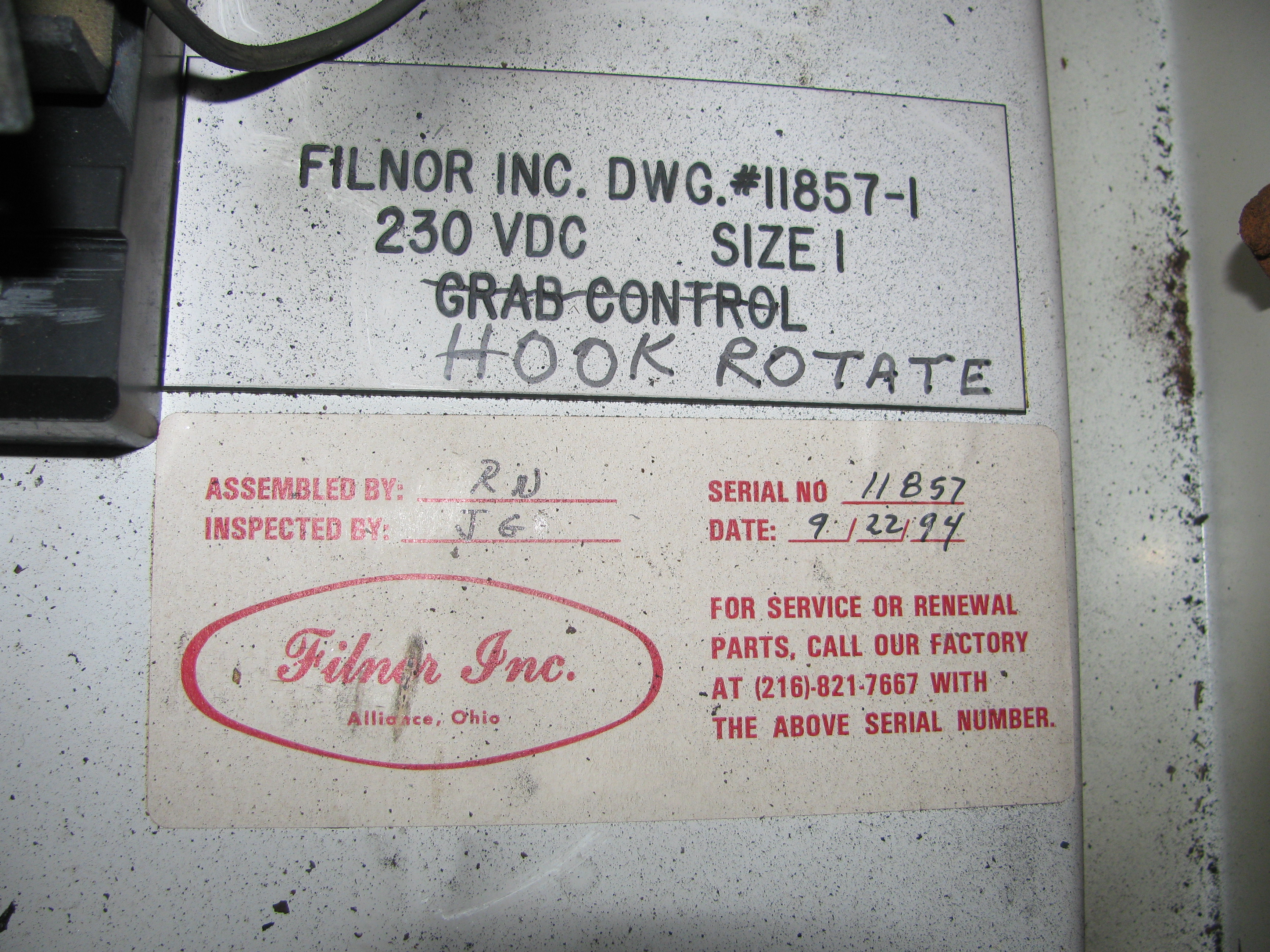

DRAWING 11857-1

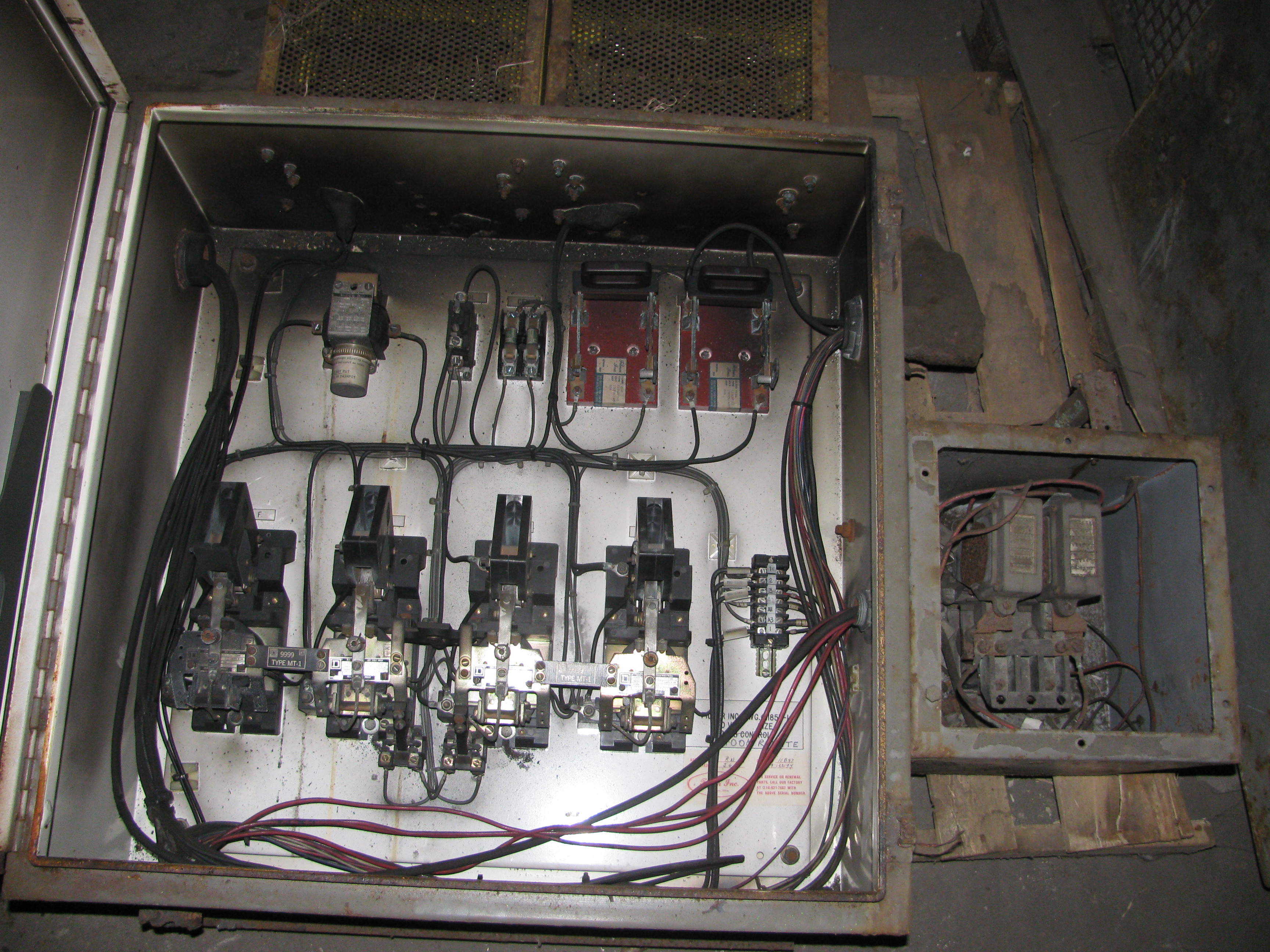

CONSISTING OF:
MAIN: 2-POLE CONTACTOR LOCATED ON BOX ATTACHED TO THE OUTSIDE OF THE ENCLOSURE INSIDE:
(2) 2-POLE FUSED DISCONNECT MAIN CIRCUIT AND CONTROL CIRCUIT1 MAIN MOLDED CASE DC AIR CIRCUIT BREAKER
(2) SIZE 1 FOWARD DIRECTIONAL CONTACTOR MECHANICALLY INTERLOCKED
(1) OVERLOAD
ENCLOSURE: 40" H X 42" W X 13" D"
WITH ACCELERATING RESISTORS MOUNTED ON TOP OF ENCLOSURE

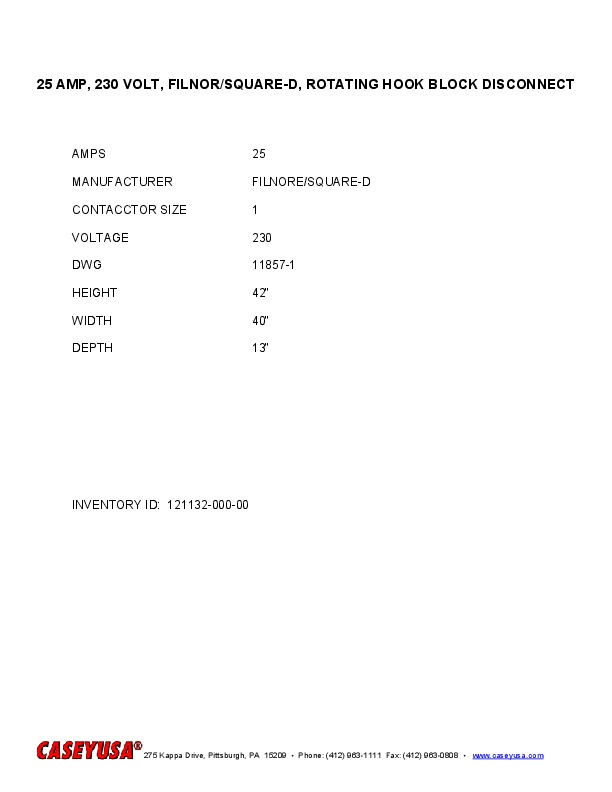

INVENTORY ID: 121132-000-00
| INVENTORY ID | 12113200000 |
| TITLE | 25 AMP, 230 VOLT, FILNOR/SQUARE-D, ROTATING DC HOOK BLOCK CONTROL |
| AMPS | 25 |
| MANUFACTURER | FILNORE/SQUARE-D |
| NEMA SIZE | 1 |
| VOLTS | 230 |
| ENCLOSURE | YES |
| CABINET HEIGHT | 40" |
| CABINET WIDTH | 42" |
| CABINET DEPTH | 13" |
| WIRING DIAGRAM | 11857-1 |
