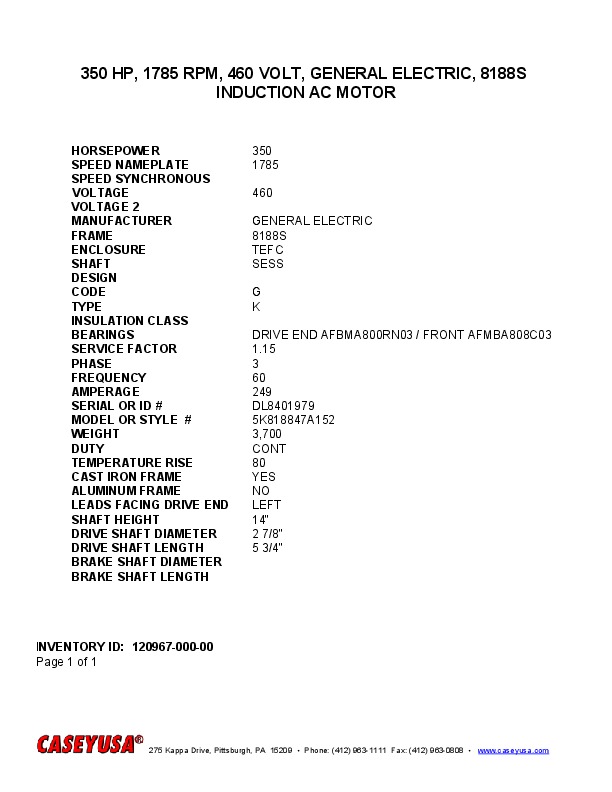

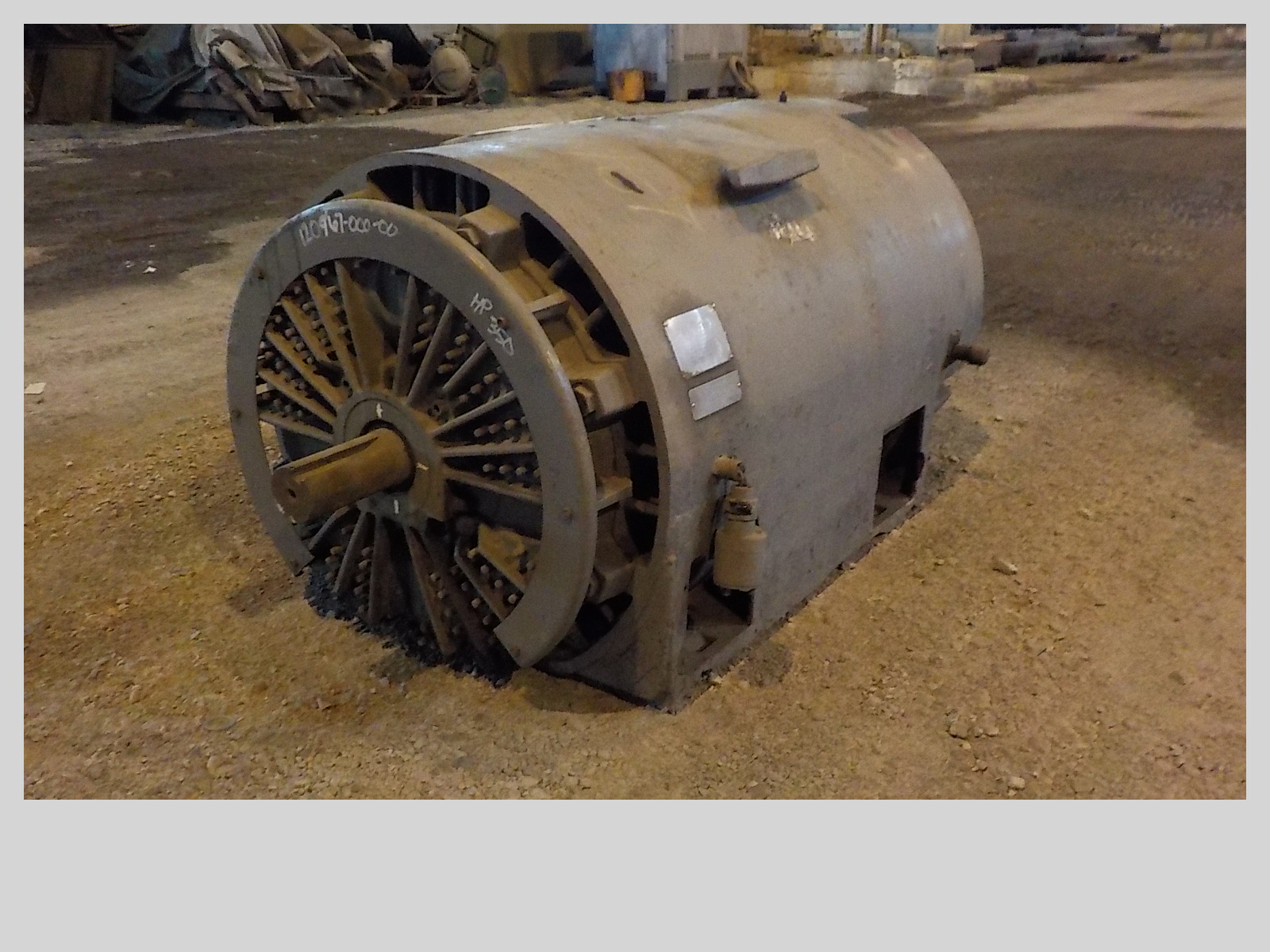

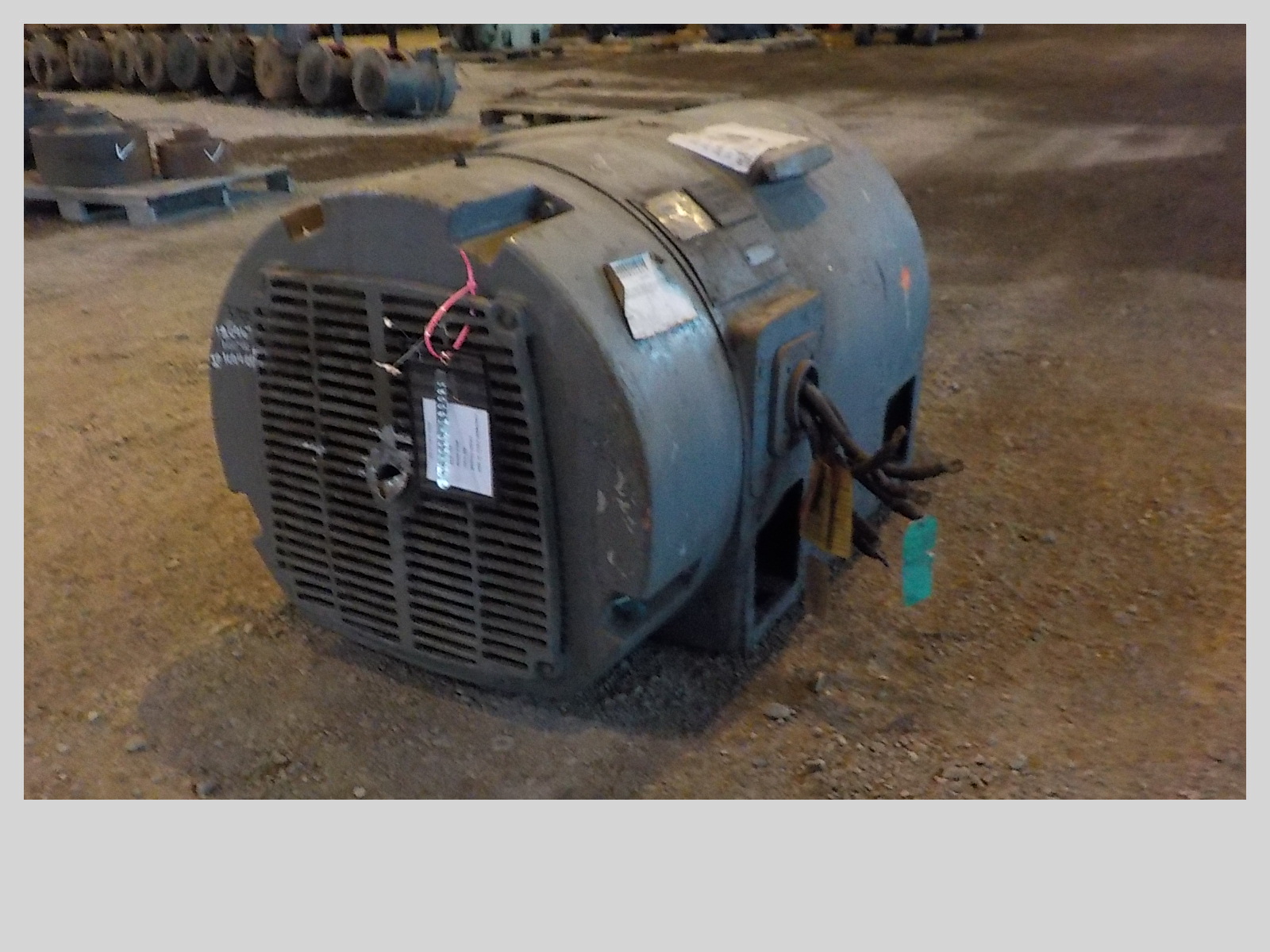

350 HP, 1785 RPM, 460 VOLT, GENERAL ELECTRIC, 8188S INDUCTION AC MOTOR
 "12096700000 350 HP, 1785 RPM, 460 VOLT, GENERAL ELECTRIC, 8188S INDUCTION AC MOTOR")
 "12096700000 350 HP, 1785 RPM, 460 VOLT, GENERAL ELECTRIC, 8188S INDUCTION AC MOTOR")
| INVENTORY ID | 12096700000 |
| TITLE | 350 HP, 1785 RPM, 460 VOLT, GENERAL ELECTRIC, 8188S INDUCTION AC MOTOR |
| HORSEPOWER | 350 |
| SPEED NAMEPLATE | 1785 |
| VOLTAGE | 460 |
| MANUFACTURER | GENERAL ELECTRIC |
| FRAME | 8188S |
| ENCLOSURE | TEFC |
| SHAFT | SESS |
| CODE | G |
| TYPE | K |
| BEARINGS | DRIVE END AFBMA800RN03 / FRONT AFMBA808C03 |
| SERVICE FACTOR | 1.15 |
| PHASE | 3 |
| FREQUENCY | 60 |
| AMPERAGE | 249 |
| SERIAL NUMBER OR ID NUMBER | DL8401979 |
| MODEL NUMBER OR STYLE NUMBER | 5K818847A152 |
| WEIGHT | 3,700 |
| DUTY | CONT |
| TEMPERATURE RISE | 80 |
| CAST IRON FRAME | YES |
| CAST ALUM FRAME | NO |
| LEADS FACING DRIVE END | LEFT |
| SHAFT HEIGHT | 14" |
| DRIVE SHAFT DIAMETER | 2 7/8" |
| DRIVE SHAFT LENGTH | 5 3/4" |
