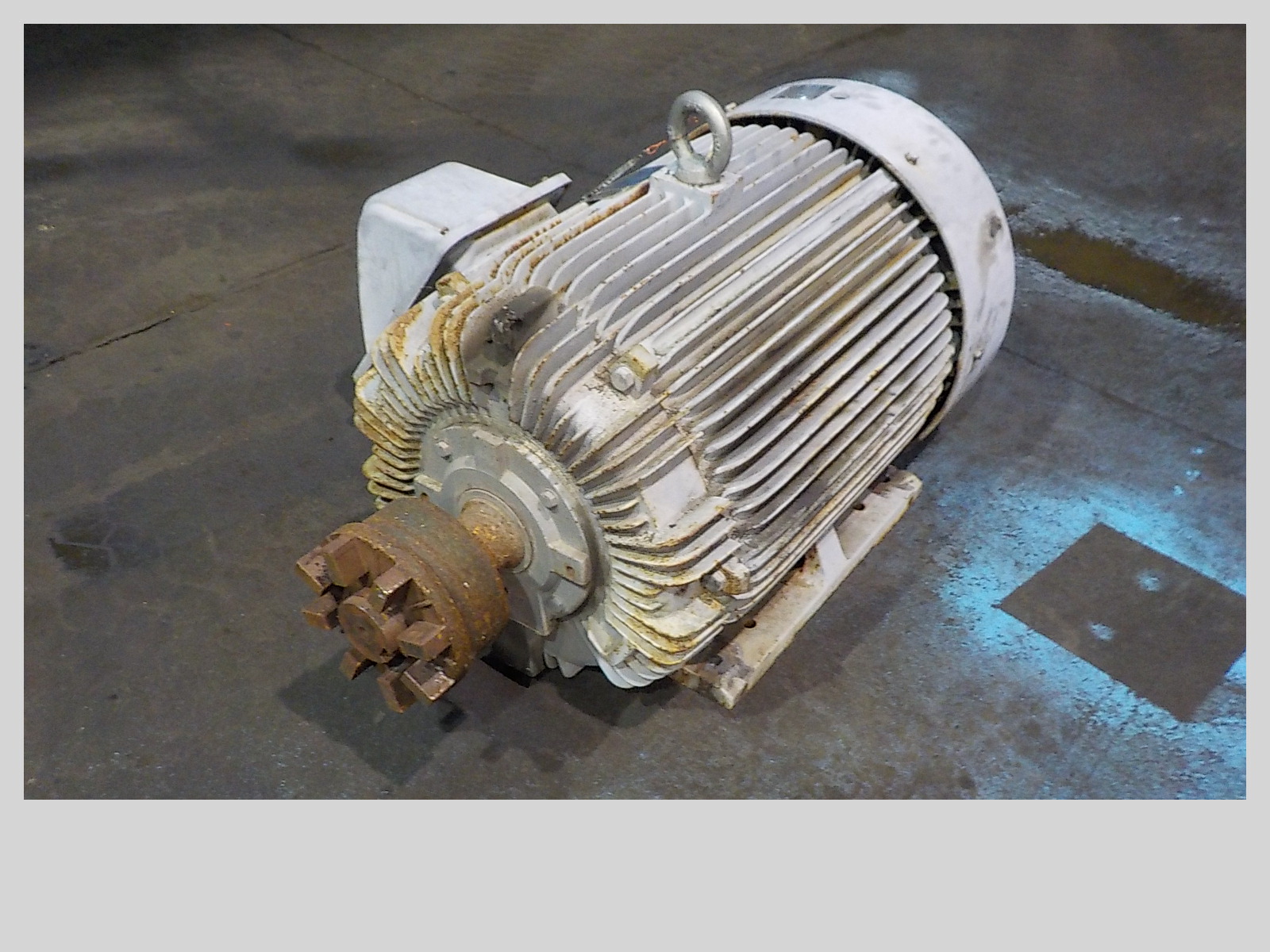

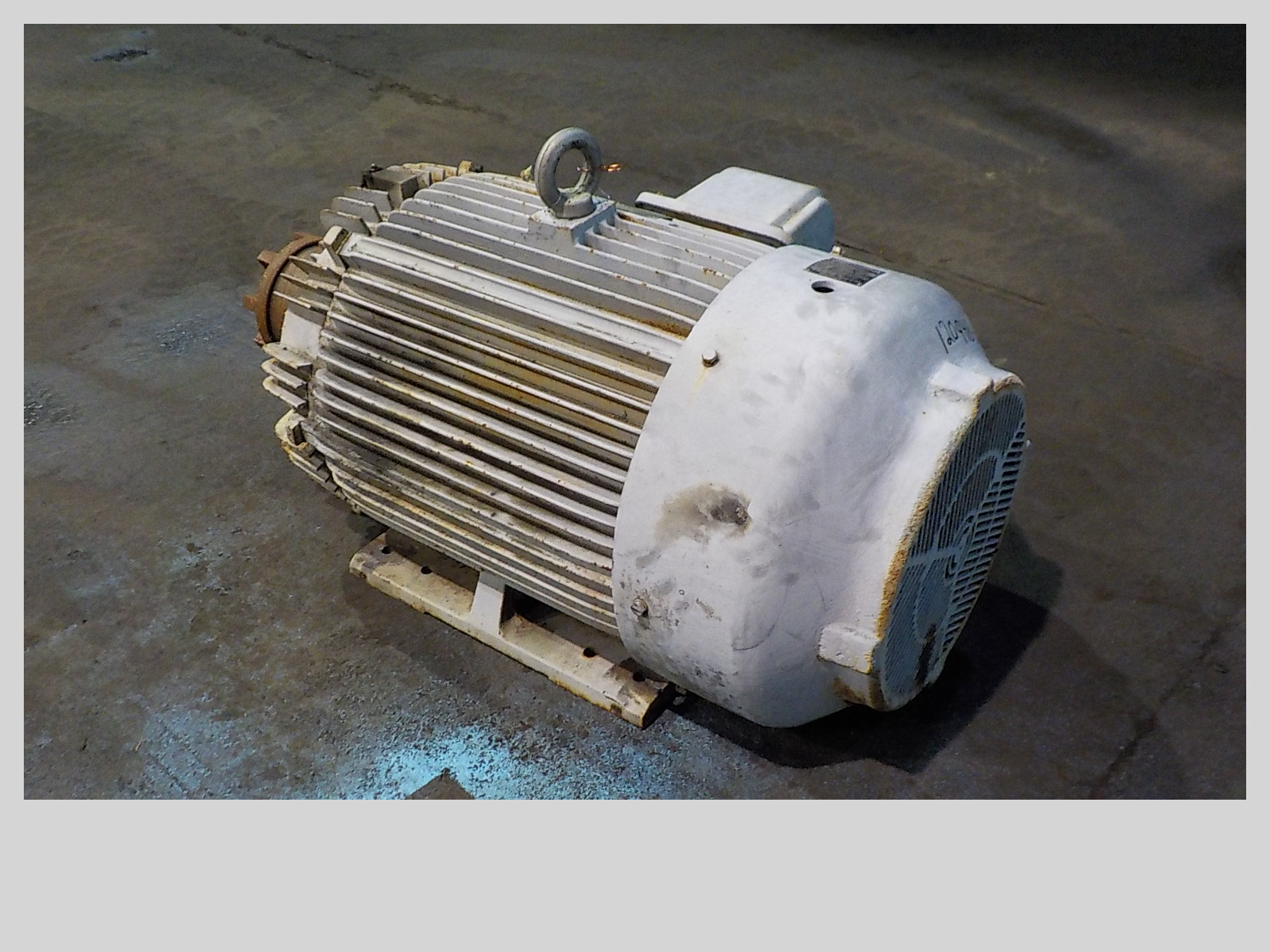

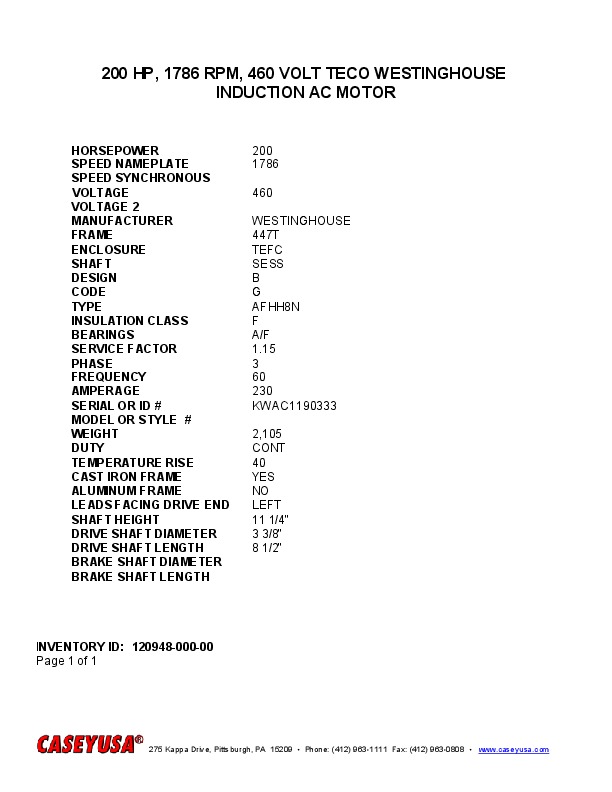

200 HP, 1786 RPM, 460 VOLT TECO WESTINGHOUSE, INDUCTION AC MOTOR - $6,495
 "12094800000 200 HP, 1786 RPM, 460 VOLT TECO WESTINGHOUSE, INDUCTION AC MOTOR - $6,495")
 "12094800000 200 HP, 1786 RPM, 460 VOLT TECO WESTINGHOUSE, INDUCTION AC MOTOR - $6,495")
 "12094800000 200 HP, 1786 RPM, 460 VOLT TECO WESTINGHOUSE, INDUCTION AC MOTOR - $6,495")
| INVENTORY ID | 12094800000 |
| TITLE | 200 HP, 1786 RPM, 460 VOLT TECO WESTINGHOUSE, INDUCTION AC MOTOR - $6,495 |
| HORSEPOWER | 200 |
| SPEED NAMEPLATE | 1786 |
| VOLTAGE | 460 |
| MANUFACTURER | WESTINGHOUSE |
| FRAME | 447T |
| ENCLOSURE | TEFC |
| SHAFT | SESS |
| DESIGN | B |
| CODE | G |
| TYPE | AFHH8N |
| INSULATION CLASS | F |
| BEARINGS | A/F |
| SERVICE FACTOR | 1.15 |
| PHASE | 3 |
| FREQUENCY | 60 |
| AMPERAGE | 230 |
| SERIAL NUMBER OR ID NUMBER | KWAC1190333 |
| WEIGHT | 2,105 |
| DUTY | CONT |
| TEMPERATURE RISE | 40 |
| CAST IRON FRAME | YES |
| CAST ALUM FRAME | NO |
| LEADS FACING DRIVE END | LEFT |
| SHAFT HEIGHT | 11 1/4" |
| DRIVE SHAFT DIAMETER | 3 3/8" |
| DRIVE SHAFT LENGTH | 8 1/2" |
