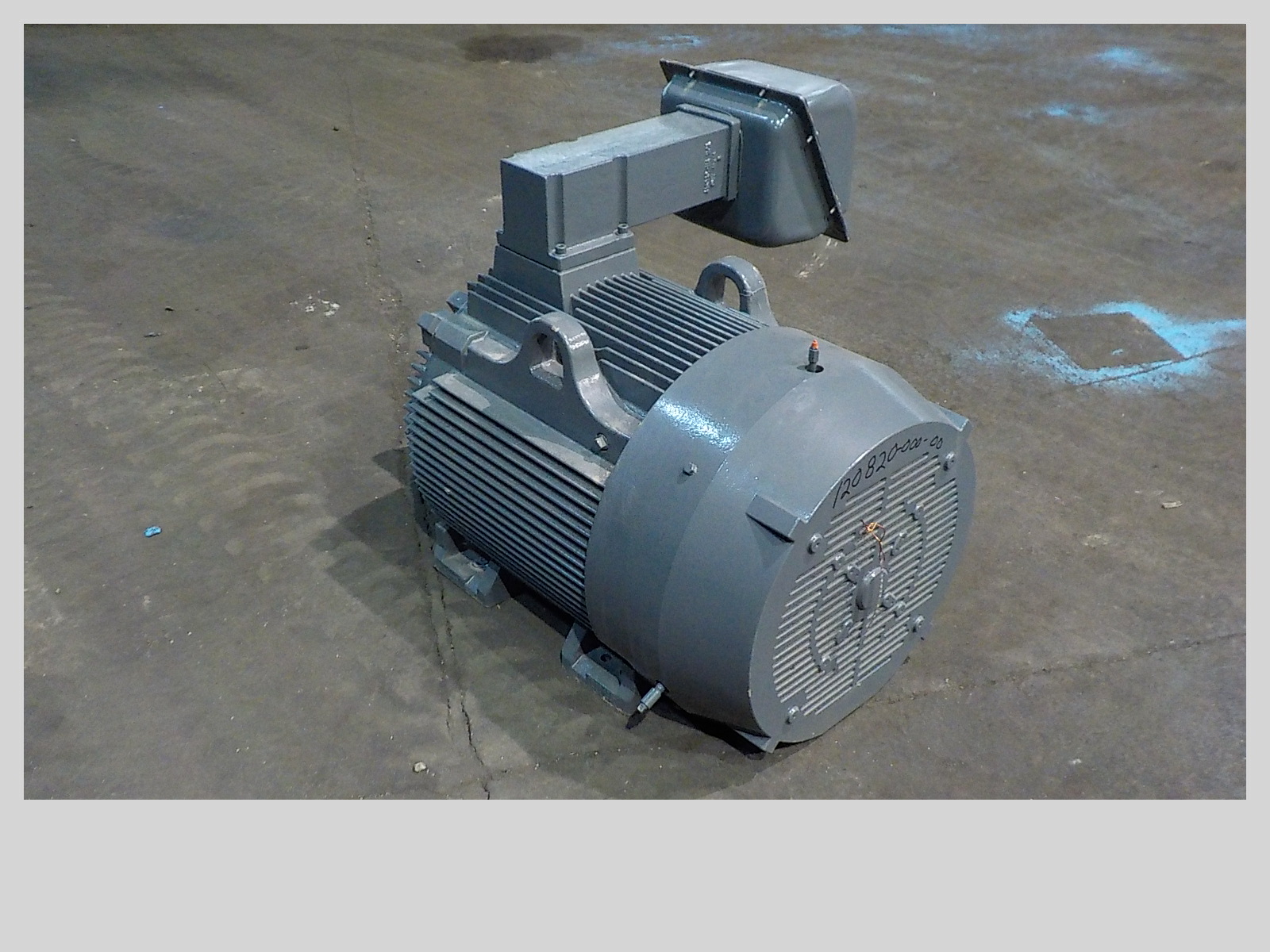

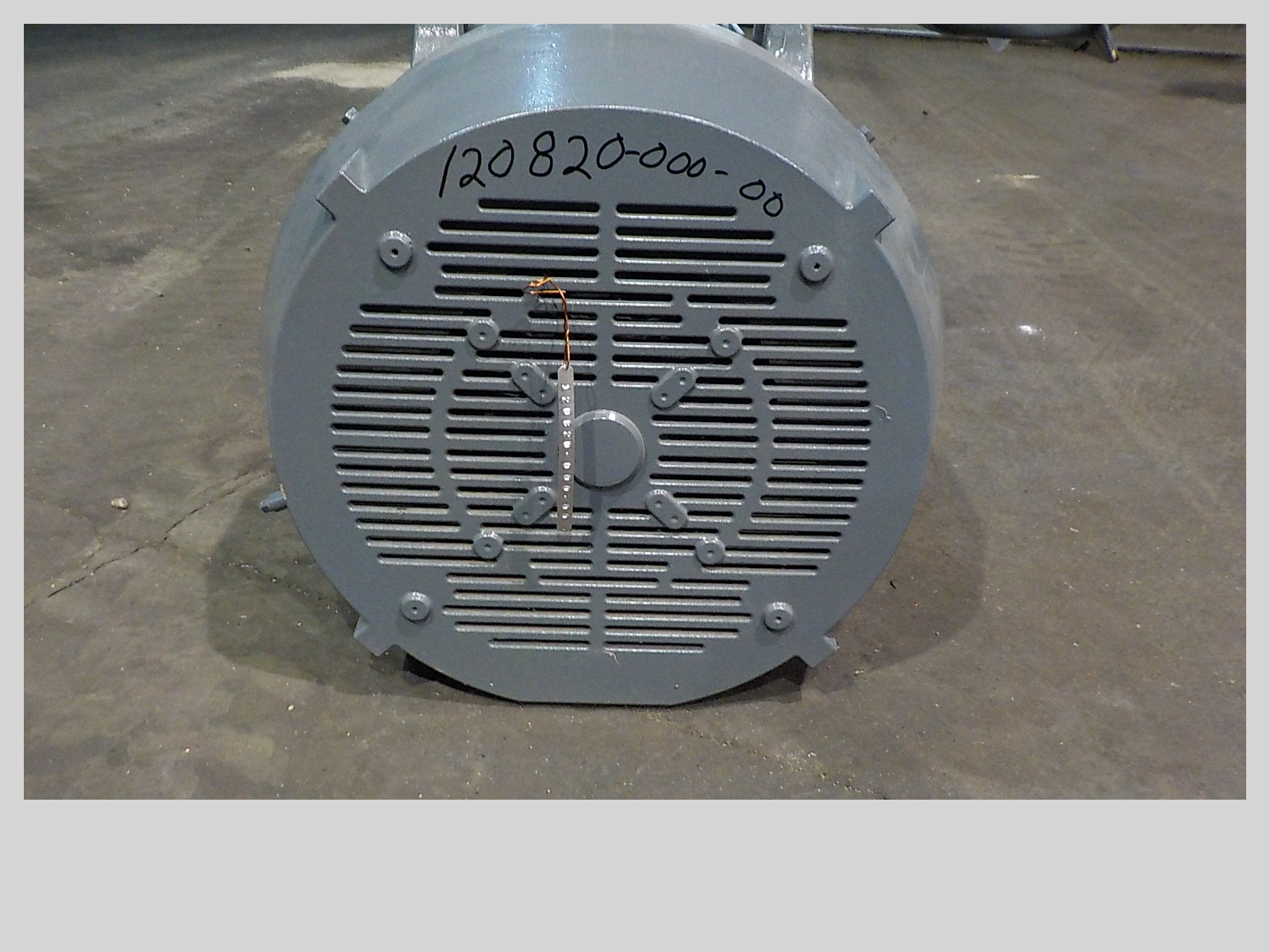

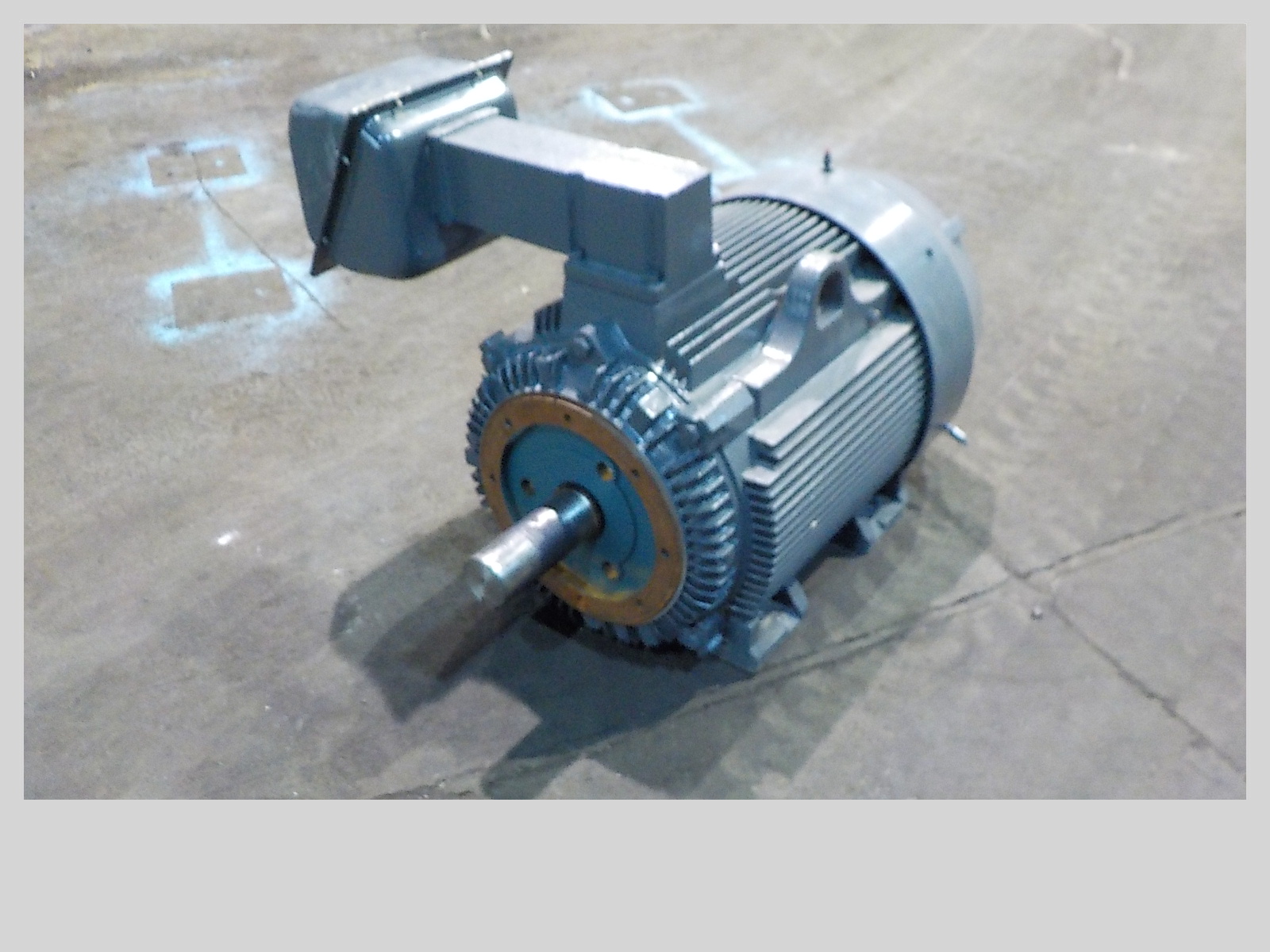

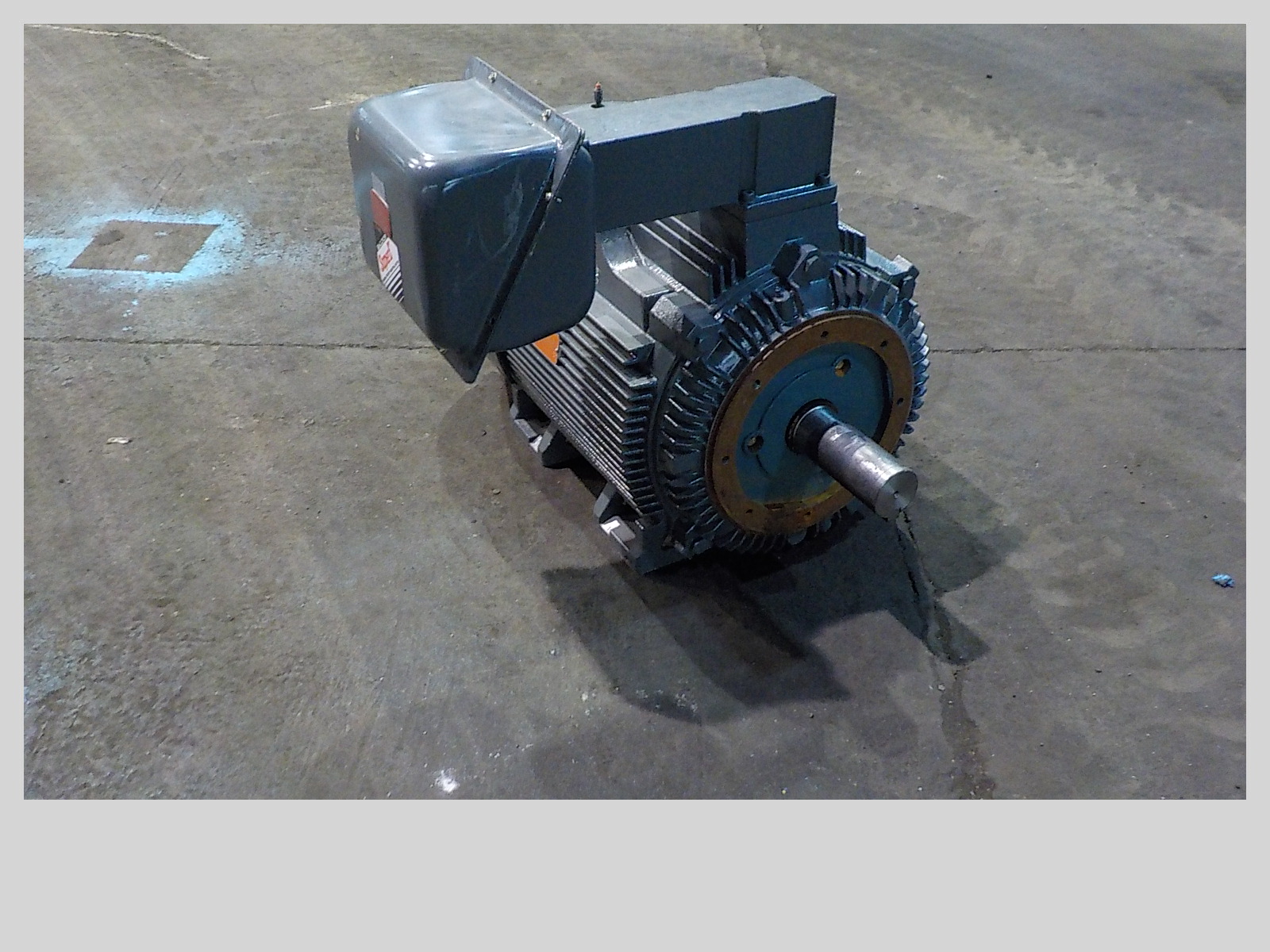

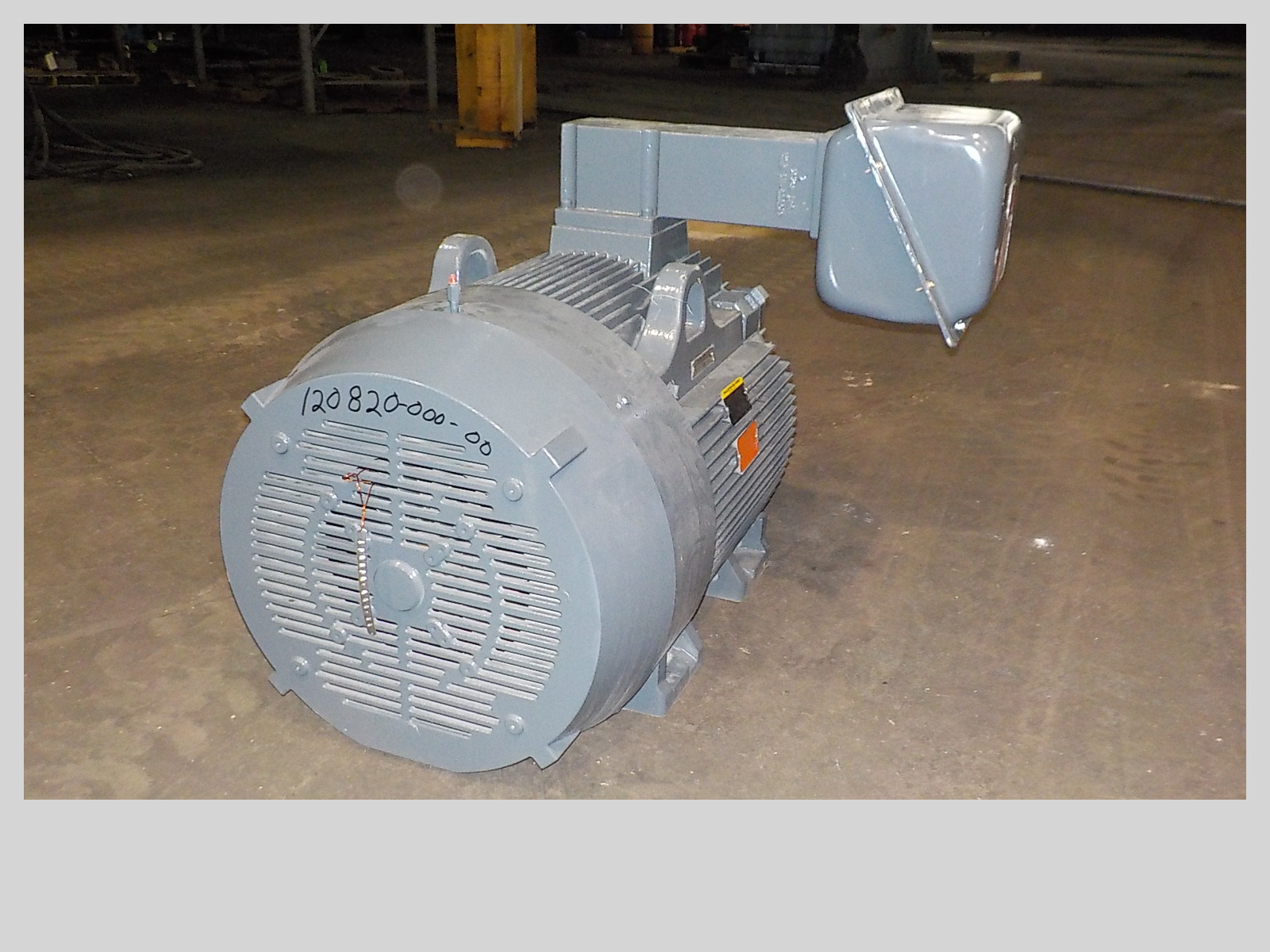

100 HP, 1190 RPM, 460 VOLT, RELIANCE, 444T, INDUCTION AC MOTOR
 "12082000000 100 HP, 1190 RPM, 460 VOLT, RELIANCE, 444T, INDUCTION AC MOTOR")
 "12082000000 100 HP, 1190 RPM, 460 VOLT, RELIANCE, 444T, INDUCTION AC MOTOR")
 "12082000000 100 HP, 1190 RPM, 460 VOLT, RELIANCE, 444T, INDUCTION AC MOTOR")
 "12082000000 100 HP, 1190 RPM, 460 VOLT, RELIANCE, 444T, INDUCTION AC MOTOR")
 "12082000000 100 HP, 1190 RPM, 460 VOLT, RELIANCE, 444T, INDUCTION AC MOTOR")

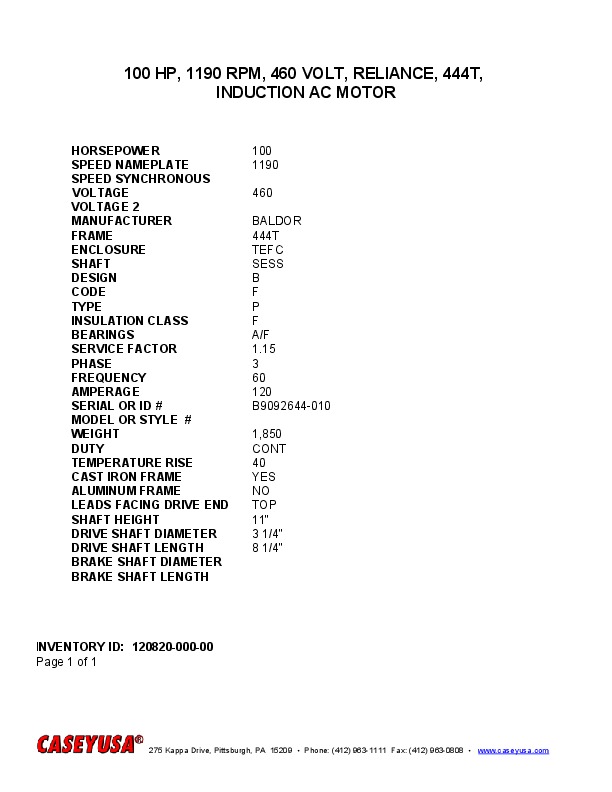

| INVENTORY ID | 12082000000 |
| TITLE | 100 HP, 1190 RPM, 460 VOLT, RELIANCE, 444T, INDUCTION AC MOTOR |
| HORSEPOWER | 100 |
| SPEED NAMEPLATE | 1190 |
| VOLTAGE | 460 |
| MANUFACTURER | BALDOR |
| FRAME | 444T |
| ENCLOSURE | TEFC |
| SHAFT | SESS |
| DESIGN | B |
| CODE | F |
| TYPE | P |
| INSULATION CLASS | F |
| BEARINGS | A/F |
| SERVICE FACTOR | 1.15 |
| PHASE | 3 |
| FREQUENCY | 60 |
| AMPERAGE | 120 |
| SERIAL NUMBER OR ID NUMBER | B9092644-010 |
| WEIGHT | 1,850 |
| DUTY | CONT |
| TEMPERATURE RISE | 40 |
| CAST IRON FRAME | YES |
| CAST ALUM FRAME | NO |
| LEADS FACING DRIVE END | TOP |
| SHAFT HEIGHT | 11" |
| DRIVE SHAFT DIAMETER | 3 1/4" |
| DRIVE SHAFT LENGTH | 8 1/4" |
