4500 HP, 713 RPM, 4000 VOLT, TECO WESTINGHOUSE, 8016SPCL, AC INDUCTION MOTOR
 "12079800000 4500 HP, 713 RPM, 4000 VOLT, TECO WESTINGHOUSE, 8016SPCL, AC INDUCTION MOTOR")
 "12079800000 4500 HP, 713 RPM, 4000 VOLT, TECO WESTINGHOUSE, 8016SPCL, AC INDUCTION MOTOR")
 "12079800000 4500 HP, 713 RPM, 4000 VOLT, TECO WESTINGHOUSE, 8016SPCL, AC INDUCTION MOTOR")
 "12079800000 4500 HP, 713 RPM, 4000 VOLT, TECO WESTINGHOUSE, 8016SPCL, AC INDUCTION MOTOR")
 "12079800000 4500 HP, 713 RPM, 4000 VOLT, TECO WESTINGHOUSE, 8016SPCL, AC INDUCTION MOTOR")

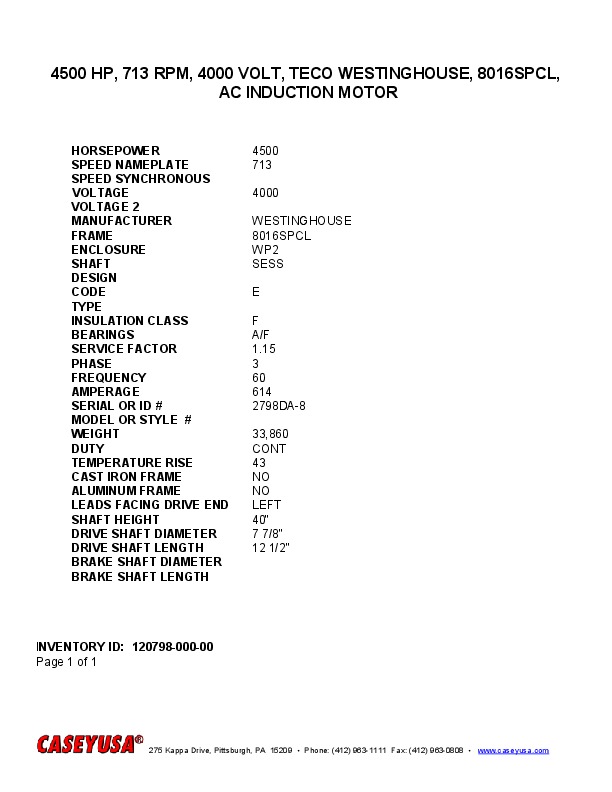

| INVENTORY ID | 12079800000 |
| TITLE | 4500 HP, 713 RPM, 4000 VOLT, TECO WESTINGHOUSE, 8016SPCL, AC INDUCTION MOTOR |
| HORSEPOWER | 4500 |
| SPEED NAMEPLATE | 713 |
| VOLTAGE | 4000 |
| MANUFACTURER | WESTINGHOUSE |
| FRAME | 8016SPCL |
| ENCLOSURE | WP2 |
| SHAFT | SESS |
| CODE | E |
| INSULATION CLASS | F |
| BEARINGS | A/F |
| SERVICE FACTOR | 1.15 |
| PHASE | 3 |
| FREQUENCY | 60 |
| AMPERAGE | 614 |
| SERIAL NUMBER OR ID NUMBER | 2798DA-8 |
| WEIGHT | 33,860 |
| DUTY | CONT |
| TEMPERATURE RISE | 43 |
| CAST IRON FRAME | NO |
| CAST ALUM FRAME | NO |
| LEADS FACING DRIVE END | LEFT |
| SHAFT HEIGHT | 40" |
| DRIVE SHAFT DIAMETER | 7 7/8" |
| DRIVE SHAFT LENGTH | 12 1/2" |
