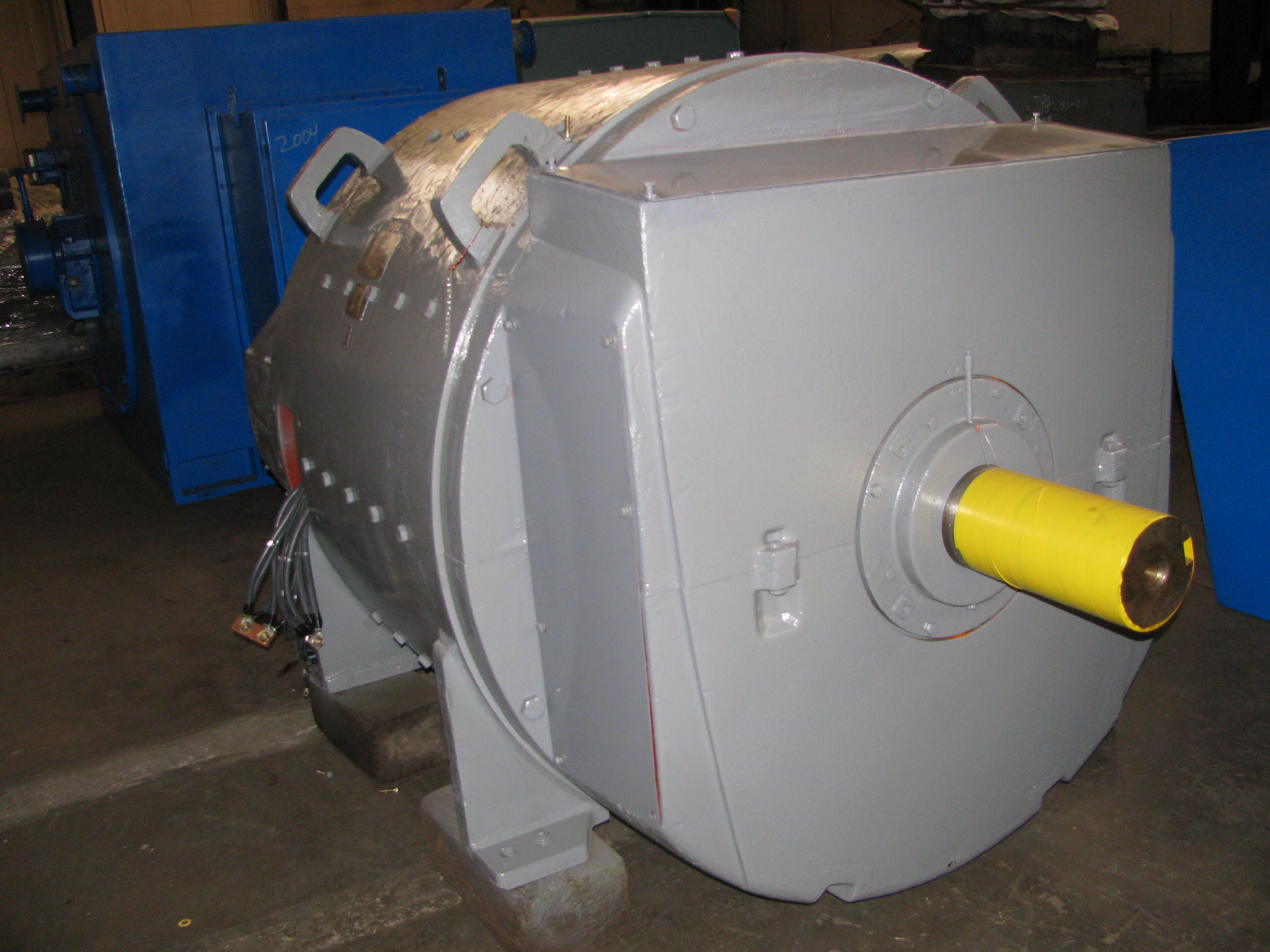

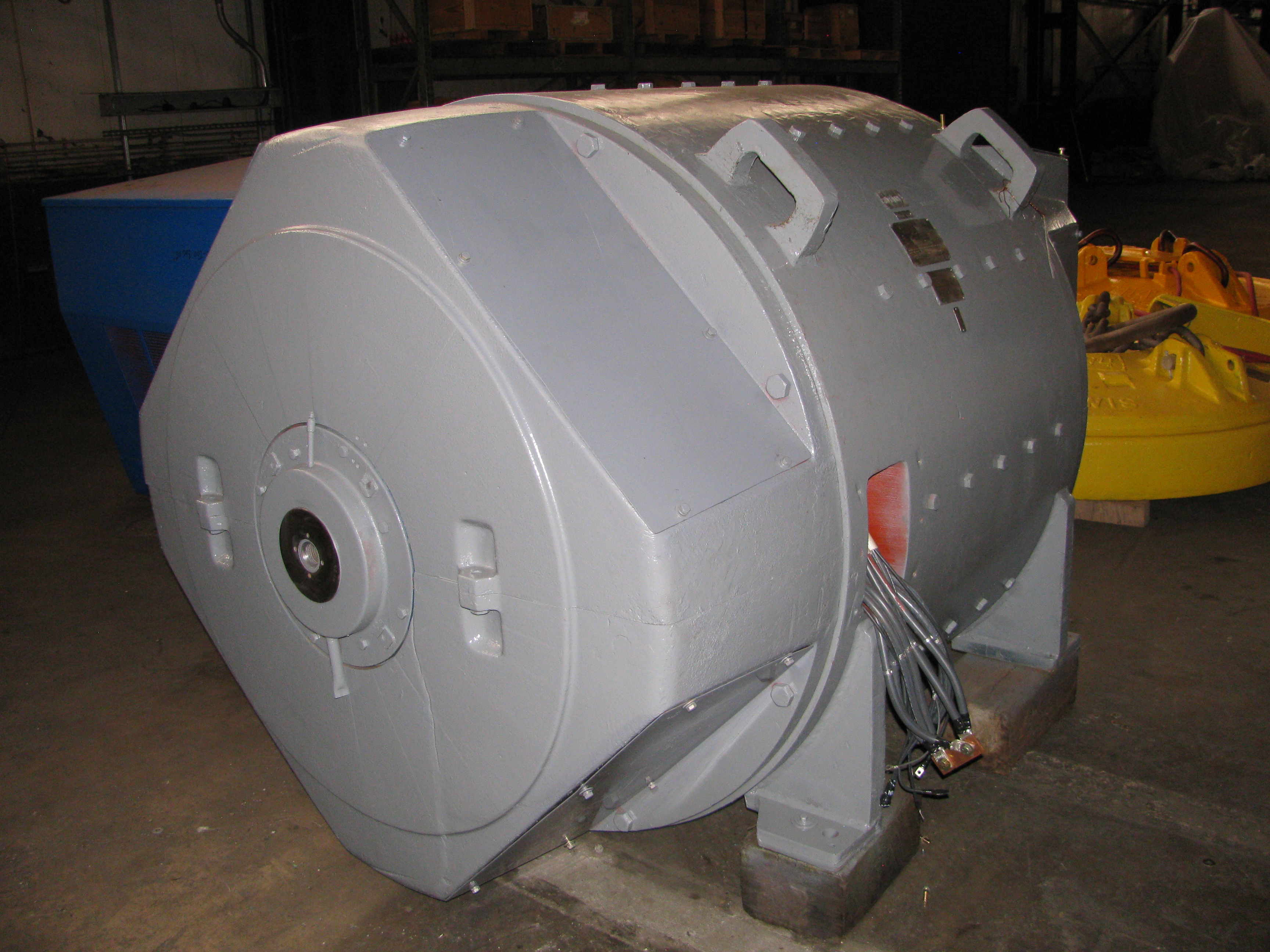

900 HP, 400/1200 RPM, 630 VOLT, GENERAL ELECTRIC, CD8832, USED DC MOTOR
 "12075700000 900 HP, 400/1200 RPM, 630 VOLT, GENERAL ELECTRIC, CD8832, USED DC MOTOR")
 "12075700000 900 HP, 400/1200 RPM, 630 VOLT, GENERAL ELECTRIC, CD8832, USED DC MOTOR")
900 HP, 400/1200 RPM, 630 VOLT, GENERAL ELECTRIC, CD8832, USED DC MOTOR
HORSEPOWER: 900
SPEED: 400
SPEED 2: 1200
VOLTAGE: 630
MANUFACTURER: GENERAL ELECTRIC
FRAME: 8832
TYPE: CD
WINDING: SHUNT
ENCLOSURE: DPFG-BV
SHAFT: SESS
AMPERAGE: 1140
DUTY: CONT
BEARINGS: A/F
FIELD VOLTAGE:
FIELD AMPERAGE: 27.8 - 9.2
FIELD RESISTANCE: 6.6
SERIAL NUMBER OR ID NUMBER: HP-2-20-HP
MODEL NUMBER OR STYLE NUMBER: 5CD28F31F506322
SERVICE FACTOR:
INSULATION CLASS: F
POWER SUPPLY CODE: C
WEIGHT: 26,000
DRIVE SHAFT DIMENSION : 7 3/4"
DRIVE SHAFT LENGTH: 14"
BRAKE SHAFT DIAMETER:
BRAKE SHAFT LENGTH:
SHAFT HEIGHT: 24 1/2"
SHAFT LENGTH: 95"
WIDTH BETWEEN FEET: 56"
LENGTH BETWEEN FEET: 41"
| INVENTORY ID | 12075700000 |
| TITLE | 900 HP, 400/1200 RPM, 630 VOLT, GENERAL ELECTRIC, CD8832, USED DC MOTOR |
| HORSEPOWER | 900 |
| SPEED | 400 |
| SPEED 2 | 1200 |
| VOLTAGE | 630 |
| MANUFACTURER | GENERAL ELECTRIC |
| FRAME | 8832 |
| TYPE | CD |
| WINDING | SHUNT |
| ENCLOSURE | DPFG-BV |
| SHAFT | SESS |
| AMPERAGE | 1140 |
| DUTY | CONT |
| BEARINGS | A/F |
| FIELD AMPERAGE | 27.8 - 9.2 |
| FIELD RESISTANCE | 6.6 |
| DEGREE OF TEMPERATURE RISE | 40 |
| SERIAL NUMBER OR ID NUMBER | HP-2-20-HP |
| MODEL NUMBER OR STYLE NUMBER | 5CD28F31F506322 |
| INSULATION CLASS | F |
| POWER SUPPLY CODE | C |
| WEIGHT | 26,000 |
| DRIVE SHAFT DIMENSION | 7 3/4" |
| DRIVE SHAFT LENGTH | 14" |
| SHAFT HEIGHT | 24 1/2" |
| MOTOR LENGTH | 95" |
| WIDTH BETWEEN FEET | 56" |
| LENGTH BETWEEN FEET | 41" |
