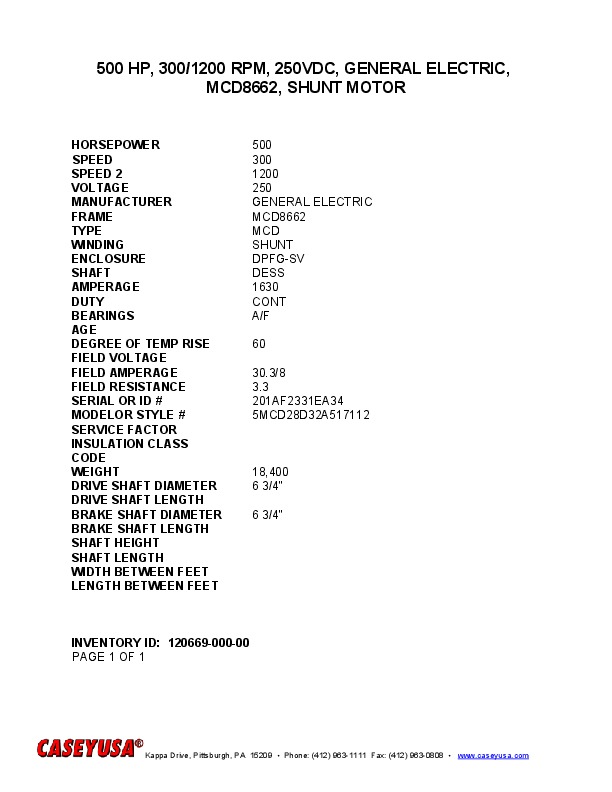

QTY (2) 500 HP, 300/1200 RPM, 250VDC, GENERAL ELECTRIC, MCD8662, SHUNT MOTOR
| INVENTORY ID | 12066900000 |
| TITLE | QTY (2) 500 HP, 300/1200 RPM, 250VDC, GENERAL ELECTRIC, MCD8662, SHUNT MOTOR |
| HORSEPOWER | 500 |
| SPEED | 300 |
| SPEED 2 | 1200 |
| VOLTAGE | 250 |
| MANUFACTURER | GENERAL ELECTRIC |
| FRAME | 8662 |
| TYPE | MCD |
| WINDING | SHUNT |
| ENCLOSURE | DPFG-SV |
| SHAFT | DESS |
| AMPERAGE | 1630 |
| DUTY | CONT |
| BEARINGS | A/F |
| FIELD AMPERAGE | 30.3/8 |
| FIELD RESISTANCE | 3.3 |
| DEGREE OF TEMPERATURE RISE | 60 |
| SERIAL NUMBER OR ID NUMBER | 201AF2331EA34 |
| MODEL NUMBER OR STYLE NUMBER | 5MCD28D32A517112 |
| WEIGHT | 18,400 |
| DRIVE SHAFT DIMENSION | 6 3/4" |
| BRAKE SHAFT DIAMETER | 6 3/4" |
