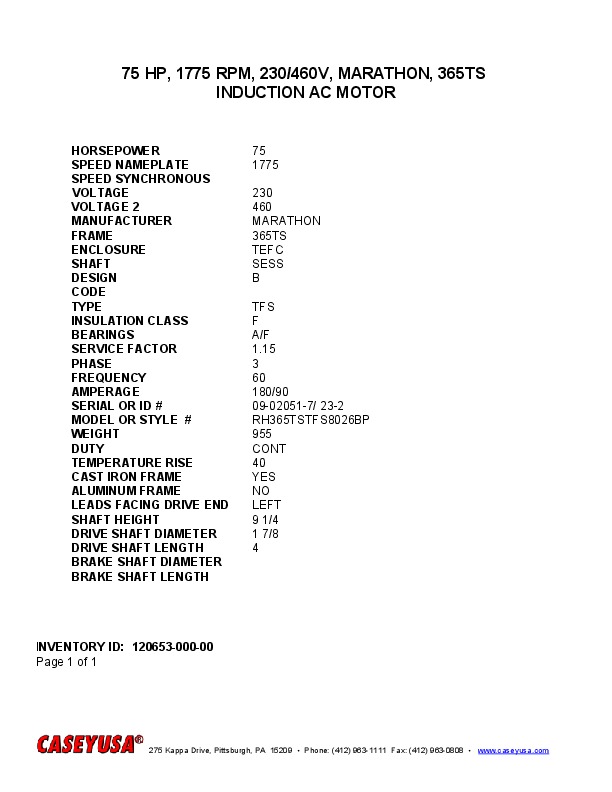

75 HP, 1775 RPM, 230/460V, MARATHON, 365TS INDUCTION AC MOTOR
| INVENTORY ID | 12065300000 |
| TITLE | 75 HP, 1775 RPM, 230/460V, MARATHON, 365TS INDUCTION AC MOTOR |
| HORSEPOWER | 75 |
| SPEED NAMEPLATE | 1775 |
| VOLTAGE | 230 |
| VOLTAGE 2 | 460 |
| MANUFACTURER | MARATHON |
| FRAME | 365TS |
| ENCLOSURE | TEFC |
| SHAFT | SESS |
| DESIGN | B |
| TYPE | TFS |
| INSULATION CLASS | F |
| BEARINGS | A/F |
| SERVICE FACTOR | 1.15 |
| PHASE | 3 |
| FREQUENCY | 60 |
| AMPERAGE | 180/90 |
| SERIAL NUMBER OR ID NUMBER | 09-02051-7/ 23-2 |
| MODEL NUMBER OR STYLE NUMBER | RH365TSTFS8026BP |
| WEIGHT | 955 |
| DUTY | CONT |
| TEMPERATURE RISE | 40 |
| CAST IRON FRAME | YES |
| CAST ALUM FRAME | NO |
| LEADS FACING DRIVE END | LEFT |
| SHAFT HEIGHT | 9 1/4 |
| DRIVE SHAFT DIAMETER | 1 7/8 |
| DRIVE SHAFT LENGTH | 4 |
