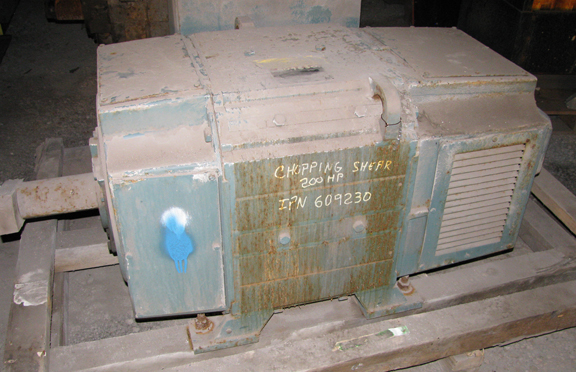

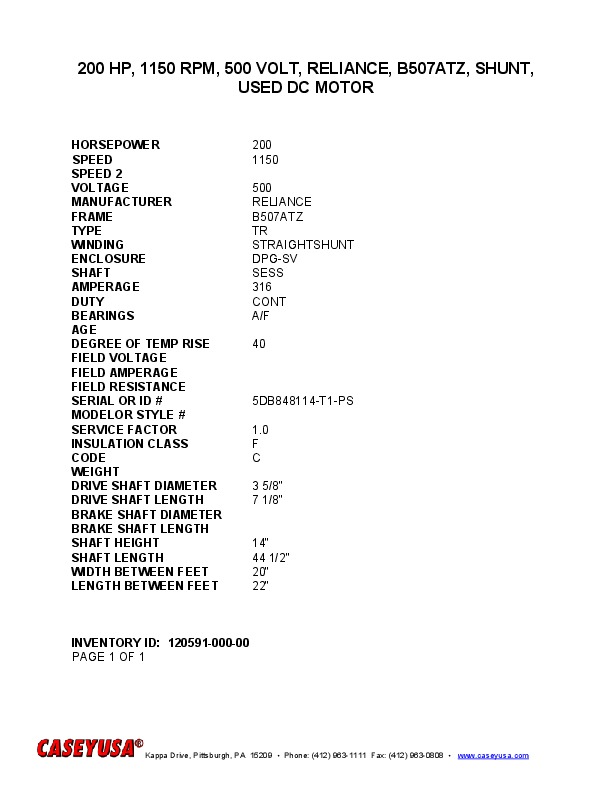

200 HP, 1150 RPM, 500 VOLT, RELIANCE, B507ATZ, SHUNT, USED DC MOTOR
 "12059100000 200 HP, 1150 RPM, 500 VOLT, RELIANCE, B507ATZ, SHUNT, USED DC MOTOR")
 "12059100000 200 HP, 1150 RPM, 500 VOLT, RELIANCE, B507ATZ, SHUNT, USED DC MOTOR")
| INVENTORY ID | 12059100000 |
| TITLE | 200 HP, 1150 RPM, 500 VOLT, RELIANCE, B507ATZ, SHUNT, USED DC MOTOR |
| HORSEPOWER | 200 |
| SPEED | 1150 |
| VOLTAGE | 500 |
| MANUFACTURER | RELIANCE |
| FRAME | 507ATZ |
| TYPE | TR |
| WINDING | STRAIGHTSHUNT |
| ENCLOSURE | DPG-SV |
| SHAFT | SESS |
| AMPERAGE | 316 |
| DUTY | CONT |
| BEARINGS | A/F |
| DEGREE OF TEMPERATURE RISE | 40 |
| SERIAL NUMBER OR ID NUMBER | 5DB848114-T1-PS |
| SERVICE FACTOR | 1.0 |
| INSULATION CLASS | F |
| POWER SUPPLY CODE | C |
| DRIVE SHAFT DIMENSION | 3 5/8" |
| DRIVE SHAFT LENGTH | 7 1/8" |
| SHAFT HEIGHT | 14" |
| MOTOR LENGTH | 44 1/2" |
| WIDTH BETWEEN FEET | 20" |
| LENGTH BETWEEN FEET | 22" |
