450HP 0-460V SIEMENS 6SE7236-0EK20-3AB0-Z ENCLOSED ADJUSTABLE FREQUENCY CONVERTER IN FLOOR MOUNTED ENCLOSURE, $14,750 EACH
 "12046100000 450HP 0-460V SIEMENS 6SE7236-0EK20-3AB0-Z ENCLOSED ADJUSTABLE FREQUENCY CONVERTER IN FLOOR MOUNTED ENCLOSURE, $14,750 EACH")
 "12046100000 450HP 0-460V SIEMENS 6SE7236-0EK20-3AB0-Z ENCLOSED ADJUSTABLE FREQUENCY CONVERTER IN FLOOR MOUNTED ENCLOSURE, $14,750 EACH")
 "12046100000 450HP 0-460V SIEMENS 6SE7236-0EK20-3AB0-Z ENCLOSED ADJUSTABLE FREQUENCY CONVERTER IN FLOOR MOUNTED ENCLOSURE, $14,750 EACH")
 "12046100000 450HP 0-460V SIEMENS 6SE7236-0EK20-3AB0-Z ENCLOSED ADJUSTABLE FREQUENCY CONVERTER IN FLOOR MOUNTED ENCLOSURE, $14,750 EACH")
450HP 0-460V SIEMENS 6SE7236-0EK20-3AB0-Z ENCLOSED ADJUSTABLE FREQUENCY CONVERTER IN FLOOR MOUNTED ENCLOSURE

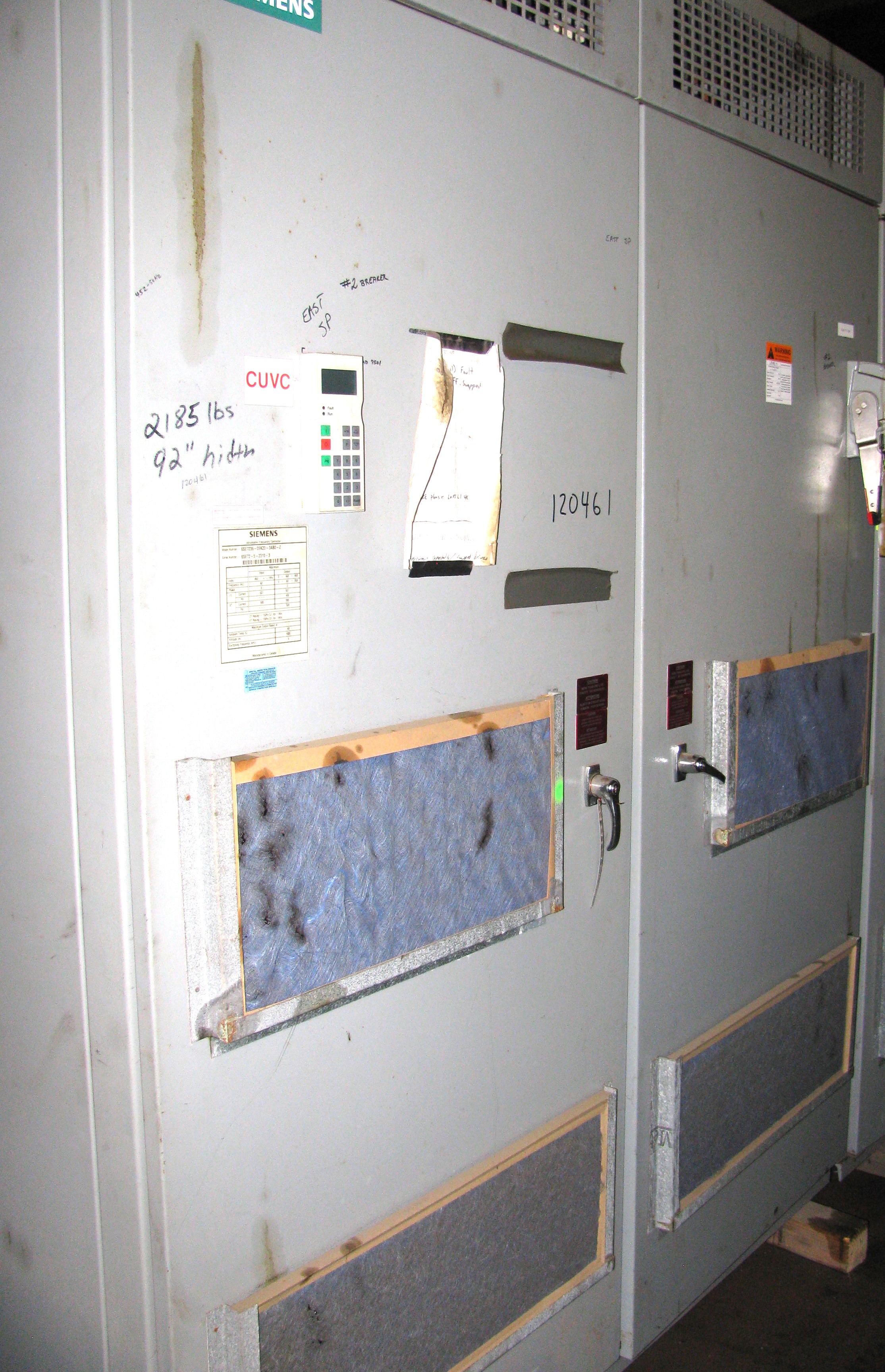

IN A 2 DOOR FREE STANDING FLOOR MOUNTED ENCLOSURE
72" W X 90" H X 24" D
CUBICLE 1:
CUBICLE 2:
800 AMP MOLDED CASE ITE AIR CIRCUIT BREAKER, MODEL MD63F800
3 AMP TRAP TIME DELAY FUSES

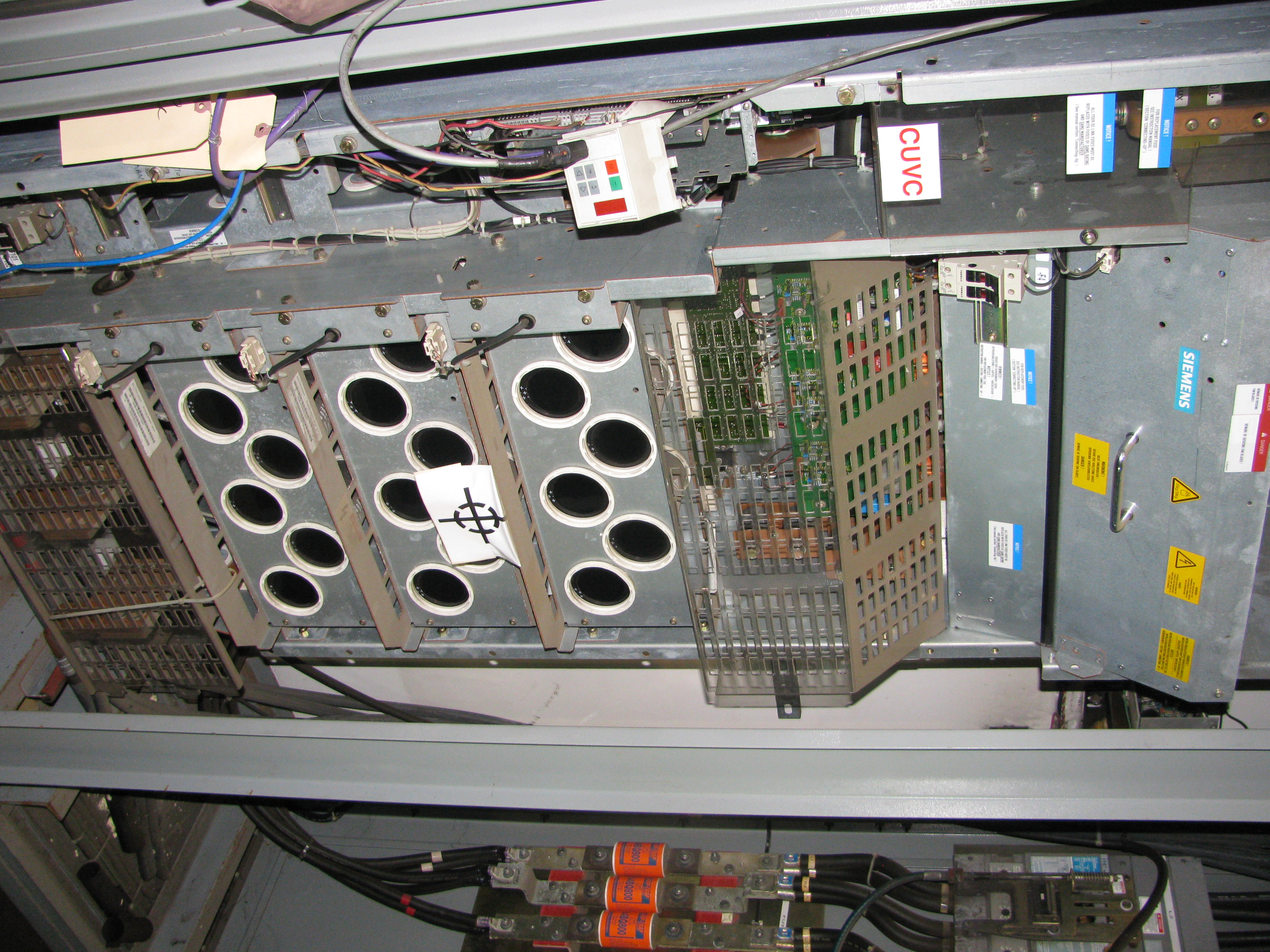

6SE7236-0EK20-3ABO-Z SIEMENS ADJUSTABLE FREQUENCY CONVERTER

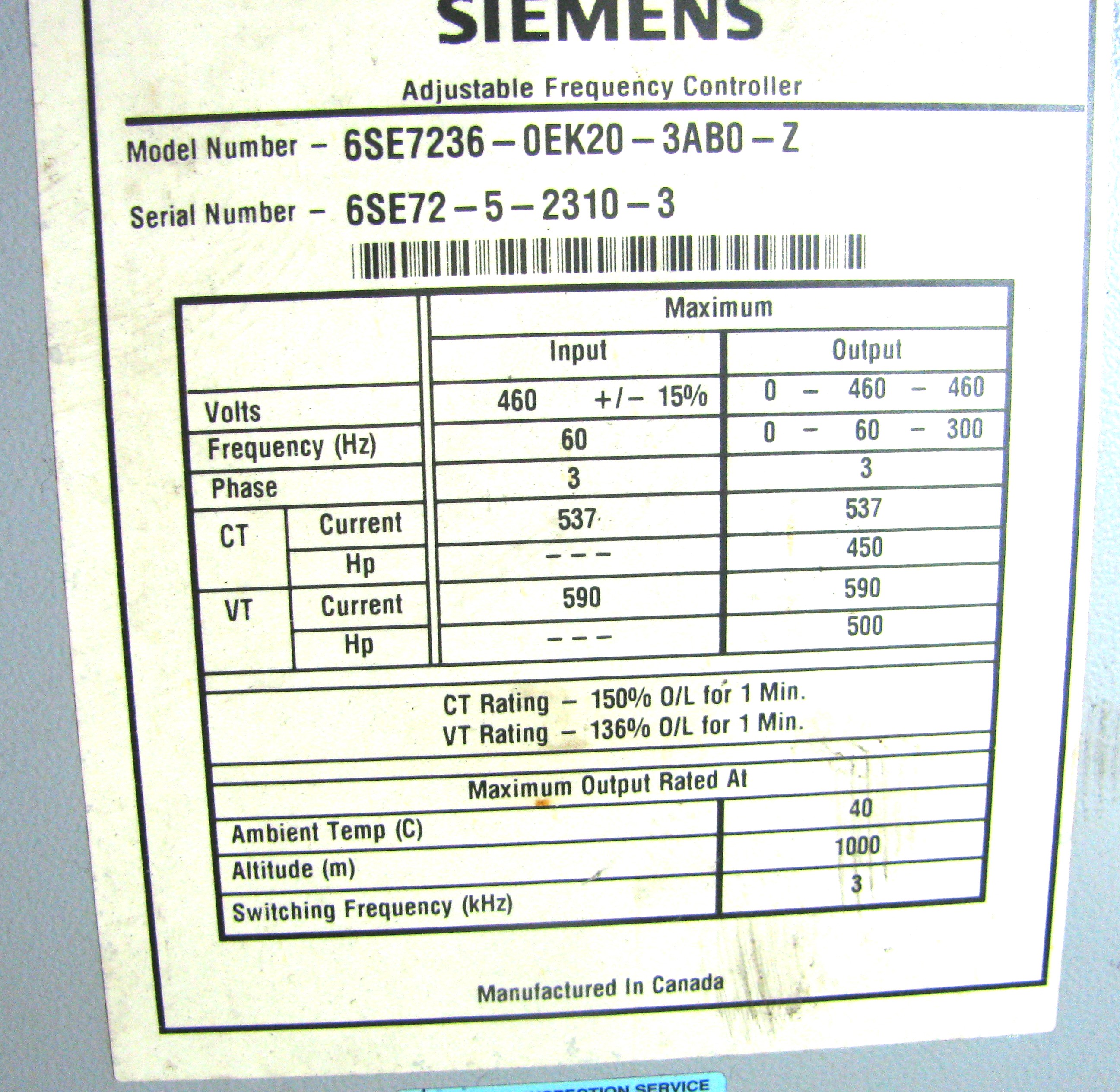

C INPUT 460V 3 PHASE 60 CYCLE 537 AMPS CT 590 AMPS VT
OUTPUT 0-460V 0-60-300 HZ 537 AMPS/450 HP CT 590 AMPS/500HP VT
PURPOSE: SCALE PIT PUMP MOTOR
GOOD CONDITION
TAG# 120461-000-00
| INVENTORY ID | 12046100000 |
| TITLE | 450HP 0-460V SIEMENS 6SE7236-0EK20-3AB0-Z ENCLOSED ADJUSTABLE FREQUENCY CONVERTER IN FLOOR MOUNTED ENCLOSURE, $14,750 EACH |
| HP | 450 |
| MANUFACTURER | SIEMENS |
| TYPE | 6SE7236-0EK20-3AB0-Z |
| MANUFACTURER | SIEMENS |
| MANUFACTURER | 590 |
| TYPE | 360/480 |
| TYPE | 6SE7036-OEK20-3ABO-Z |
| AC INPUT HZ | 50/60 |
| AC OUTPUT AMPS | 537 |
| AC OUTPUT VOLTS | 0/480 |
| AC OUTPUT HZ | 0/300 |
| AMPS: ACB OR FUSED DISCONNECT | ACB 800AMP |
| # FUSES, AMPS & MFG | 3 FUSES 800 AMPS SHAWMUT |
| LINE REACTOR | NO |
| MODULE # | 6SE7036-OEK60-BABO-Z |
| CONTROL CIRCUIT | YES |
| ENCLOSURE DIMENSIONS | 72W X 92H X 28D |
| WITH FANS | YES |
| ON FRONT KEY PAD | YES |
| OTHERS | CONSTANT TORQUE AND VARIABLE TORQUE |
| WEIGHT | 2185 LBS |
| CONDITION OF EQUIPMENT | GOOD |
| COMMENTS ON EQUIPMENT CONDITION | CAN REPLACE 6SE7036 MODULE WITH TAG 120512 A NEWER 6SL SIEMENS MODULE |
| PRICE | 14,750 |
