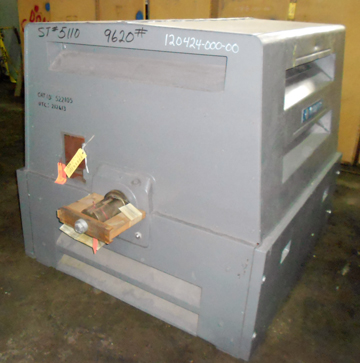

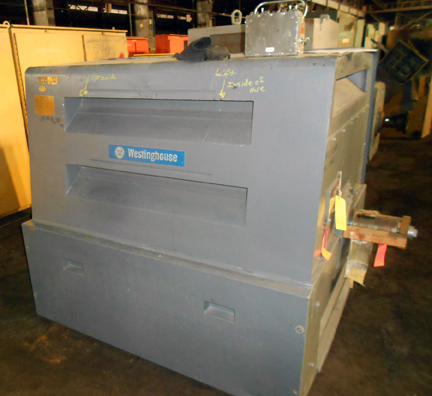

800 HP, 600 RPM, 4160V, WESTINGHOUSE, 4A, INDUCTION AC MOTOR
 "12042400000 800 HP, 600 RPM, 4160V, WESTINGHOUSE, 4A, INDUCTION AC MOTOR")
 "12042400000 800 HP, 600 RPM, 4160V, WESTINGHOUSE, 4A, INDUCTION AC MOTOR")
 "12042400000 800 HP, 600 RPM, 4160V, WESTINGHOUSE, 4A, INDUCTION AC MOTOR")

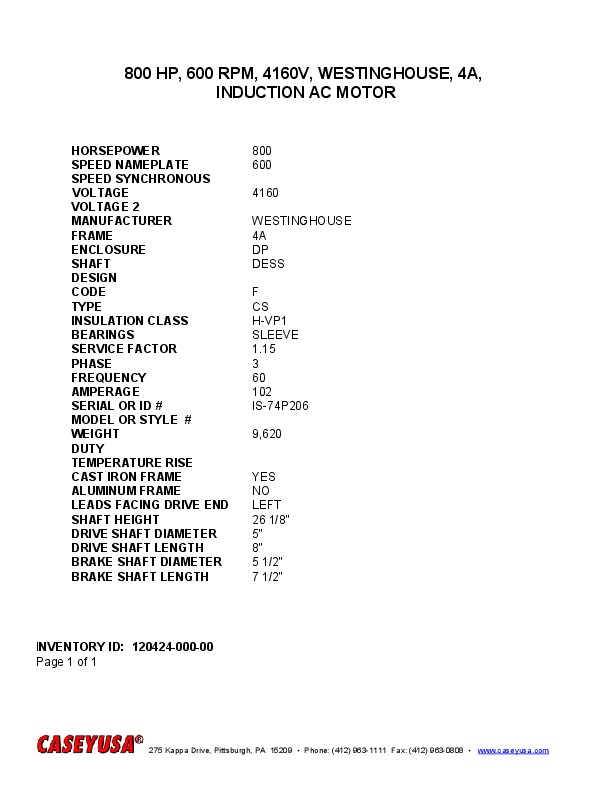

| INVENTORY ID | 12042400000 |
| TITLE | 800 HP, 600 RPM, 4160V, WESTINGHOUSE, 4A, INDUCTION AC MOTOR |
| HORSEPOWER | 800 |
| SPEED NAMEPLATE | 600 |
| VOLTAGE | 4160 |
| MANUFACTURER | WESTINGHOUSE |
| FRAME | 4A |
| ENCLOSURE | DP |
| SHAFT | DESS |
| CODE | F |
| TYPE | CS |
| INSULATION CLASS | H-VP1 |
| BEARINGS | SLEEVE |
| SERVICE FACTOR | 1.15 |
| PHASE | 3 |
| FREQUENCY | 60 |
| AMPERAGE | 102 |

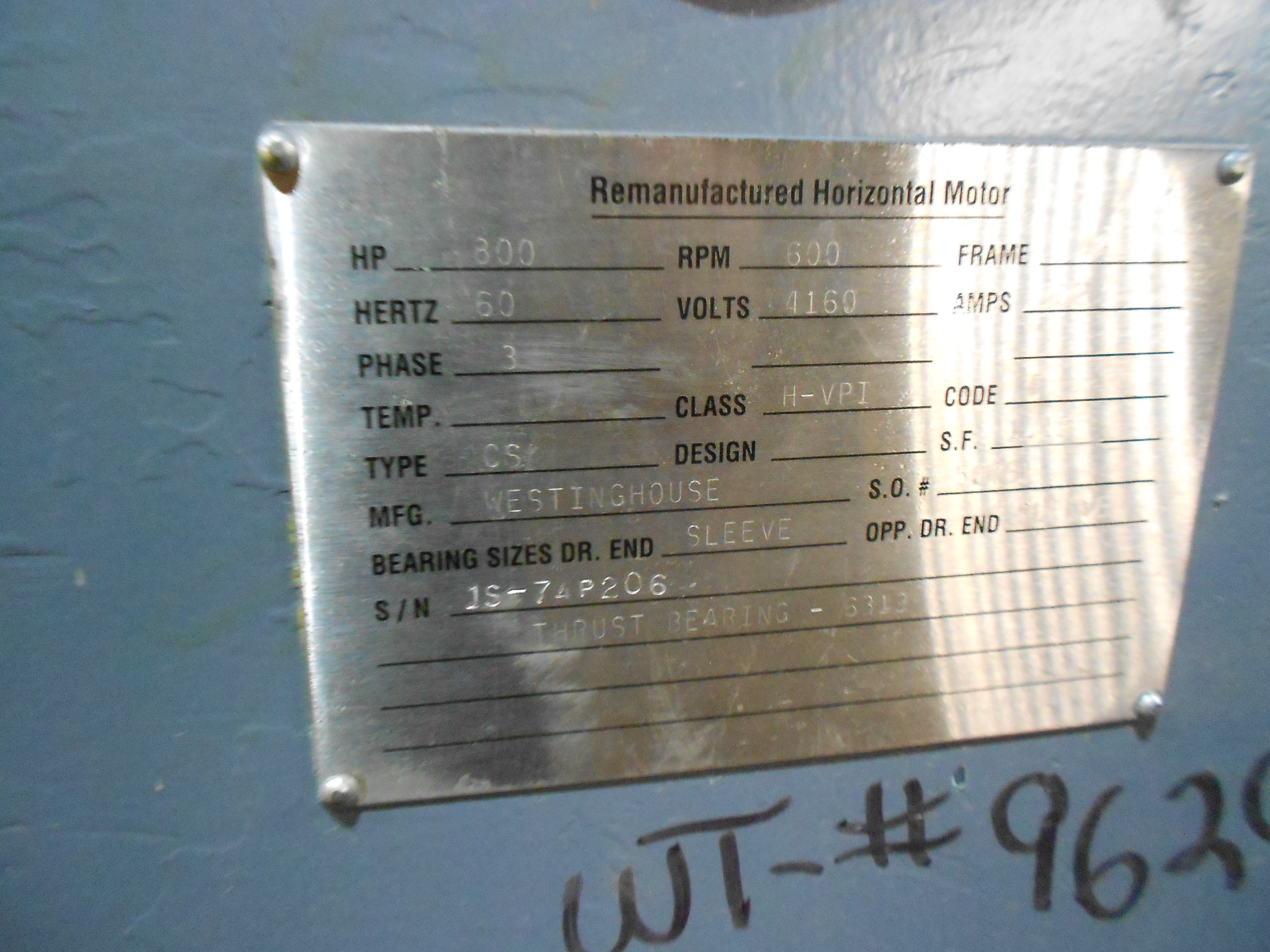

| SERIAL NUMBER OR ID NUMBER | IS-74P206 |
| WEIGHT | 9,620 |
| CAST IRON FRAME | YES |
| CAST ALUM FRAME | NO |
| LEADS FACING DRIVE END | LEFT |
| SHAFT HEIGHT | 26 1/8" |
| DRIVE SHAFT DIAMETER | 5" |
| DRIVE SHAFT LENGTH | 8" |
| BRAKE SHAFT DIAMETER | 5 1/2" |
| BRAKE SHAFT LENGTH | 7 1/2" |
