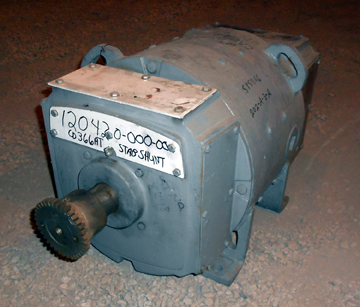

QTY (2) 60 HP, 1750 RPM, 500 VOLT, GENERAL ELECTRIC, CD366AT, STABSHUNT USED DC MOTOR
 "12042000000 QTY (2) 60 HP, 1750 RPM, 500 VOLT, GENERAL ELECTRIC, CD366AT, STABSHUNT USED DC MOTOR")
| INVENTORY ID | 12042000000 |
| TITLE | QTY (2) 60 HP, 1750 RPM, 500 VOLT, GENERAL ELECTRIC, CD366AT, STABSHUNT USED DC MOTOR |
| HORSEPOWER | 60 |
| SPEED | 1750 |
| VOLTAGE | 500 |
| MANUFACTURER | GENERAL ELECTRIC |
| FRAME | 366AT |
| TYPE | CD |
| WINDING | STABSHUNT |
| ENCLOSURE | SPFG-SV |
| SHAFT | SESS |
| AMPERAGE | 97.4 |
| DUTY | CONT |
| BEARINGS | A/F |
| FIELD VOLTAGE | 90 |
| FIELD AMPERAGE | 8.8 |
| FIELD RESISTANCE | 7.3 |
| DEGREE OF TEMPERATURE RISE | 40 |
| SERIAL NUMBER OR ID NUMBER | FL-1-224-AM |
| MODEL NUMBER OR STYLE NUMBER | 4CD193PA028A003 |
| SERVICE FACTOR | 1.0 |
| INSULATION CLASS | F |
| POWER SUPPLY CODE | D |
| WEIGHT | 920 |
| DRIVE SHAFT DIMENSION | 2 3/8" |
| DRIVE SHAFT LENGTH | 4 3/4" |
| SHAFT HEIGHT | 9" |
| MOTOR LENGTH | 35 1/2" |
| WIDTH BETWEEN FEET | 14" |
| LENGTH BETWEEN FEET | 14" |
