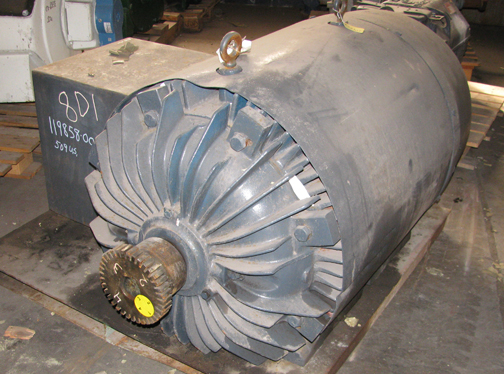

350 HP, 1790 RPM, 440V, LOUIS ALLIS,509US, INDUCTION AC MOTOR
 "11985800000 350 HP, 1790 RPM, 440V, LOUIS ALLIS,509US, INDUCTION AC MOTOR")
 "11985800000 350 HP, 1790 RPM, 440V, LOUIS ALLIS,509US, INDUCTION AC MOTOR")
 "11985800000 350 HP, 1790 RPM, 440V, LOUIS ALLIS,509US, INDUCTION AC MOTOR")
 "11985800000 350 HP, 1790 RPM, 440V, LOUIS ALLIS,509US, INDUCTION AC MOTOR")
| INVENTORY ID | 11985800000 |
| TITLE | 350 HP, 1790 RPM, 440V, LOUIS ALLIS,509US, INDUCTION AC MOTOR |
| HORSEPOWER | 350 |
| SPEED NAMEPLATE | 1,790 |
| VOLTAGE | 440 |
| MANUFACTURER | LOUISALLIS |
| FRAME | 509US |
| ENCLOSURE | TEFC |
| SHAFT | SESS |
| CODE | F |
| TYPE | CJS |
| BEARINGS | A/F |
| SERVICE FACTOR | 1.00 |
| PHASE | 3 |
| FREQUENCY | 60 |
| AMPERAGE | 400 |
| SERIAL NUMBER OR ID NUMBER | 5279122001 |
| WEIGHT | 3,600 |
| DUTY | CONT |
| TEMPERATURE RISE | 80 |
| CAST IRON FRAME | YES |
| LEADS FACING DRIVE END | LEFT |
| SHAFT HEIGHT | 11" |
| DRIVE SHAFT DIAMETER | 2 5/16" |
| DRIVE SHAFT LENGTH | 4 3/4" |
