1250 HP (940 KW) 1690 RPM, 660 VOLT, SIEMENS 788S, INVERTER DUTY AC MOTOR
 "11944700000 1250 HP (940 KW) 1690 RPM, 660 VOLT, SIEMENS 788S, INVERTER DUTY AC MOTOR")
 "11944700000 1250 HP (940 KW) 1690 RPM, 660 VOLT, SIEMENS 788S, INVERTER DUTY AC MOTOR")
 "11944700000 1250 HP (940 KW) 1690 RPM, 660 VOLT, SIEMENS 788S, INVERTER DUTY AC MOTOR")

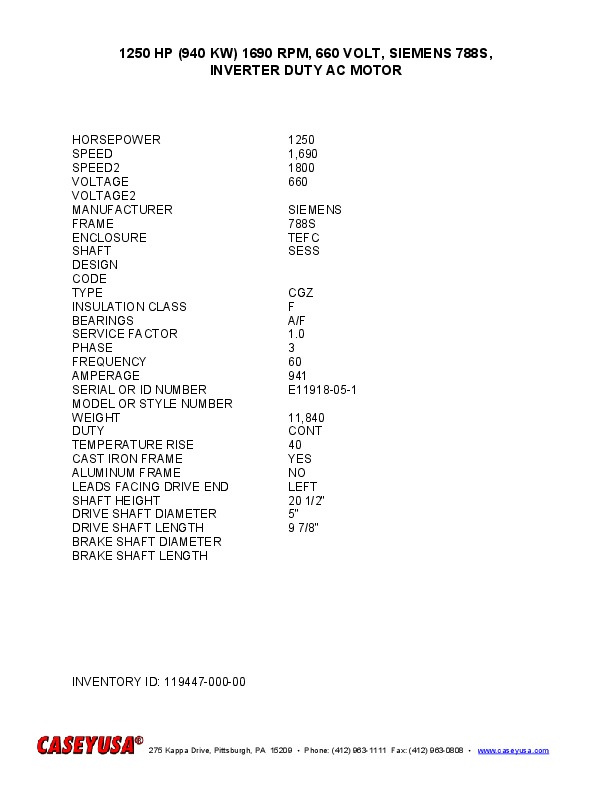

| INVENTORY ID | 11944700000 |
| TITLE | 1250 HP (940 KW) 1690 RPM, 660 VOLT, SIEMENS 788S, INVERTER DUTY AC MOTOR |
| HORSEPOWER | 1250 |
| SPEED | 1,690 |
| SPEED SYNCHRONOUS | 1800 |
| VOLTAGE | 660 |
| MANUFACTURER | SIEMENS |
| FRAME | 788S |
| ENCLOSURE | TEFC |
| SHAFT | SESS |
| TYPE | CGZ |
| INSULATION CLASS | F |
| BEARINGS | A/F |
| SERVICE FACTOR | 1.0 |
| PHASE | 3 |
| FREQUENCY | 60 |
| AMPERAGE | 941 |
| SERIAL NUMBER OR ID NUMBER | E11918-05-1 |
| WEIGHT | 11,840 |
| DUTY | CONT |
| TEMPERATURE RISE | 40 |
| CAST IRON FRAME | YES |
| CAST ALUM FRAME | NO |
| LEADS FACING DRIVE END | LEFT |
| SHAFT HEIGHT | 20 1/2" |
| DRIVE SHAFT DIAMETER | 5" |
| DRIVE SHAFT LENGTH | 9 7/8" |
