(2) 75 HP 20BR096 AND (3) 50 HP SA3100 ALLEN BRADLEY INVERTER DRIVES IN FLOOR MOUNTED ENCLOSURE, $27,500

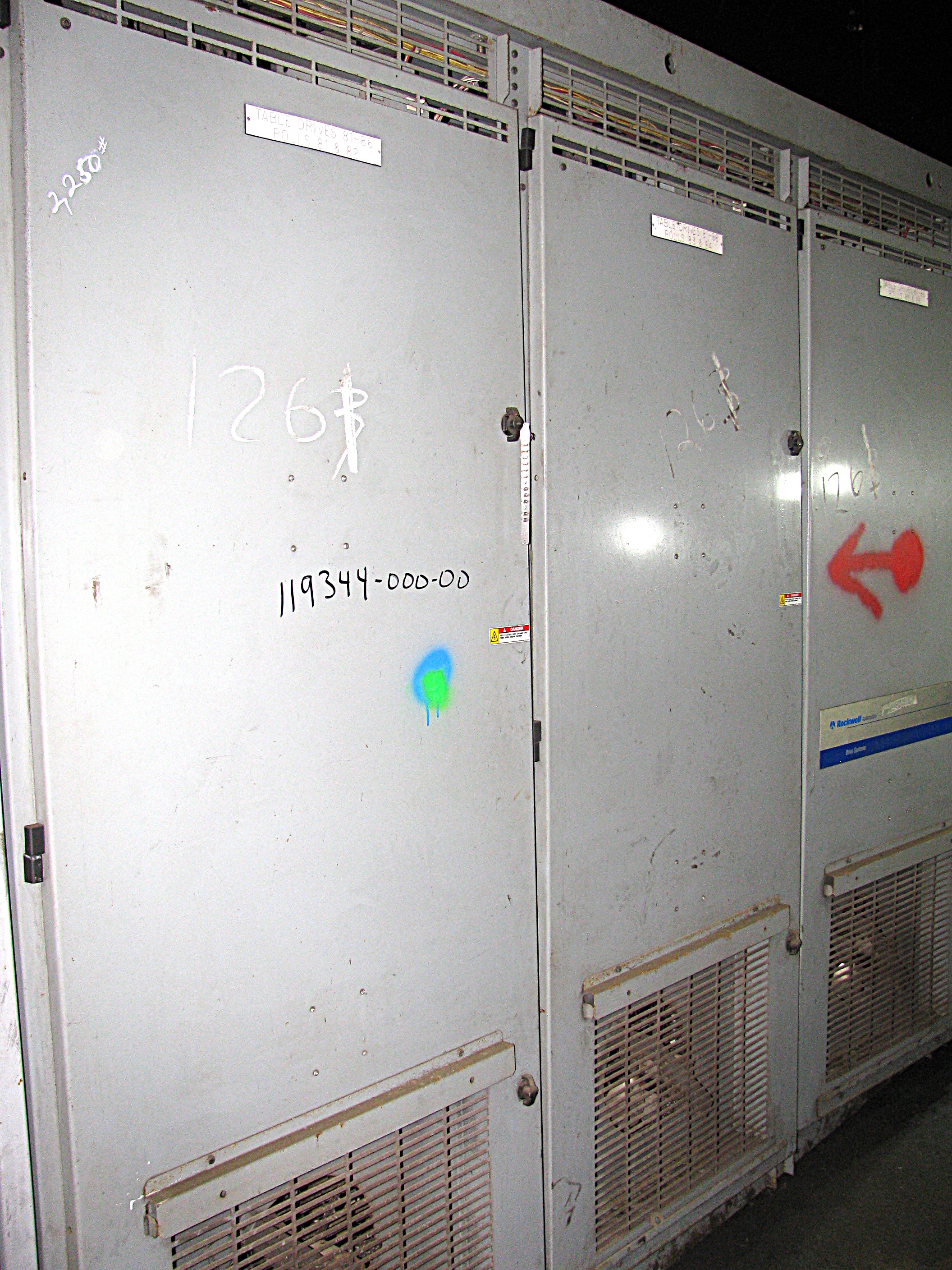

3 DOOR VERTICALS FLOOR MOUNTED ENCLOSED CUBICLE

102‘’ W X 90 ‘’ H X 26 ‘’ D

CUBICLE 1

(1) 50 HP SA3100-R050-AN-L6R ALLEN BRADLEY INVERTER

DC INPUT: 513-690 VOLTS, 85 AMPS

AC OUTPUT: 0-480 VOLTS, 76.2 AMPS, 0-400 HZ, 61 KVA VARIABLE TORQUE

CUBICLE 2

(1) 50 HP SA3100-R050-AN-L6R ALLEN BRADLEY INVERTER

(1) 75 HP 20BR096 A 0 AYNAND0 ALLEN BRADLEY INVERTER

CUBICLE 3

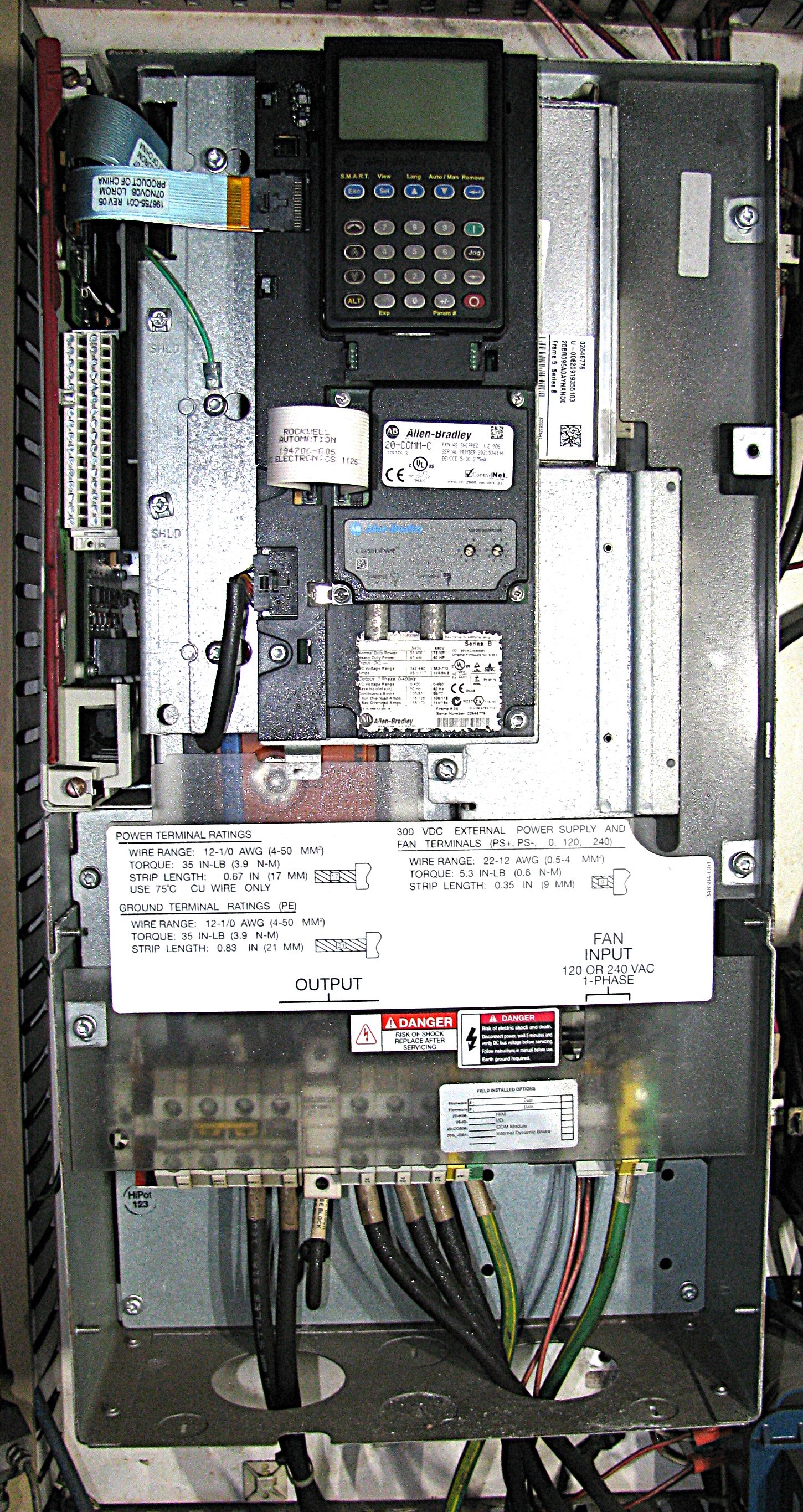

(1) 75 HP 20BR-096-0-AYNAND0 ALLEN BRADLEY INVERTER

DC INPUT: 683-712 VOLTS, 105-84.5 AMPS

AC OUTPUT: 0-480 VOLTS, 90-77 AMPS, 0-400 HZ

(1) 50 HP SA3100-R050-AN-L6R ALLEN BRADLEY INVERTER

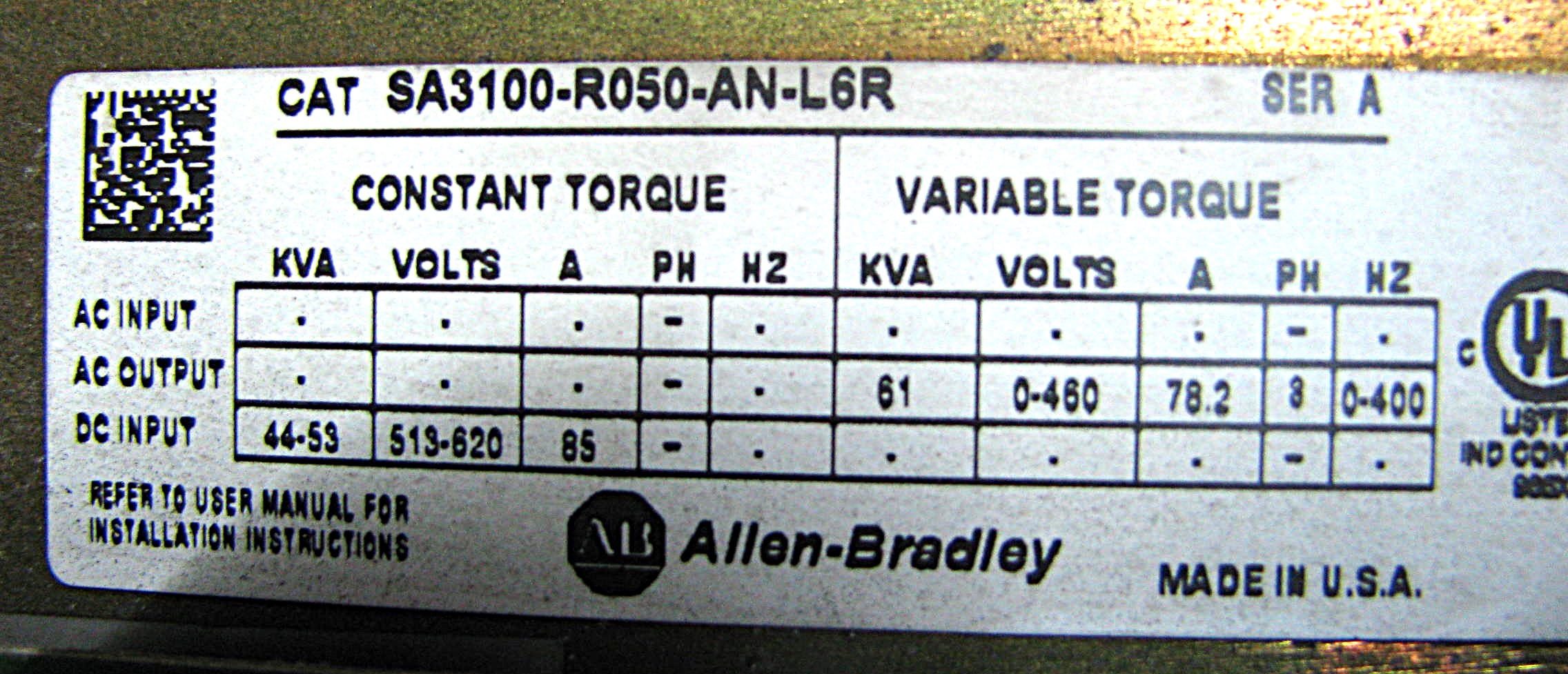

SA 3100 DISTRIBUTED POWER SYSTEM AC DRIVE:

R=620 VOLTS COMMON BUSS

050=60 HP

AN=OPEN ENCLOSURE

L6R 120 VOLTS AC DRIVE I/O RESOLVER FEED BACK

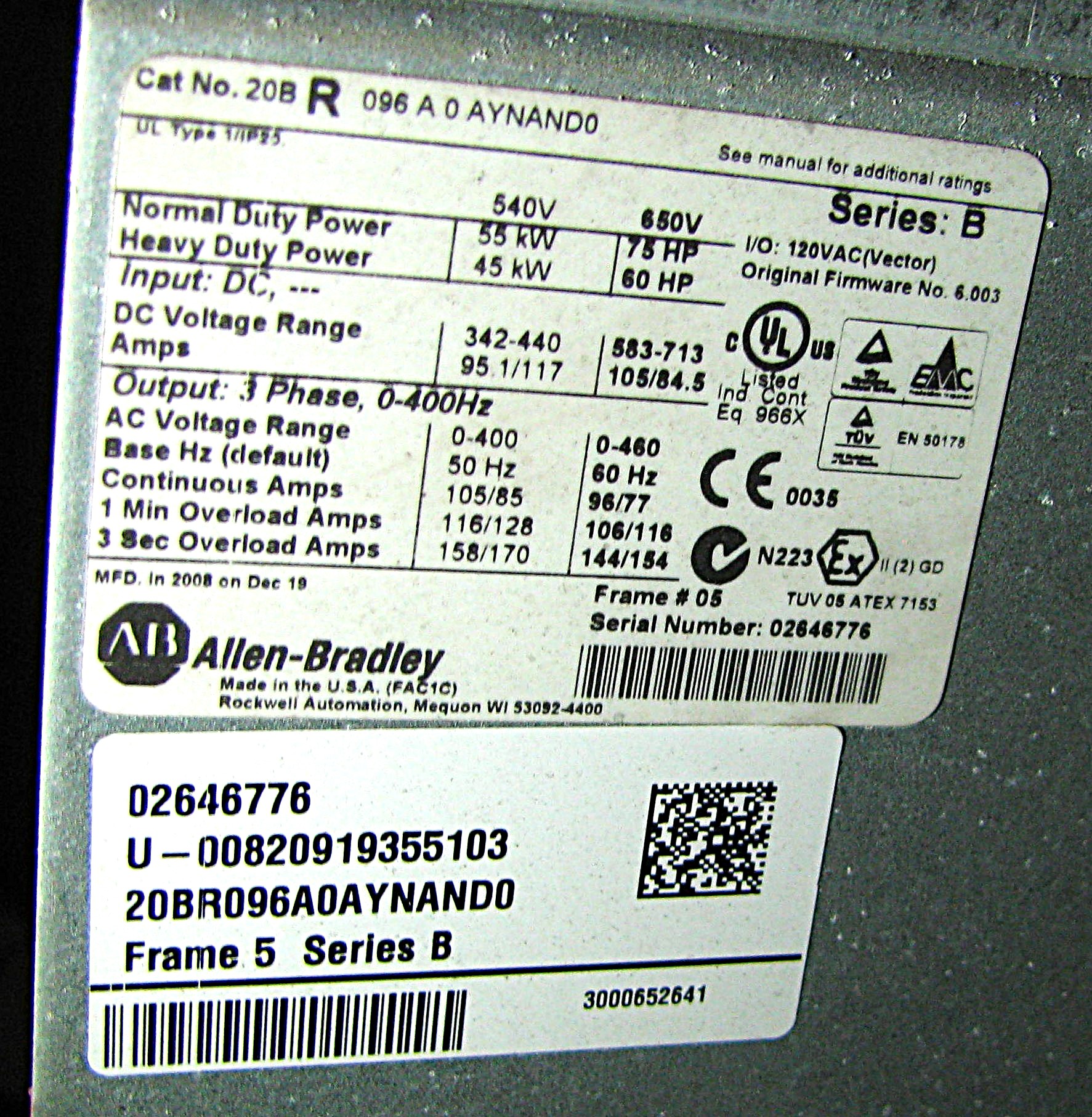

20BR096 INVERTER:

20B=POWER FLEX 700

R=650 VOLTS DC

096=96 AMPS, 75 HP FRAME 5

A=TYPE 1 ENCLOSURE

O=BLANK COVER

A=YES MANUAL WHEN NEW

Y=BRAKE /IGBT

N=NO RESISTOR

A=HAS FILTER AND CHOKE

N=NO COMMON SLOT

D=VECTOR 115 V AC

O=NO FEEDBACK

TAG# 119344-000-00

INVENTORY ID	11934400000
TITLE	(2) 75 HP 20BR096 AND (3) 50 HP SA3100 ALLEN BRADLEY INVERTER DRIVES IN FLOOR MOUNTED ENCLOSURE, $27,500
HP	75HP
MANUFACTURER	ALLEN BRADLEY
TYPE	POWER FLEX
MANUFACTURER	95/117
TYPE	342/440
AC OUTPUT AMPS	85/105
AC OUTPUT VOLTS	0/480
AC OUTPUT HZ	0/400
AMPS: ACB OR FUSED DISCONNECT	FUSED DISCONNECT
# FUSES, AMPS & MFG	3 FUSES 1000 AMPS
LINE REACTOR	1321-3R-80-B
MODULE #	(QTY. 3) 20-BR096-AO-AYNANDO AND (QTY. 2) SA3100-R050-AN-L6R
CONTROL CIRCUIT	YES
ENCLOSURE DIMENSIONS	102W X 90H X 23D
WITH FANS	YES
ON FRONT KEY PAD	YES
WEIGHT	2250 LBS
AGE	2008
CONDITION OF EQUIPMENT	FAIR
COMMENTS ON EQUIPMENT CONDITION	55KW ROCKWELL INVERTER 3 CUBICLES WITH 5 MOUDLES (SEE NOTE FIELD FOR DETAILS) WITH BRAKING AND FILTERING ALL COVERS MISSING FROM ALL DEVICES EXCEPT CENTER BOTTOM WHICH HAS BOTTOM HALF COVER
PRICE	33,750.00
