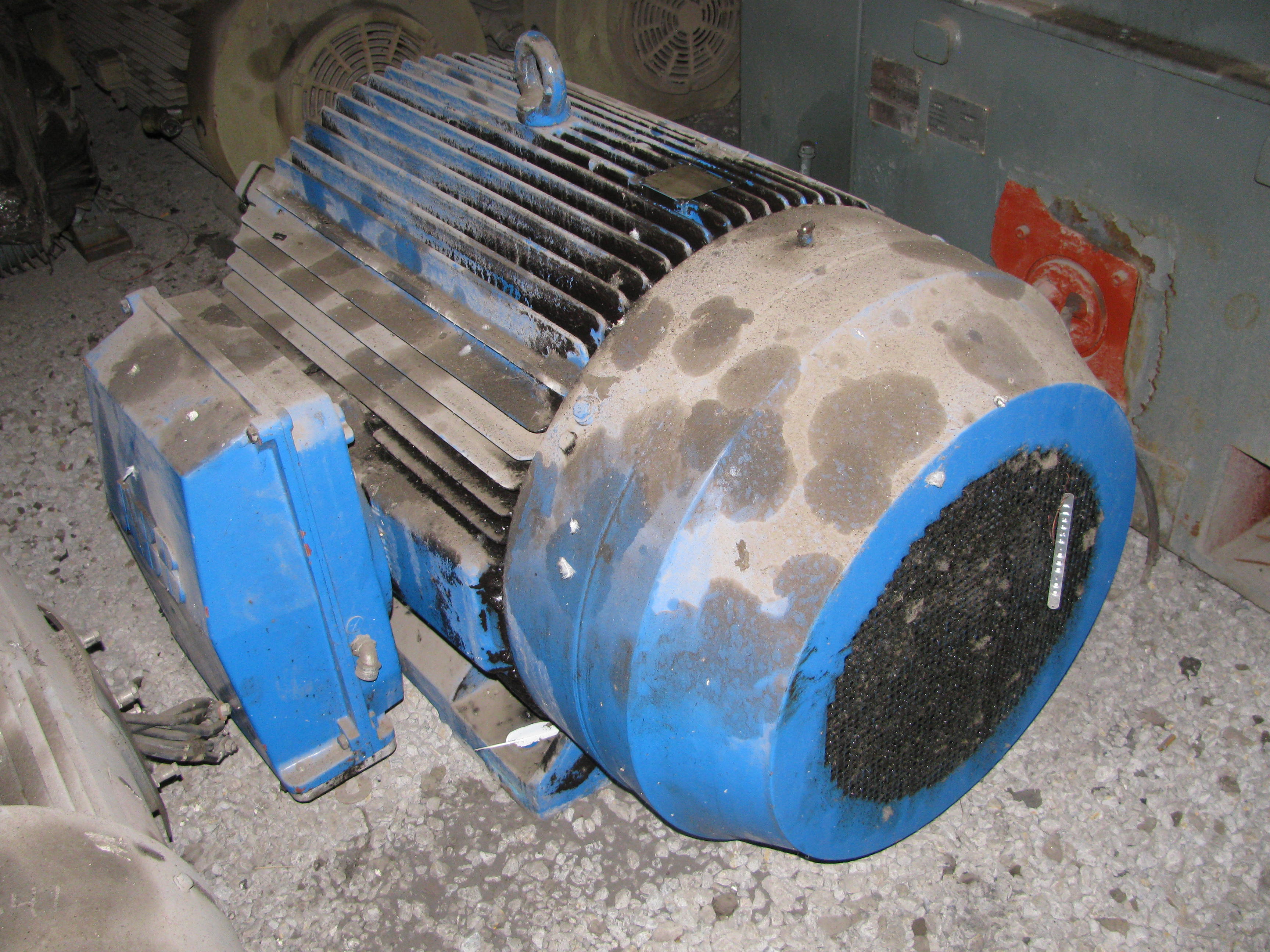

500 HP, 1788 RPM, 460V, ABB, 585, INDUCTION AC MOTOR
 "11892900000 500 HP, 1788 RPM, 460V, ABB, 585, INDUCTION AC MOTOR")
 "11892900000 500 HP, 1788 RPM, 460V, ABB, 585, INDUCTION AC MOTOR")
 "11892900000 500 HP, 1788 RPM, 460V, ABB, 585, INDUCTION AC MOTOR")
 "11892900000 500 HP, 1788 RPM, 460V, ABB, 585, INDUCTION AC MOTOR")
 "11892900000 500 HP, 1788 RPM, 460V, ABB, 585, INDUCTION AC MOTOR")

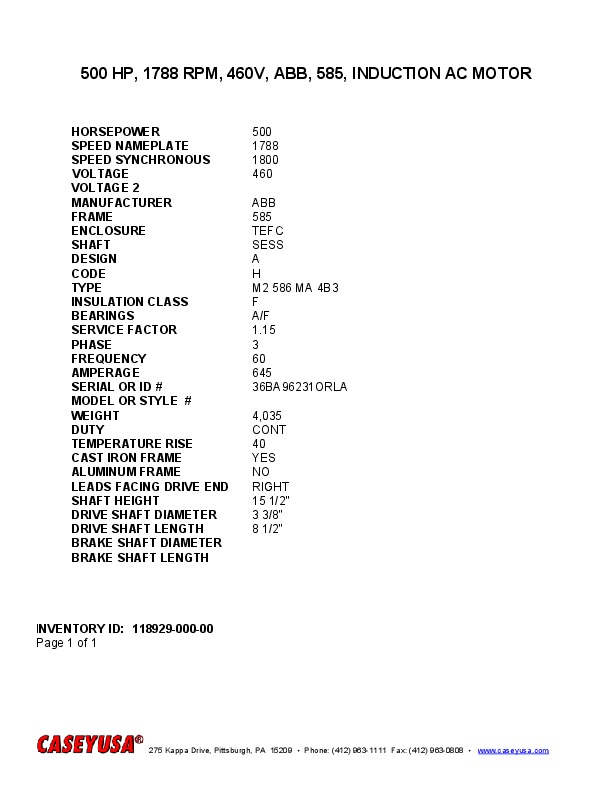

| INVENTORY ID | 11892900000 |
| TITLE | 500 HP, 1788 RPM, 460V, ABB, 585, INDUCTION AC MOTOR |
| HORSEPOWER | 500 |
| SPEED NAMEPLATE | 1788 |
| SPEED SYNCHRONOUS | 1800 |
| VOLTAGE | 460 |
| MANUFACTURER | ABB |
| FRAME | 585 |
| ENCLOSURE | TEFC |
| SHAFT | SESS |
| DESIGN | A |
| CODE | H |
| TYPE | M2 586 MA 4B3 |
| INSULATION CLASS | F |
| BEARINGS | A/F |
| SERVICE FACTOR | 1.15 |
| PHASE | 3 |
| FREQUENCY | 60 |
| AMPERAGE | 645 |
| SERIAL NUMBER OR ID NUMBER | 36BA96231ORLA |
| WEIGHT | 4,035 |
| DUTY | CONT |
| TEMPERATURE RISE | 40 |
| CAST IRON FRAME | YES |
| CAST ALUM FRAME | NO |
| LEADS FACING DRIVE END | RIGHT |
| SHAFT HEIGHT | 15 1/2" |
| DRIVE SHAFT DIAMETER | 3 3/8" |
| DRIVE SHAFT LENGTH | 8 1/2" |
