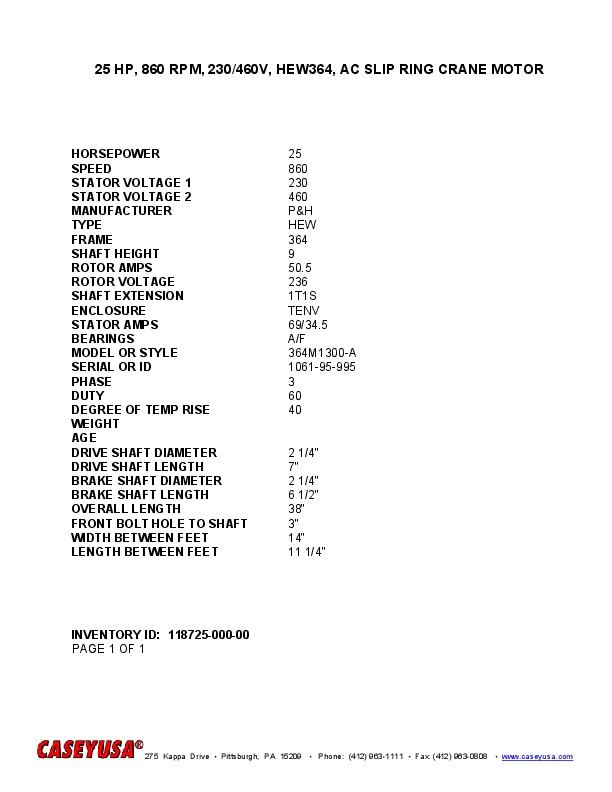

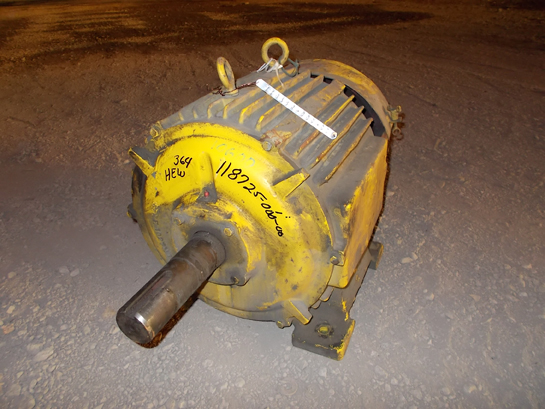

25 HP, 860 RPM, 230/460V, HEW364, AC SLIP RING CRANE MOTOR
 "11872500000 25 HP, 860 RPM, 230/460V, HEW364, AC SLIP RING CRANE MOTOR")
| INVENTORY ID | 11872500000 |
| TITLE | 25 HP, 860 RPM, 230/460V, HEW364, AC SLIP RING CRANE MOTOR |
| HORSEPOWER | 25 |
| SPEED | 860 |
| STATOR VOLTAGE 1 | 230 |
| STATOR VOLTAGE 2 | 460 |
| MANUFACTURER | P&H |
| TYPE | HEW |
| FRAME | 364 |
| SHAFT HEIGHT | 9 |
| ROTOR AMPS | 50.5 |
| ROTOR VOLTS | 236 |
| SHAFT EXTENSION | 1T1S |
| ENCLOSURE | TENV |
| STATOR AMPS | 69/34.5 |
| BEARINGS | A/F |
| MODEL NUMBER OR STYLE NUMBER | 364M1300-A |
| SERIAL NUMBER OR ID NUMBER | 1061-95-995 |
| PHASE | 3 |
| DUTY (MINUTES) | 60 |
| DEGREE OF TEMPERATURE RISE | 40 |
| DRIVE SHAFT DIAMETER | 2 1/4" |
| DRIVE SHAFT LENGTH | 7" |
| BRAKE SHAFT DIAMETER | 2 1/4" |
| BRAKE SHAFT LENGTH | 6 1/2" |
| OVERALL LENGTH | 38" |
| FRONT BOLT HOLE TO SHAFT | 3" |
| WIDTH BETWEEN FEET | 14" |
| LENGTH BETWEEN FEET | 11 1/4" |
