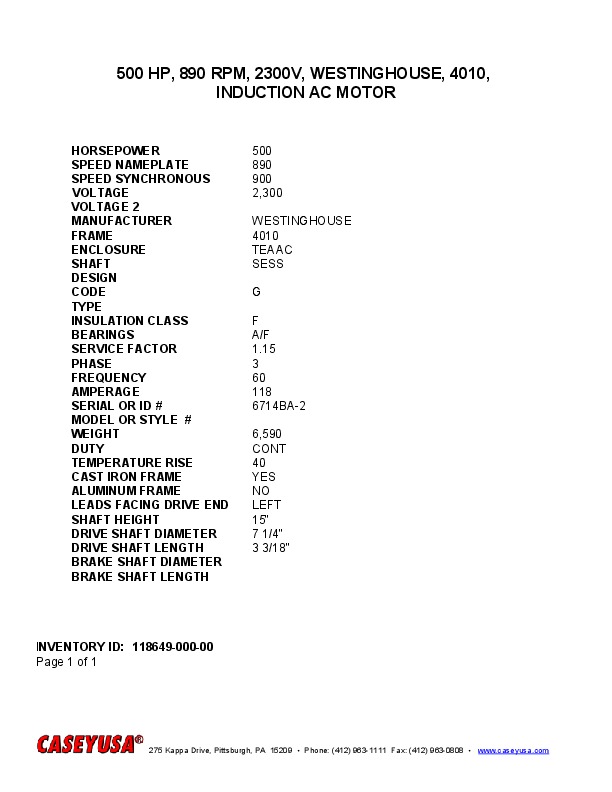

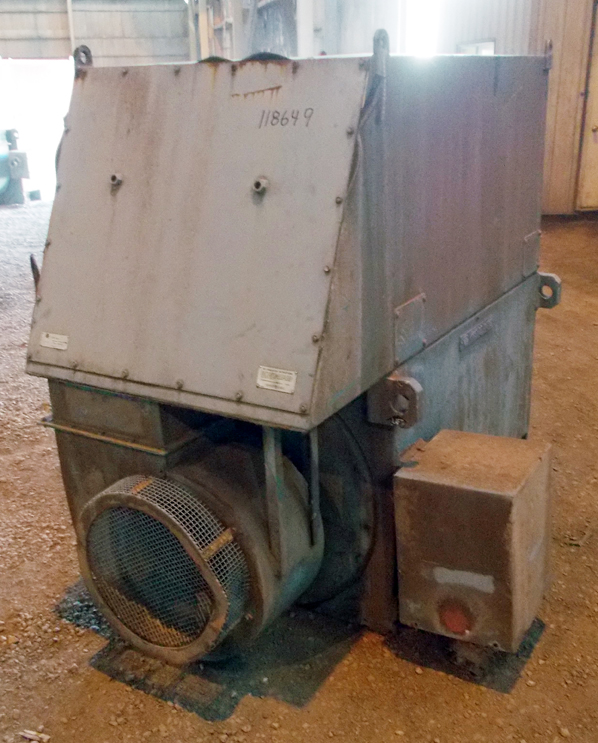

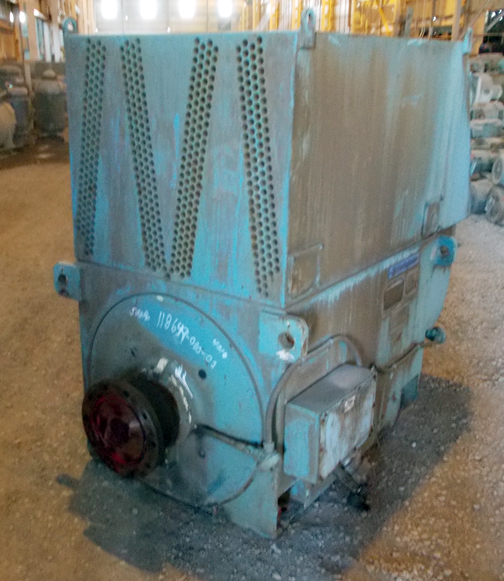

500 HP, 890 RPM, 2300V, WESTINGHOUSE, 4010, INDUCTION AC MOTOR
 "11864900000 500 HP, 890 RPM, 2300V, WESTINGHOUSE, 4010, INDUCTION AC MOTOR")
 "11864900000 500 HP, 890 RPM, 2300V, WESTINGHOUSE, 4010, INDUCTION AC MOTOR")
| INVENTORY ID | 11864900000 |
| TITLE | 500 HP, 890 RPM, 2300V, WESTINGHOUSE, 4010, INDUCTION AC MOTOR |
| HORSEPOWER | 500 |
| SPEED NAMEPLATE | 890 |
| SPEED SYNCHRONOUS | 900 |
| VOLTAGE | 2,300 |
| MANUFACTURER | WESTINGHOUSE |
| FRAME | 4010 |
| ENCLOSURE | TEAAC |
| SHAFT | SESS |
| CODE | G |
| INSULATION CLASS | F |
| BEARINGS | A/F |
| SERVICE FACTOR | 1.15 |
| PHASE | 3 |
| FREQUENCY | 60 |
| AMPERAGE | 118 |
| SERIAL NUMBER OR ID NUMBER | 6714BA-2 |
| WEIGHT | 6,590 |
| DUTY | CONT |
| TEMPERATURE RISE | 40 |
| CAST IRON FRAME | YES |
| CAST ALUM FRAME | NO |
| LEADS FACING DRIVE END | LEFT |
| SHAFT HEIGHT | 15" |
| DRIVE SHAFT DIAMETER | 7 1/4" |
| DRIVE SHAFT LENGTH | 3 3/18" |
