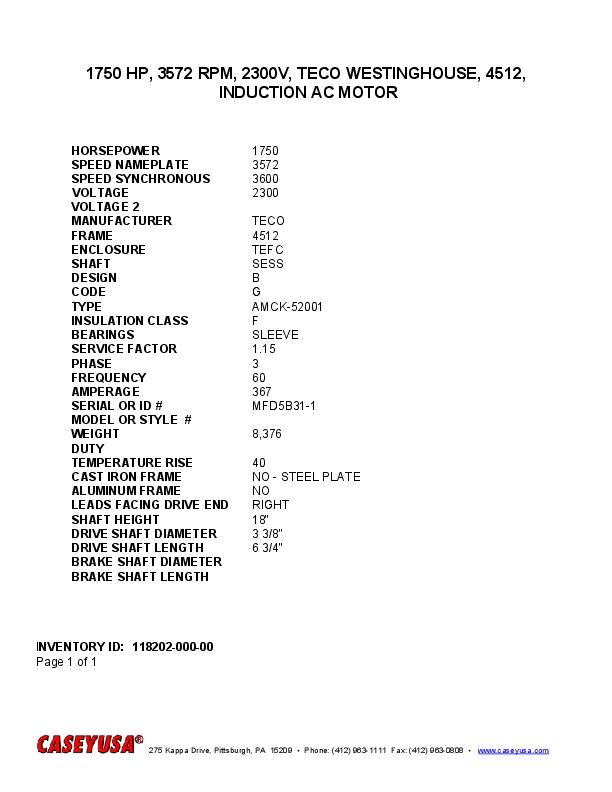

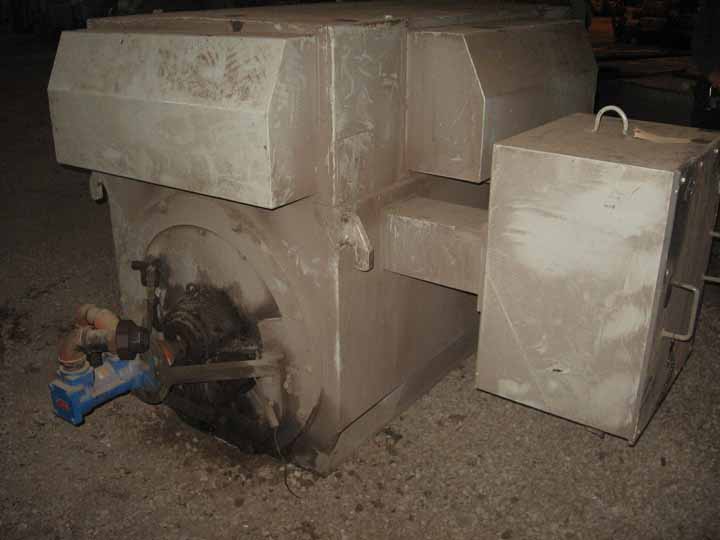

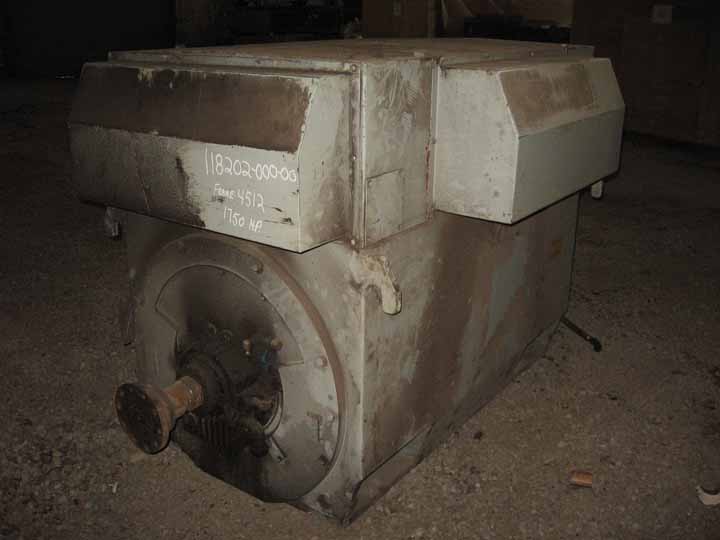

1750 HP, 3572 RPM, 2300V, TECO WESTINGHOUSE, 4512, INDUCTION AC MOTOR
 "11820200000 1750 HP, 3572 RPM, 2300V, TECO WESTINGHOUSE, 4512, INDUCTION AC MOTOR")
 "11820200000 1750 HP, 3572 RPM, 2300V, TECO WESTINGHOUSE, 4512, INDUCTION AC MOTOR")
| INVENTORY ID | 11820200000 |
| TITLE | 1750 HP, 3572 RPM, 2300V, TECO WESTINGHOUSE, 4512, INDUCTION AC MOTOR |
| HORSEPOWER | 1750 |
| SPEED NAMEPLATE | 3572 |
| SPEED SYNCHRONOUS | 3600 |
| VOLTAGE | 2300 |
| MANUFACTURER | TECO |
| FRAME | 4512 |
| ENCLOSURE | TEFC |
| SHAFT | SESS |
| DESIGN | B |
| CODE | G |
| TYPE | AMCK-52001 |
| INSULATION CLASS | F |
| BEARINGS | SLEEVE |
| SERVICE FACTOR | 1.15 |
| PHASE | 3 |
| FREQUENCY | 60 |
| AMPERAGE | 367 |
| SERIAL NUMBER OR ID NUMBER | MFD5B31-1 |
| WEIGHT | 8,376 |
| TEMPERATURE RISE | 40 |
| CAST IRON FRAME | NO - STEEL PLATE |
| CAST ALUM FRAME | NO |
| LEADS FACING DRIVE END | RIGHT |
| SHAFT HEIGHT | 18" |
| DRIVE SHAFT DIAMETER | 3 3/8" |
| DRIVE SHAFT LENGTH | 6 3/4" |
