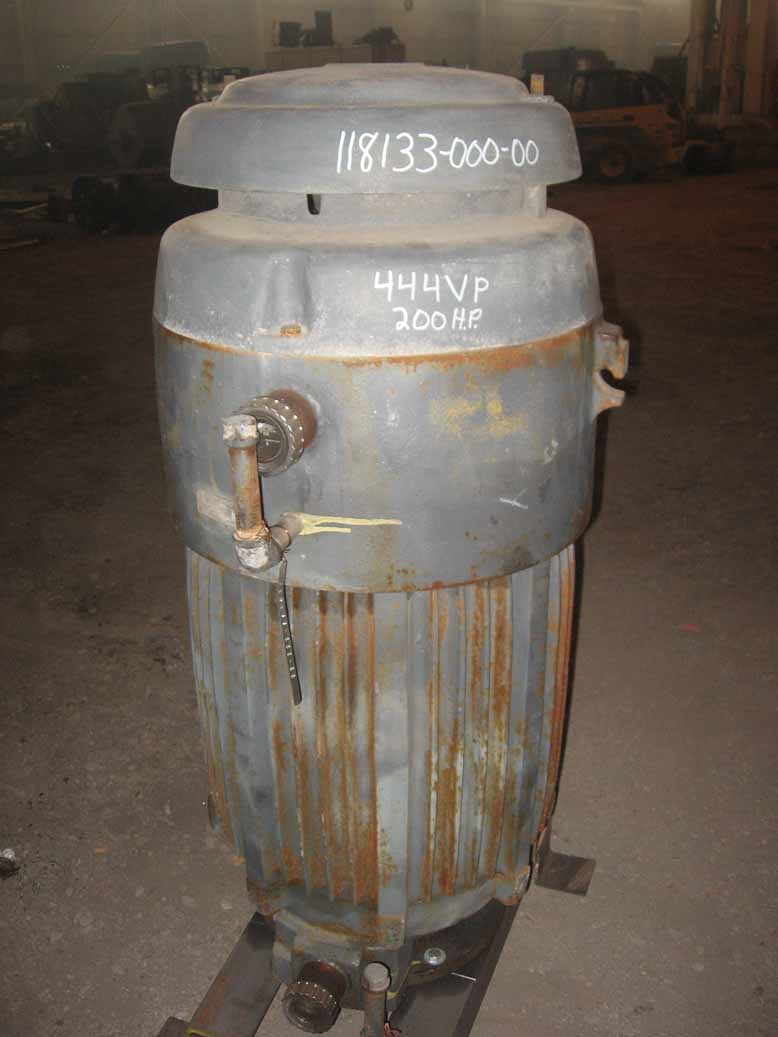

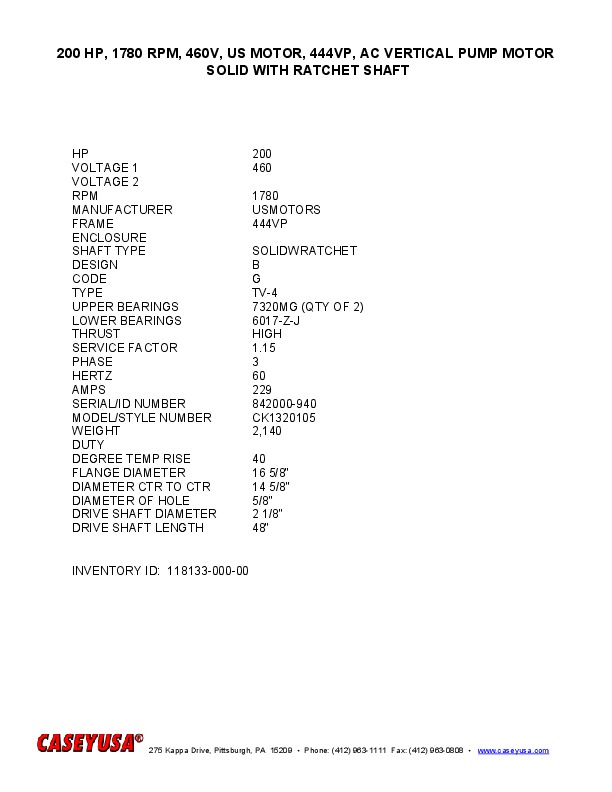

200 HP, 1780 RPM, 460V, US MOTOR, 444VP, AC VERTICAL PUMP MOTOR SOLID WITH RATCHET SHAFT
 "11813300000 200 HP, 1780 RPM, 460V, US MOTOR, 444VP, AC VERTICAL PUMP MOTOR SOLID WITH RATCHET SHAFT")
| INVENTORY ID | 11813300000 |
| TITLE | 200 HP, 1780 RPM, 460V, US MOTOR, 444VP, AC VERTICAL PUMP MOTOR SOLID WITH RATCHET SHAFT |
| HP | 200 |
| RPM | 1780 |
| VOLTAGE 1 | 460 |
| MANUFACTURER | USMOTORS |
| FRAME | 444VP |
| ENCLOSURE | TE |
| SHAFT TYPE | SOLID WITH RATCHET |
| DESIGN | B |
| CODE | G |
| TYPE | TV-4 |
| UPPER BEARINGS | 7320MG (QTY OF 2) |
| LOWER BEARINGS | 6017-Z-J |
| THRUST | HIGH |
| SERVICE FACTOR | 1.15 |
| PHASE | 3 |
| HERTZ | 60 |
| AMPS | 229 |
| SERIAL/ID NUMBER | 842000-940 |
| MODEL/STYLE NUMBER | CK1320105 |
| WEIGHT | 2,140 |
| DEGREE TEMP RISE | 40 |
| FLANGE DIAMETER | 16 5/8" |
| DIAMETER CTR TO CTR | 14 5/8" |
| DIAMETER OF HOLE | 5/8" |
| DRIVE SHAFT DIAMETER | 2 1/8" |
| DRIVE SHAFT LENGTH | 48" |
