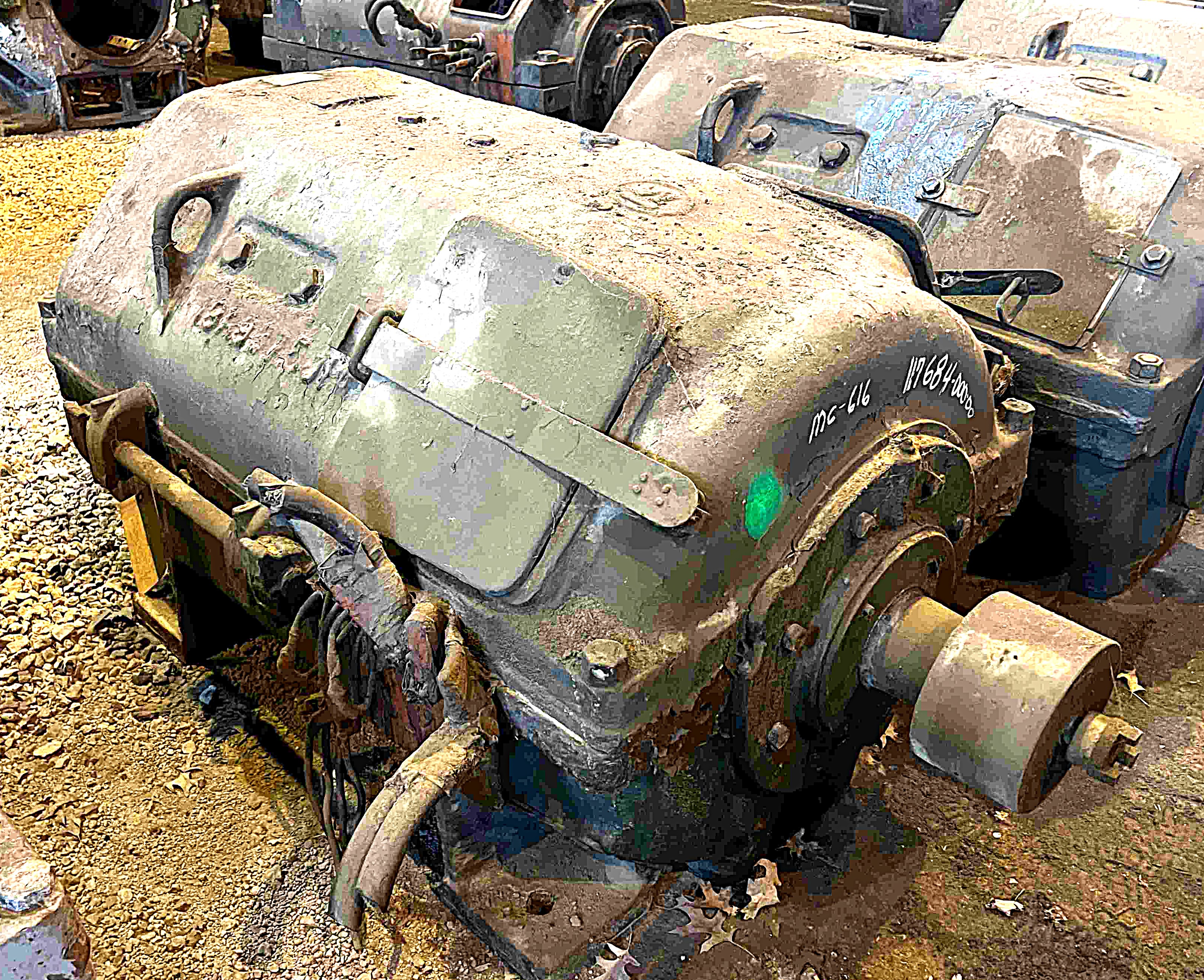

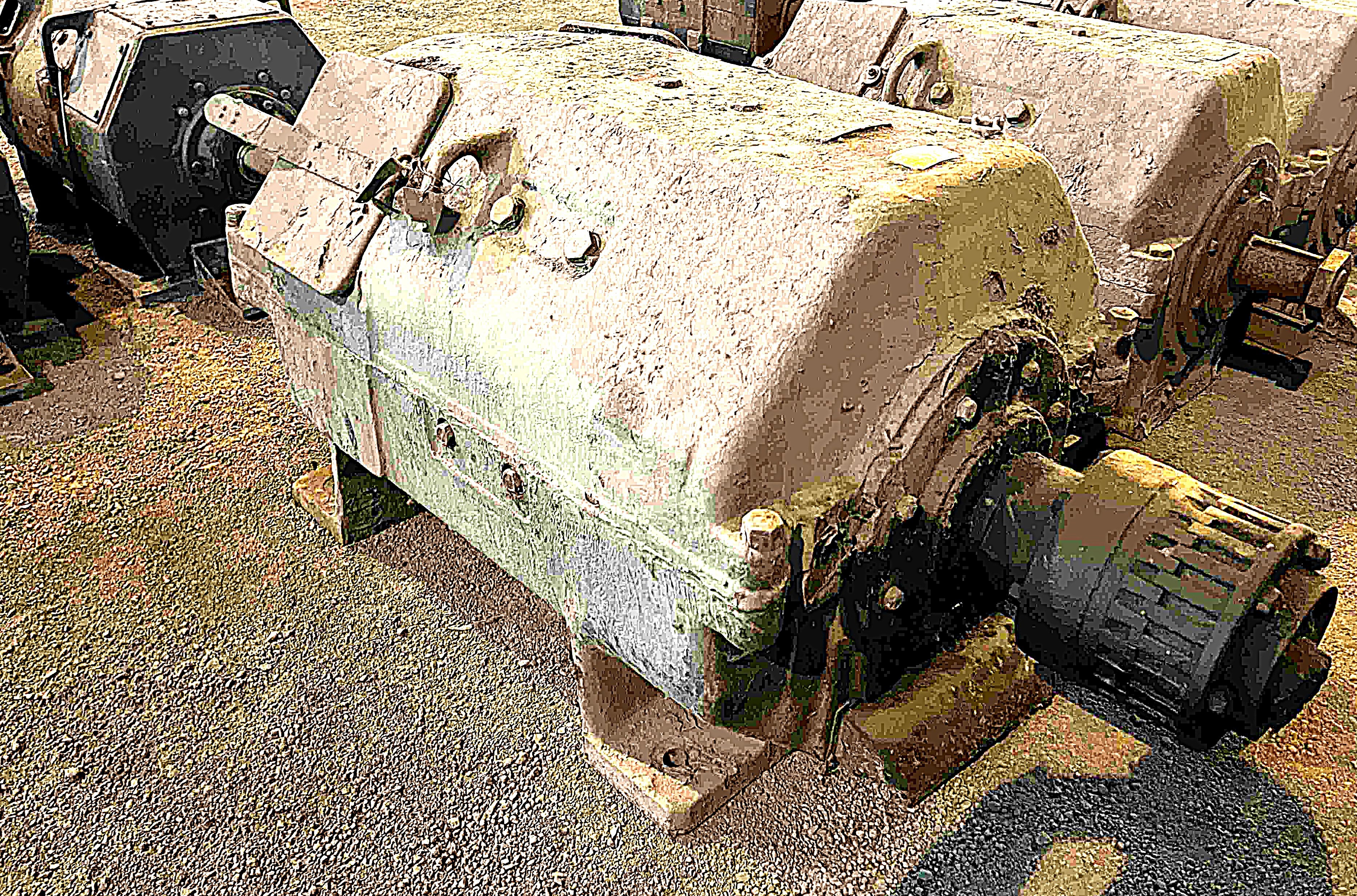

MCT616, 17 HP, 195 RPM, 230 VOLT, WESTINGHOUSE, SHUNT, DC TABLE MOTOR
 "11768400000 MCT616, 17 HP, 195 RPM, 230 VOLT, WESTINGHOUSE, SHUNT, DC TABLE MOTOR")
 "11768400000 MCT616, 17 HP, 195 RPM, 230 VOLT, WESTINGHOUSE, SHUNT, DC TABLE MOTOR")
 "11768400000 MCT616, 17 HP, 195 RPM, 230 VOLT, WESTINGHOUSE, SHUNT, DC TABLE MOTOR")

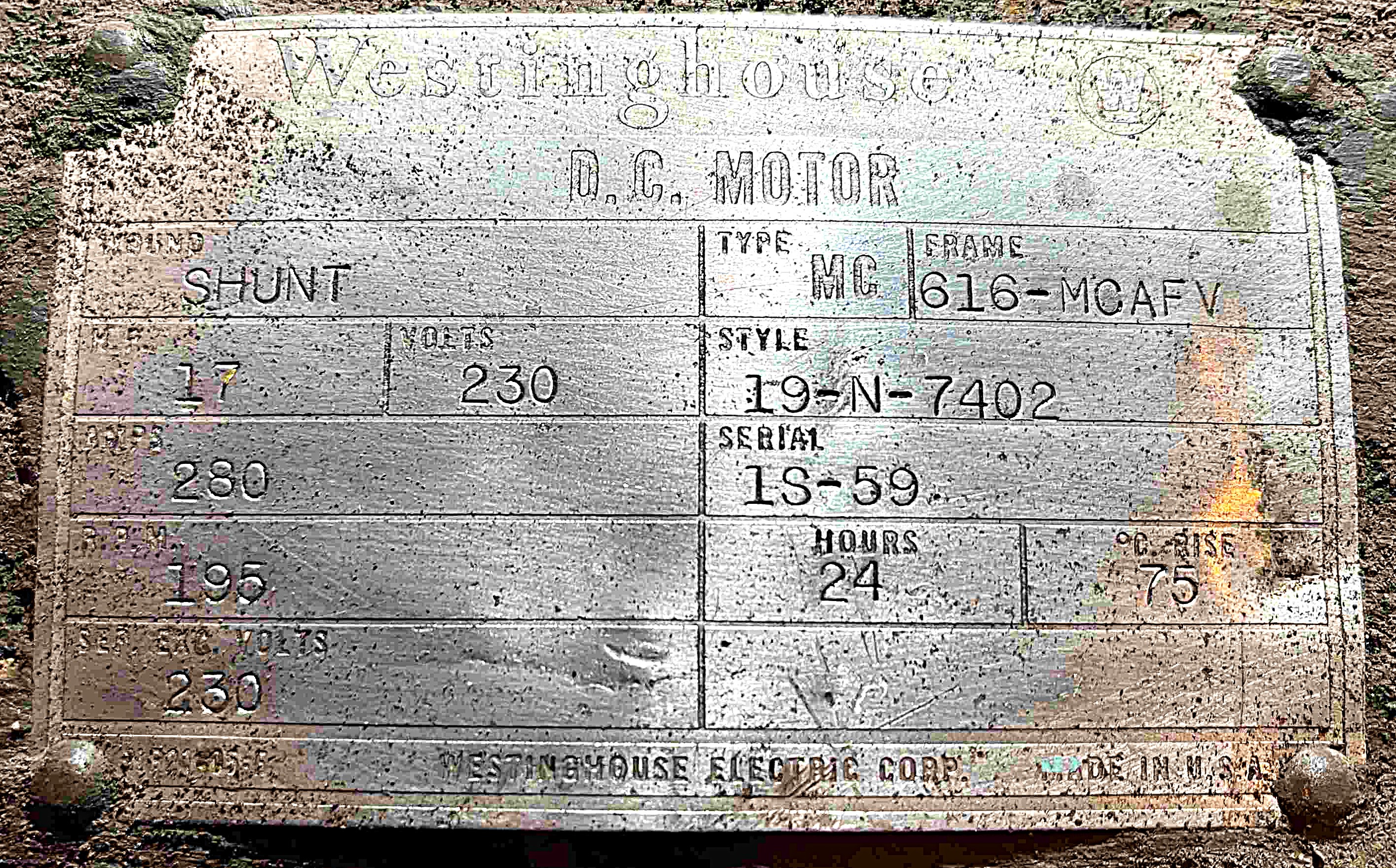

| INVENTORY ID | 11768400000 |
| TITLE | MCT616, 17 HP, 195 RPM, 230 VOLT, WESTINGHOUSE, SHUNT, DC TABLE MOTOR |
| HORSEPOWER | 17 |
| SPEED | 195 |
| TYPE | MCT |
| FRAME | 616 |
| VOLTAGE | 230 |
| MANUFACTURER | WESTINGHOUSE |
| WINDING | SHUNT |
| FIELD VOLTAGE | 230 |
| ENCLOSURE | TEFV |
| FIELD OHMS | 17.4 |
| SHAFT EXTENSION | DETS |
| MODEL NUMBER OR STYLE NUMBER | 19-N-7402 |
| SERIAL NUMBER OR ID NUMBER | 1S-59 |
| AMPS | 280 |
| DUTY | CONT |
| BEARINGS | A/F |
| DEGREE OF TEMPERATURE RISE | 75 |
| WEIGHT | 6,080 |
| DRIVE SHAFT DIMENSION | 4 5/8" |
| DRIVE SHAFT LENGTH | 5 1/4" |
| BRAKE SHAFT DIAMETER | 4 5/8" |
| BRAKE SHAFT LENGTH | 5 1/4" |
| SHAFT HEIGHT | 16" |
| SHAFT LENGTH | 67 1/2" |
| WIDTH BETWEEN FEET | 27" |
| LENGTH BETWEEN FEET | 35" |
