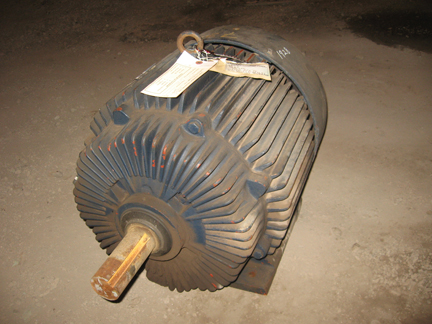

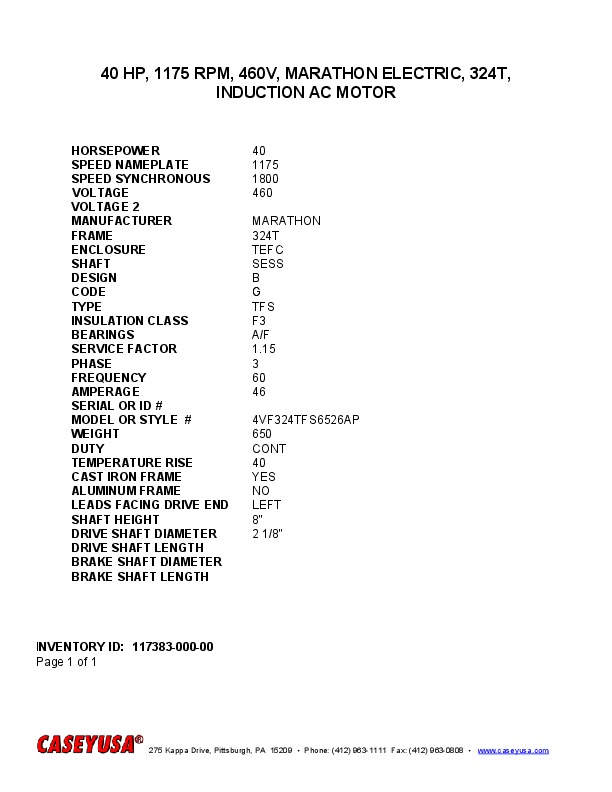

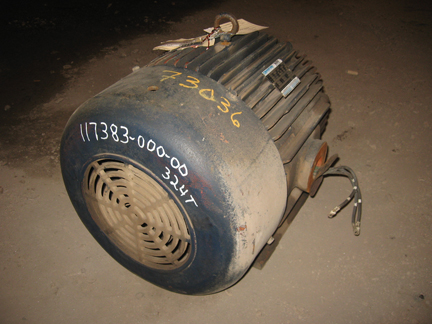

40 HP, 1175 RPM, 460V, MARATHON ELECTRIC, 324T, INDUCTION AC MOTOR
 "11738300000 40 HP, 1175 RPM, 460V, MARATHON ELECTRIC, 324T, INDUCTION AC MOTOR")
 "11738300000 40 HP, 1175 RPM, 460V, MARATHON ELECTRIC, 324T, INDUCTION AC MOTOR")
| INVENTORY ID | 11738300000 |
| TITLE | 40 HP, 1175 RPM, 460V, MARATHON ELECTRIC, 324T, INDUCTION AC MOTOR |
| HORSEPOWER | 40 |
| SPEED NAMEPLATE | 1175 |
| SPEED SYNCHRONOUS | 1800 |
| VOLTAGE | 460 |
| MANUFACTURER | MARATHON |
| FRAME | 324T |
| ENCLOSURE | TEFC |
| SHAFT | SESS |
| DESIGN | B |
| CODE | G |
| TYPE | TFS |
| INSULATION CLASS | F3 |
| BEARINGS | A/F |
| SERVICE FACTOR | 1.15 |
| PHASE | 3 |
| FREQUENCY | 60 |
| AMPERAGE | 46 |
| MODEL NUMBER OR STYLE NUMBER | 4VF324TFS6526AP |
| WEIGHT | 650 |
| DUTY | CONT |
| TEMPERATURE RISE | 40 |
| CAST IRON FRAME | YES |
| CAST ALUM FRAME | NO |
| LEADS FACING DRIVE END | LEFT |
| SHAFT HEIGHT | 8" |
| DRIVE SHAFT DIAMETER | 2 1/8" |
